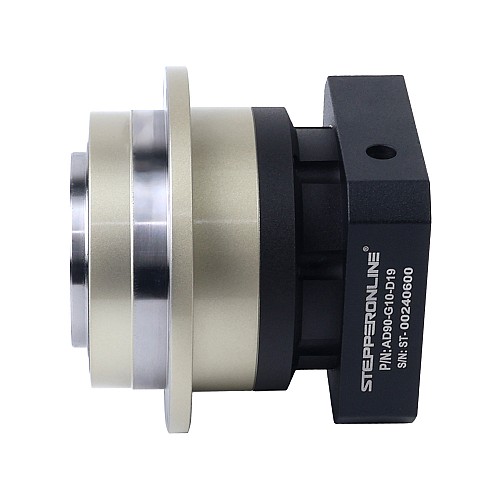

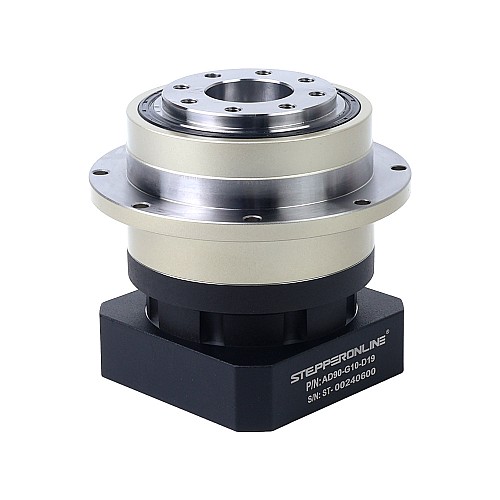

AD Series 90mm 10:1 Helical Planetary Gearbox Backlash 3arcmin for Servo Motors IP65

0 reviews - Write a review

C$223.23

5 + C$209.70

10 + C$197.71

50 + C$187.03

100 + C$177.44

In Stock: 10000
Model: AD90-G10-D19
Gross Weight: 3.59kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

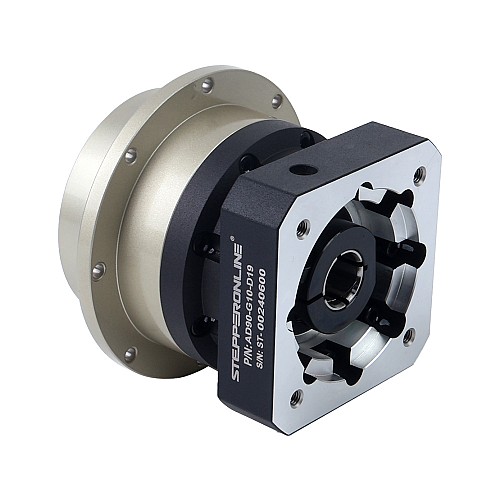

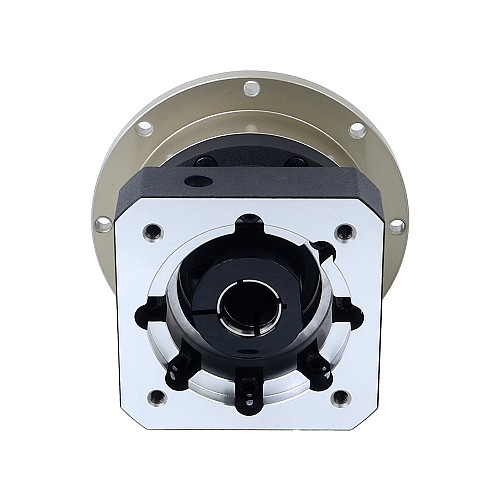

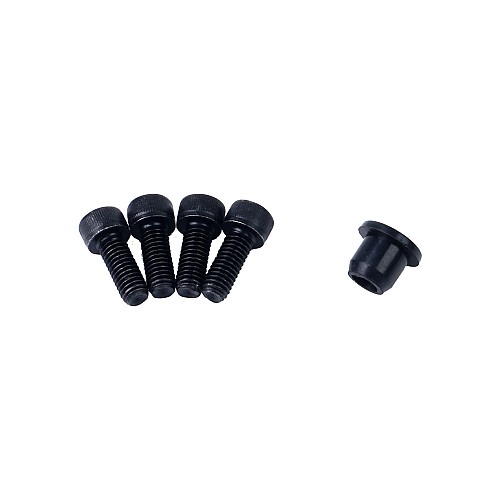

This helical planetary gearbox offers a gear ratio of 10:1 with a backlash of 3arcmin. It is designed for servo motors with a size of 80mm and an input shaft diameter of 19mm and is supplied with a flange so that your motor can be easily connected directly to the output.
This gearbox is designed for harsh environments with a high protection rating of IP65 and features helical gearing for smooth, quiet operation with high torque and accuracy. In addition, the design offers high load capacity for demanding applications like automated production lines, packaging machines, textile machines, etc.

Gearbox Specifications

Part Number: AD90-G10-D19
Gearbox Type: Helical Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 97%
Backlash at No-load: 3arc-min
Rated Input Speed: 3000rpm
Maximum Input Speed: 6000rpm
Max.Permissible Torque: 50Nm(442.54lb-in)
Moment Permissible Torque: 200Nm(1770.15lb-in)
Shaft Maximum Axial Load: 2850N
Maximum Bending Moment: 235N
Waterproof Rating: IP65
Lifetime: 20000hours

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 109mm

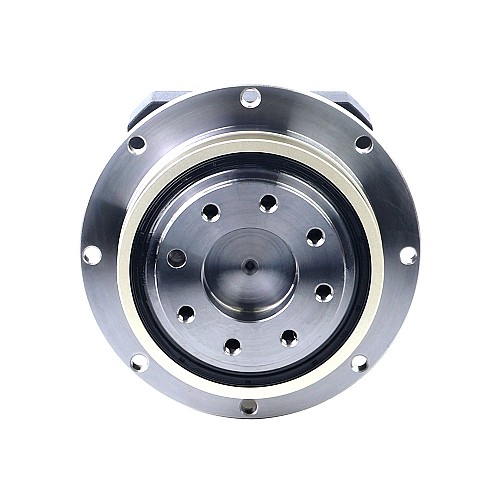

Output Flange Diameter: Φ63mm
Input Shaft Diameter: Φ19mm
Input Shaft Length: Max. 45mm

Physical Specification
Backlash at No-load	3arcmin
Frame Size(mm)	90 x 90
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Length(mm)	109
Gearbox Type	Helical Planetary
Input Shaft Diameter(mm)	19
Input Shaft Length(mm)	45
Inventory Method	Dedicated Inventory
Matching Motor Size	Frame 80 Servo Motor
Product Series	AD
