Dual Shaft Nema 17 Unipolar 0.9deg 16Ncm(22.66oz.in) 0.3A 42x42x34mm 6 Wires

0 reviews - Write a review

C$14.00

5 + C$13.33

10 + C$12.74

50 + C$12.20

100 + C$11.69

In Stock: Pre-order
Model: 17HM13-0316D
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

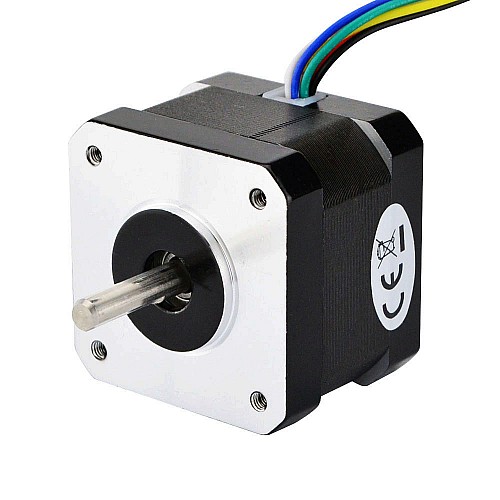

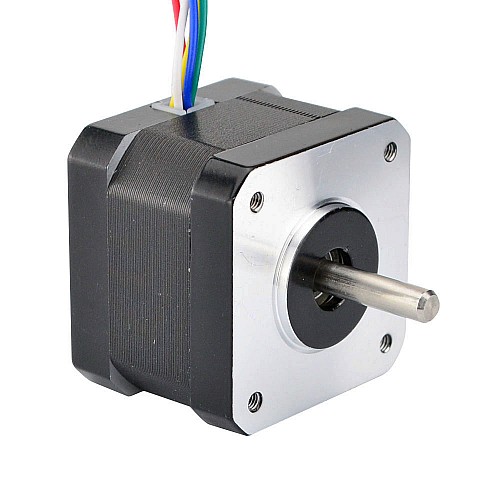

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x34mm. It has 6 wires, each phase draws current 0.31A at 12V, with holding torque 16Ncm(22.66oz.in). A rear shaft is available.

Electrical Specification

Manufacturer Part Number: 17HM13-0316D
Motor Type: Unipolar Stepper
Step Angle: 0.9deg
Holding Torque: 16Ncm(22.66oz.in)/23Ncm(31.8oz.in)
Rated Current/phase: 0.31A/0.22A
Phase Resistance: 38.5ohms/77.0ohms
Inductance: 36mH±20%(1KHz)/144mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Front Shaft Length: 20mm
D-cut Length: 15mm

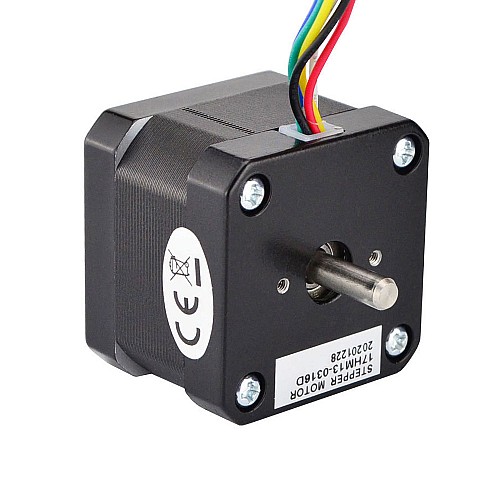

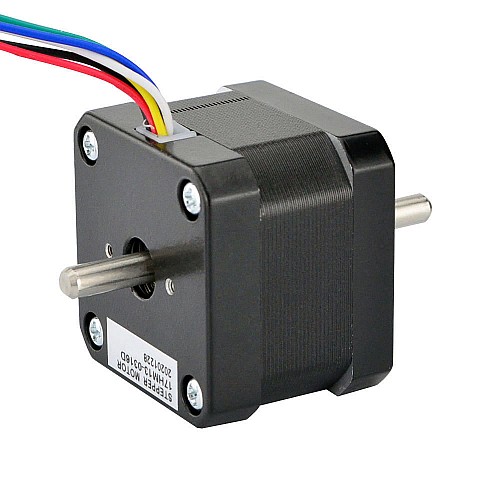

Rear Shaft Length: 13mm
Number of Leads: 6
Lead Length: 500mm
Weight: 280g

Connection

Bipolar

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	16
Holding Torque(oz.in)	22.66
Inductance(mH)	36
Phase Resistance(ohms)	35.8
Rated Current(A)	0.31
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	6
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	280
