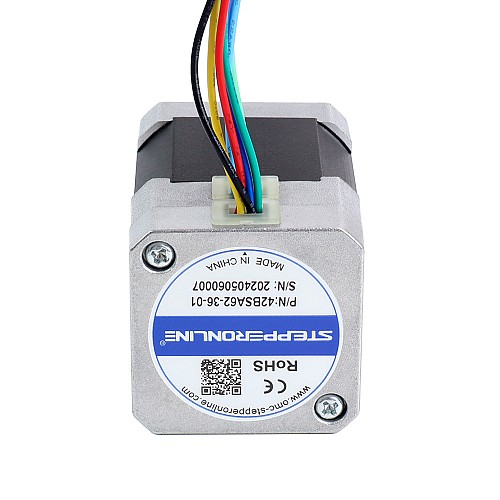

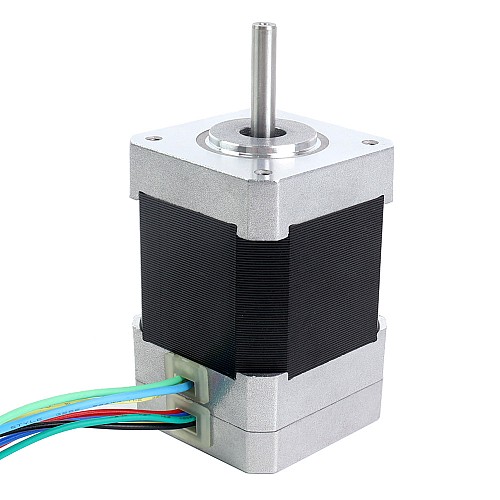

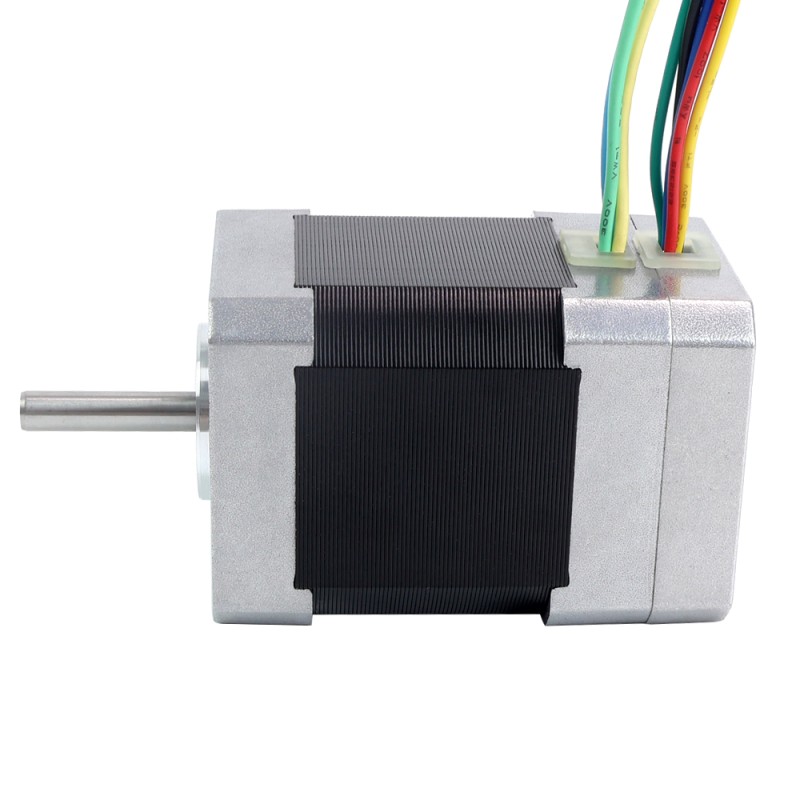

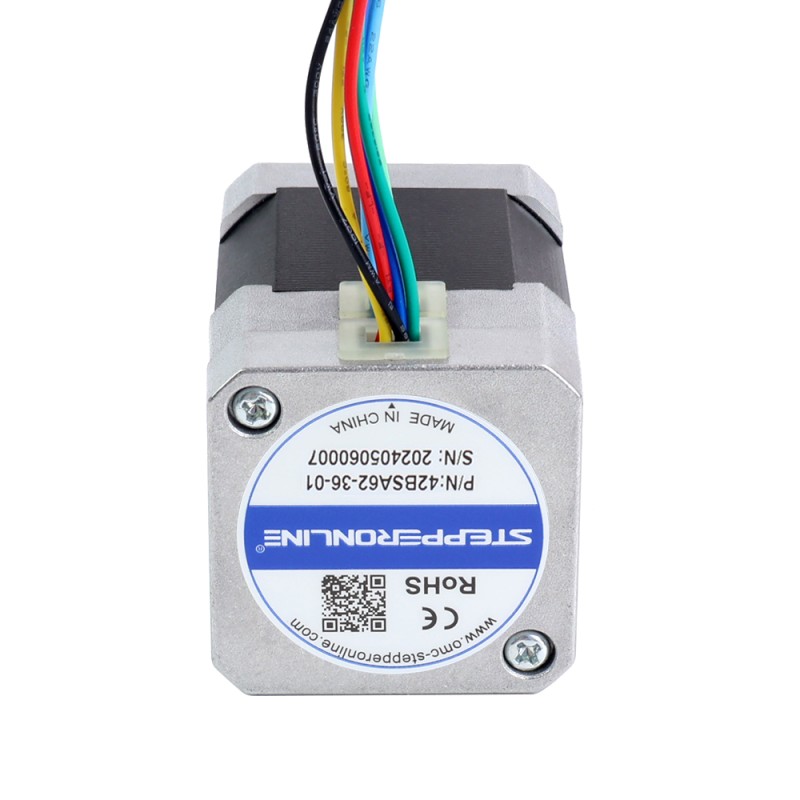

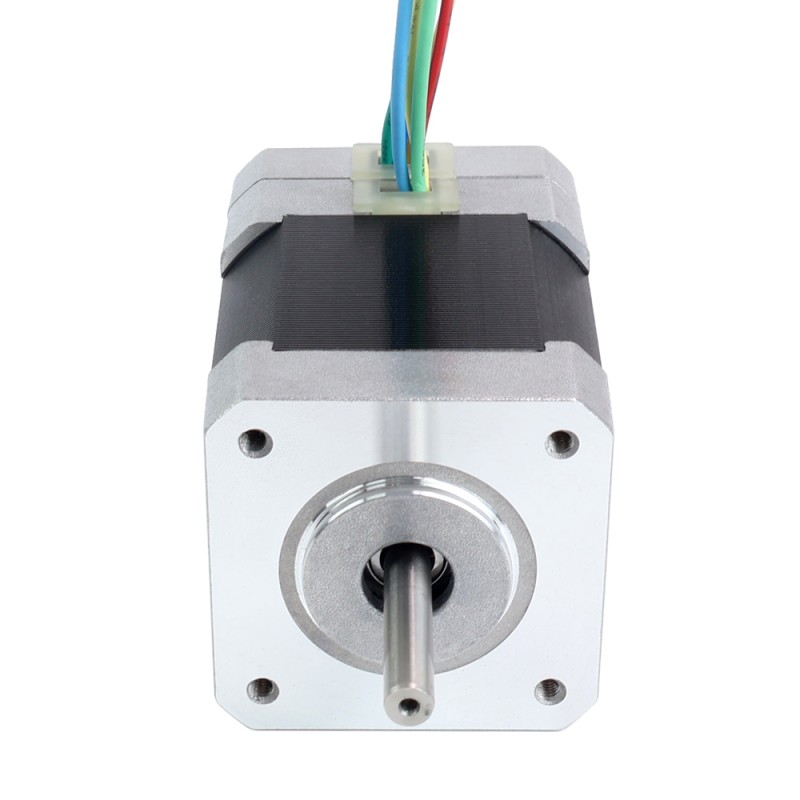

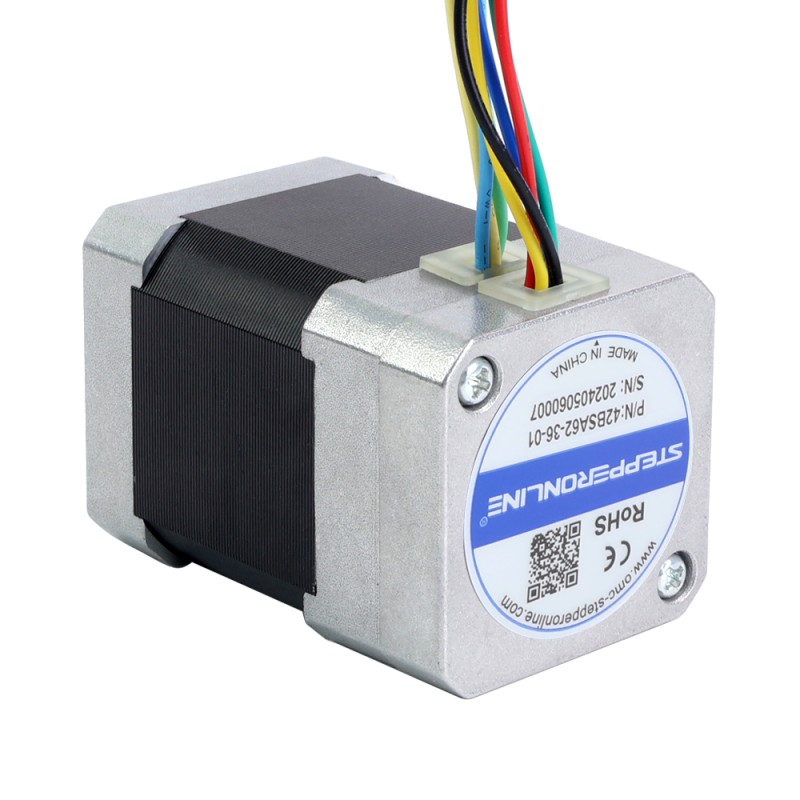

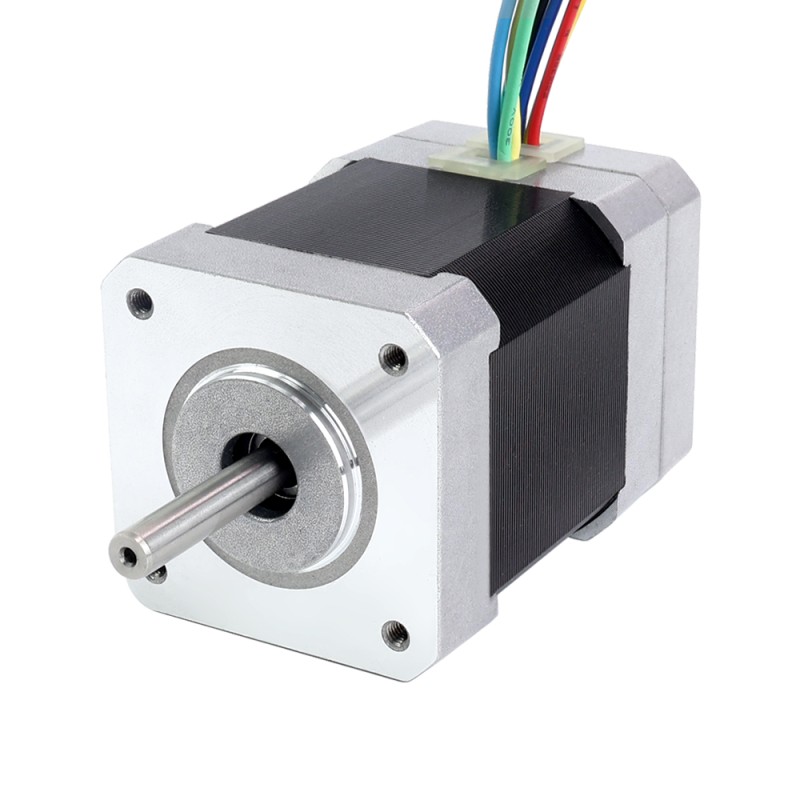

36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor

36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor - 42BSA62-36-01 | StepperOnline CA
42BSA62-36-01
Output Shaft TypeO
Shaft Diameter(mm)5
Shaft Length(mm)24
Rated Voltage(V)36
Question

Downloads

42BSA62-36-01 Full DatasheetPDF · 117.98KB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)PriceStock
36BLR65-24-01 DiscontinuedO41524—
42BLR43-24-01O52024C$28.81Backorder
42BLS40-24-01O52024C$24.88In stock
42BLS60-24-01O52024C$31.08In stock
42BSA46-24-01O52424C$23.04In stock
42BSA62-24-01O52424C$25.92In stock
42BSA62-36-01O52436C$25.92In stock
42BSA78-24-01O52424C$34.56In stock
42BSA78-48-01O52448C$34.56In stock
42BSB101-24-01O52024C$31.68In stock
42BSB101-48-01O52048C$31.68In stock
42BSB41-24-01O52024C$20.16In stock
42BSB61-24-01O52024C$23.04In stock
42BSB61-48-01O52048C$23.04In stock
42BSB81-24-01O52024C$28.80In stock
42BSB81-48-01O52048C$28.80In stock
42BYA43-24-01O52024C$21.60In stock
42BYA51-24-01O52024C$24.48In stock
42BYA73-24-01O52024C$34.56In stock
57BLR110-36-01O82536C$52.37In stock
57BLR50-24-01O82524C$32.20In stock
57BLR50-36-01D82536C$32.20In stock
57BLR70-24-02O82524C$45.76In stock
57BLR70-36-01O82536C$37.29In stock
57BLY54-24-01O82124C$27.12In stock
57BSA100-36-01D82136C$63.36In stock
57BSA100-48-01D82148C$63.36In stock
57BSA58-24-01D82124C$31.68In stock
57BSA79-36-01D82136C$46.08In stock
57BSD116-36-01D82136C$41.76In stock
View all in category
36V 3000RPM 0.16Nm 50W 2.20A 42x42x62mm Brushless DC Motor
This is a 36V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and t... Read More
0 reviews • Write a review
from
C$25.92
5 + C$25.16
10 + C$24.45
50 + C$23.77
100 + C$23.14

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 36V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.16Nm(22.66oz.in).
42BSA series brushless motors are high-performance motors with square body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

  • Manufacturer Part Number: 42BSA62-36-01
  • Phase: 3
  • Poles: 8
  • Rated Voltage: 36V
  • Rated Torque: 0.16Nm(22.66oz.in)
  • Rated Power: 50W
  • Rated Speed: 3000±10%RPM
  • Rated Current: 2.20A
  • No-load Speed: 3900±10%RPM
  • Resistance/phase: 3.10±10%Ohms
  • Inductance/phase: 1.50±20%mH
  • BACK EMF: 6.63±5%V/krpm
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 62mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Shaft Type: Round
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 0.43kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 2.2
Rated Power(W) 50
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.16
Rated Voltage(V) 36
Physical Specification
Body Length(mm) 62
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 20
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 24
With Gearbox No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
This 12V-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial autom..
from
C$28.80
Add to Cart
Add to Wish List Compare this Product
Quickview
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 20arc-min for Nema 17 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 20arc-min for Nema 17 Stepper Motor
This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 100:1 and a maximum 20arc-min backlash. It's an excellent cho..
from
C$52.72
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushless DC Motor Controller DBLC-01
Brushless DC Motor Controller DBLC-01
Function of control box 1. Display speed. It can display the real time rotation speed of the motor. 2. Start/Stop button on the panel to control the..
from
C$16.95
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W
Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W
This is a brushless motor driver with an input voltage of 12-24VDC and maximun power of 120W. Compared with BLD-405S, BLD-305S is more cost-effective ..
from
C$23.06
Add to Cart
Add to Wish List Compare this Product
Quickview

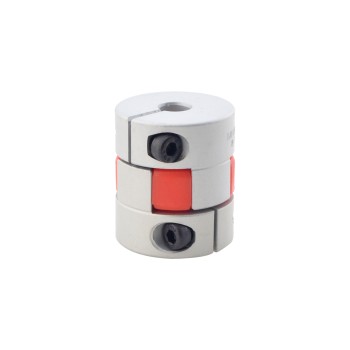

8mm - 14mm Flexible Jaw Coupling 30x35mm CNC Stepper Motor Shaft Coupler
8mm - 14mm Flexible Jaw Coupling 30x35mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MH3035-8-14 Type: Jaw Type Rated Torque: 6.5Nm(919.29oz.in) Max. Torque: 13Nm(1840.52oz.in) Max...
from
C$5.97
Add to Cart
Add to Wish List Compare this Product
Quickview
50:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
50:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86mm size motor, the output shaft is offset by 90° from the drive shaft. The adv..
from
C$60.68
Add to Cart
Add to Wish List Compare this Product
Quickview
24V 3000RPM 0.16Nm 50W 3.30A 42x42x62mm Brushless DC Motor
24V 3000RPM 0.16Nm 50W 3.30A 42x42x62mm Brushless DC Motor
This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.16Nm(22.66oz.in). 42BSA series brushl..
from
C$25.92
Add to Cart
Add to Wish List Compare this Product
Quickview

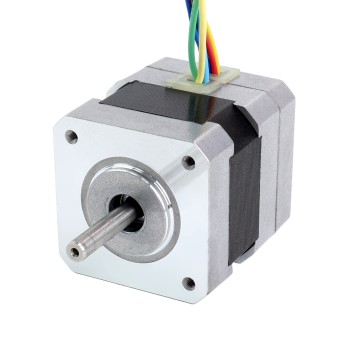

24V 3000RPM 0.08Nm 25W 1.80A 42x42x46mm Brushless DC Motor
