Name: Brushed 24V 250W 40.00Nm(5664.47oz.in) 36RPM w/ 50:1 Spur Gearbox DC Gear Motor
Brand: STEPPERONLINE
SKU: F6D250-24GU-18S/6GU50K
Price: 100.91 CAD
Availability: BackOrder

Brushed 24V 250W 40.00Nm(5664.47oz.in) 36RPM w/ 50:1 Spur Gearbox DC Gear Motor - F6D250-24GU-18S/6GU50K | StepperOnline CA

F6D250-24GU-18S/6GU50K

Output Shaft TypeKeyway

Shaft Diameter(mm)15

Shaft Length(mm)42

Rated Voltage(V)24

Question

Downloads

F6D250-24GU-XXS_6GUXXK_Manual.pdfPDF · 1.07MB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Rated Voltage(V)	Price	Stock
F2D10-12GN-18S/2GN100K	D	8	30	12	C$30.91	In stock
F2D10-12GN-18S/2GN10K	D	8	30	12	C$27.20	In stock
F2D10-12GN-18S/2GN15K	D	8	30	12	C$27.20	In stock
F2D10-12GN-18S/2GN200K	D	8	30	12	C$30.91	In stock
F2D10-12GN-18S/2GN20K	D	8	30	12	C$29.06	In stock
F2D10-12GN-18S/2GN30K	D	8	30	12	C$29.06	In stock
F2D10-12GN-18S/2GN3K	D	8	30	12	C$27.20	In stock
F2D10-12GN-18S/2GN50K	D	8	30	12	C$29.06	In stock
F2D10-12GN-18S/2GN5K	D	8	30	12	C$27.20	In stock
F2D10-12GN-30S/2GN100K	D	8	30	12	C$30.91	In stock
F2D10-12GN-30S/2GN10K	D	8	30	12	C$27.20	In stock
F2D10-12GN-30S/2GN15K	D	8	30	12	C$27.20	In stock
F2D10-12GN-30S/2GN200K	D	8	30	12	C$30.91	In stock
F2D10-12GN-30S/2GN20K	D	8	30	12	C$29.06	In stock
F2D10-12GN-30S/2GN30K	D	8	30	12	C$29.06	In stock
F2D10-12GN-30S/2GN3K	D	8	30	12	C$27.20	In stock
F2D10-12GN-30S/2GN50K	D	8	30	12	C$29.06	In stock
F2D10-12GN-30S/2GN5K	D	8	30	12	C$27.20	In stock
F2D10-24GN-18S/2GN100K	D	8	30	24	C$30.91	In stock
F2D10-24GN-18S/2GN100K-SALE	D	8	30	24	C$31.39	In stock
F2D10-24GN-18S/2GN10K	D	8	30	24	C$27.20	In stock
F2D10-24GN-18S/2GN15K	D	8	30	24	C$27.20	In stock
F2D10-24GN-18S/2GN200K	D	8	30	24	C$30.91	In stock
F2D10-24GN-18S/2GN20K	D	8	30	24	C$29.06	In stock
F2D10-24GN-18S/2GN30K	D	8	30	24	C$29.06	In stock
F2D10-24GN-18S/2GN3K	D	8	30	24	C$27.20	In stock
F2D10-24GN-18S/2GN50K	D	8	30	24	C$29.06	In stock
F2D10-24GN-18S/2GN5K	D	8	30	24	C$27.20	In stock
F2D10-24GN-30S/2GN100K	D	8	30	24	C$30.91	In stock
F2D10-24GN-30S/2GN10K	D	8	30	24	C$27.20	In stock

View all in category

Brushed 24V 250W 40.00Nm(5664.47oz.in) 36RPM w/ 50:1 Spur Gearbox DC Gear Motor

This is a 24V 250W DC gear motor with a flange of 104x104mm. The built-in 50:1 spur Gearbox brings s... Read More

0 reviews • Write a review

from

C$100.91

5 + C$98.21

10 + C$95.64

50 + C$93.19

100 + C$90.89

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

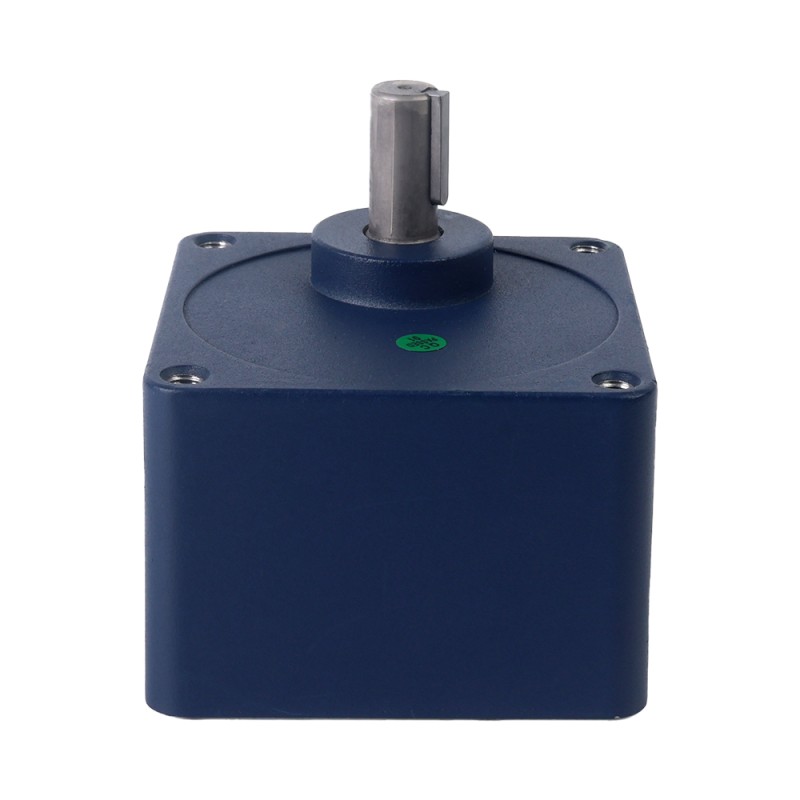

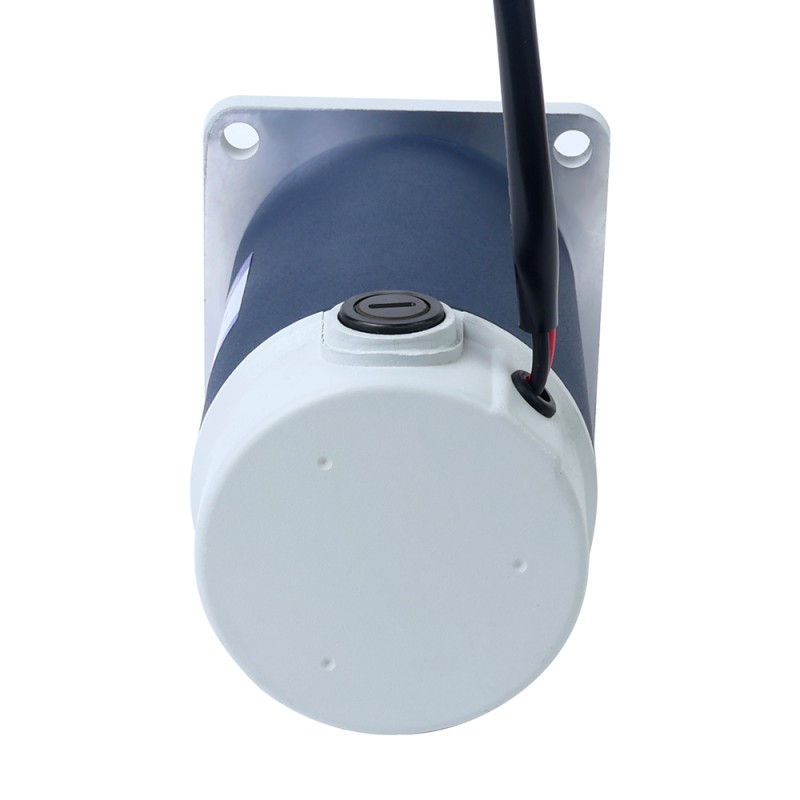

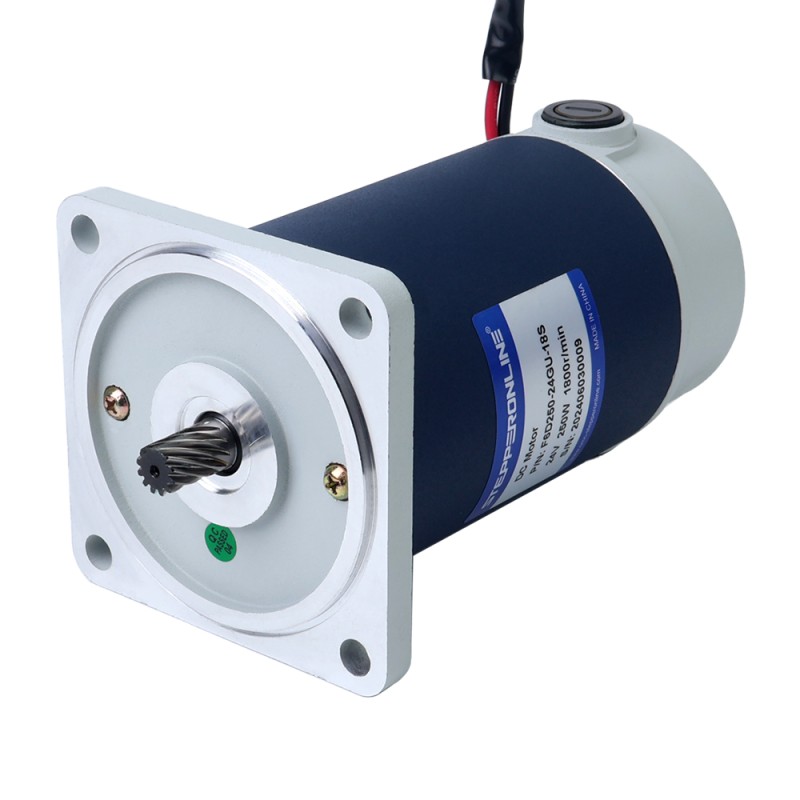

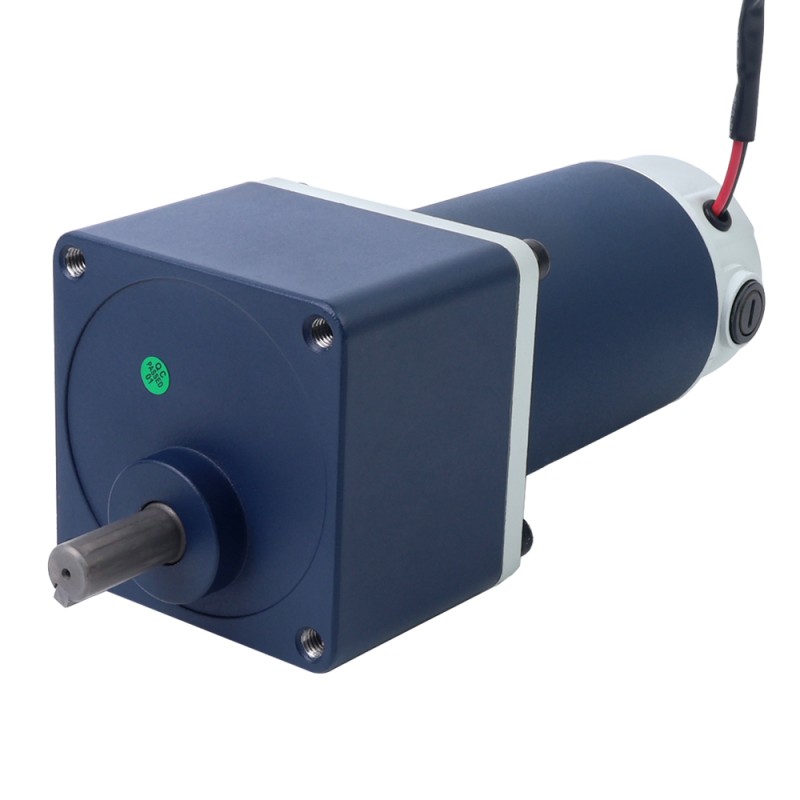

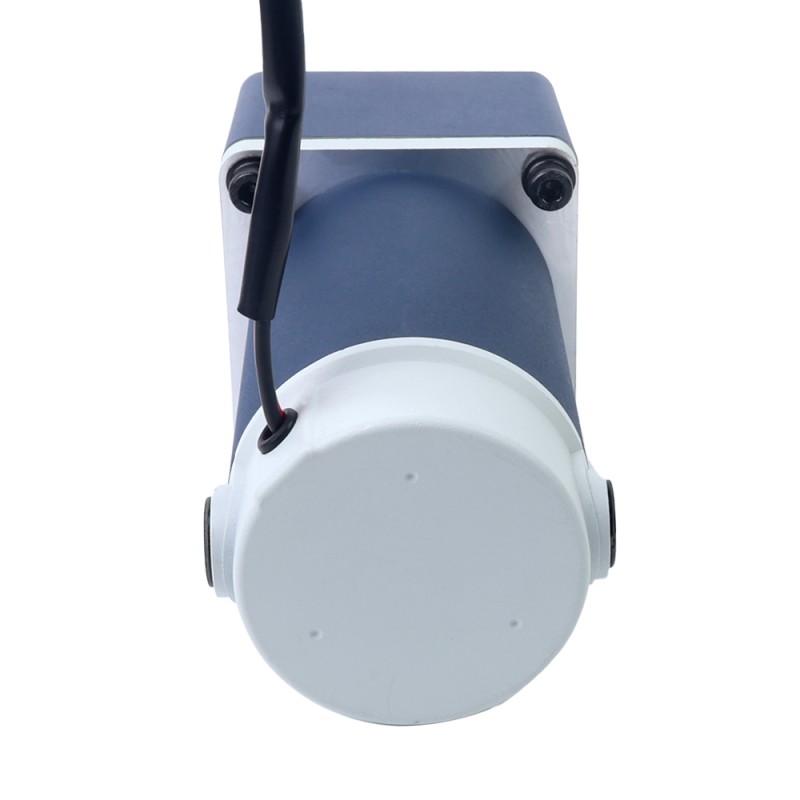

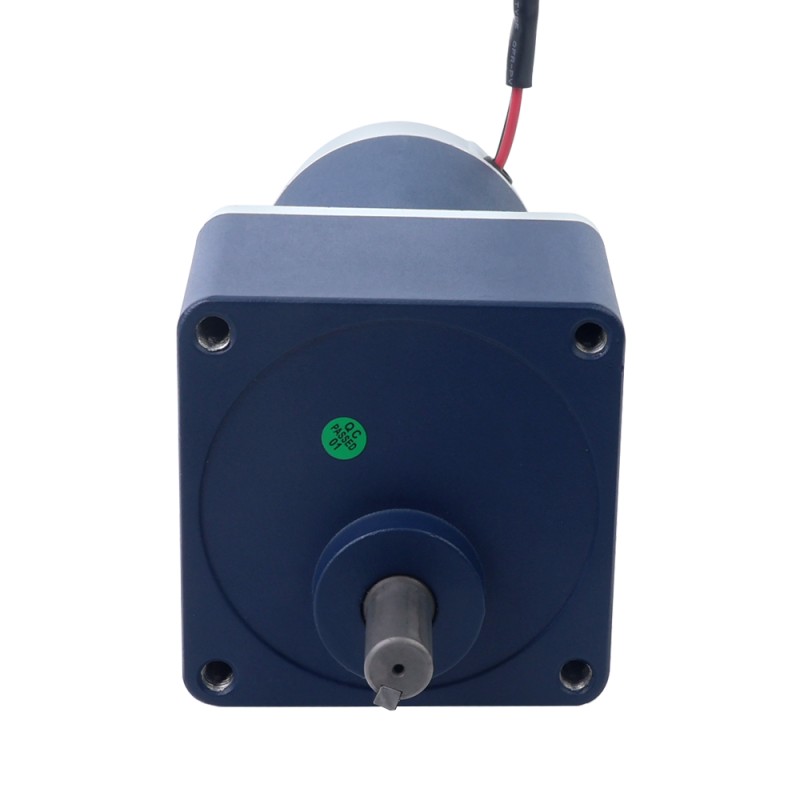

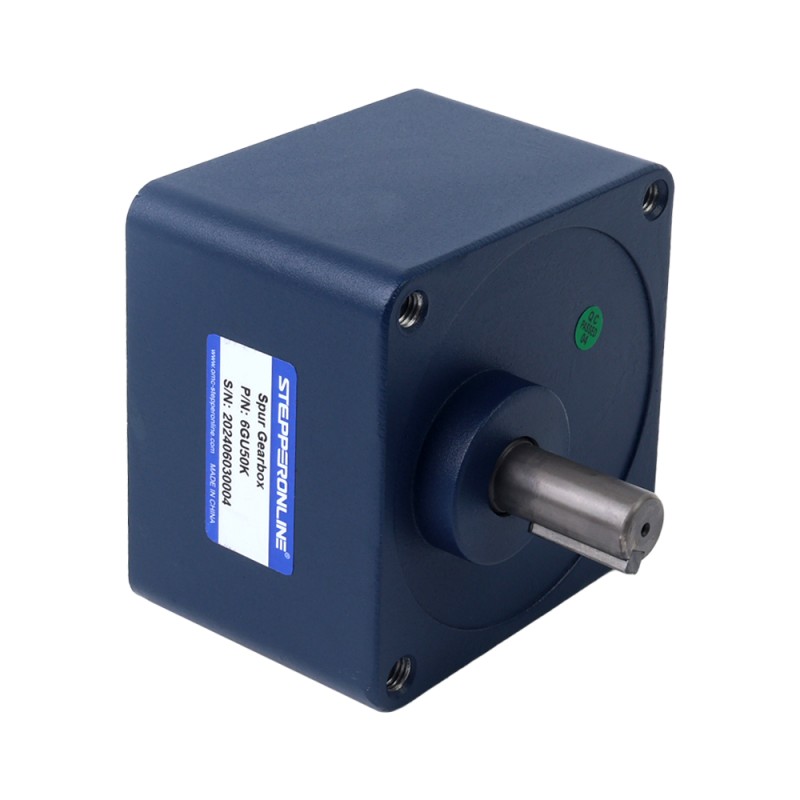

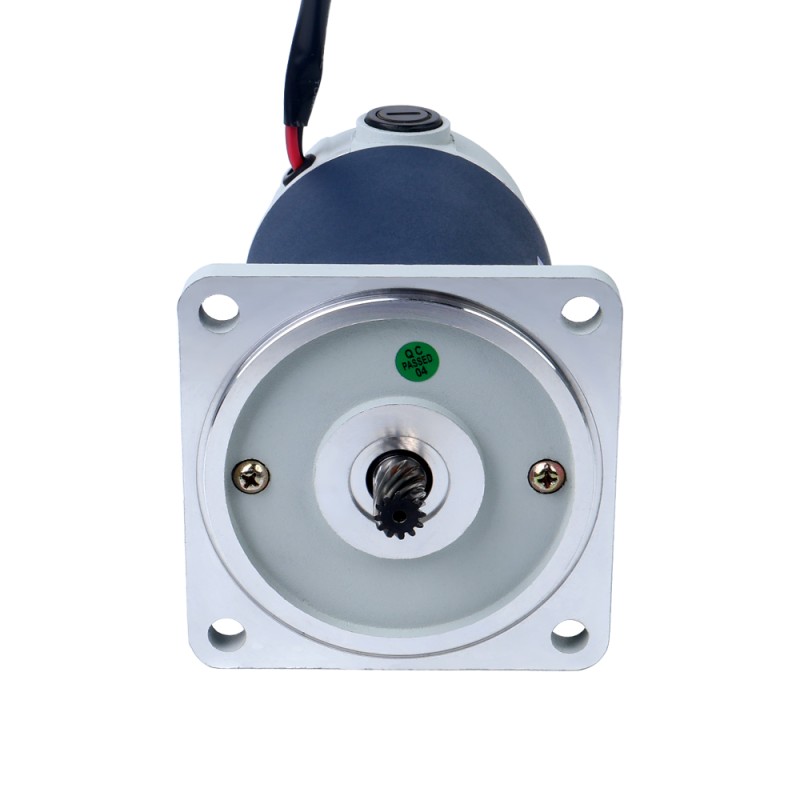

This is a 24V 250W DC gear motor with a flange of 104x104mm. The built-in 50:1 spur Gearbox brings speed and torque to 36rpm and 40.00Nm(5664.47oz.in). Due to its simple structure, low maintenance cost, and smooth operation, brushed DC gear motors are widely used in industrial production automation, logistics packaging equipment, medical equipment, photography equipment and other fields.

Electrical Specifications

P/N: F6D250-24GU-18S/6GU50K

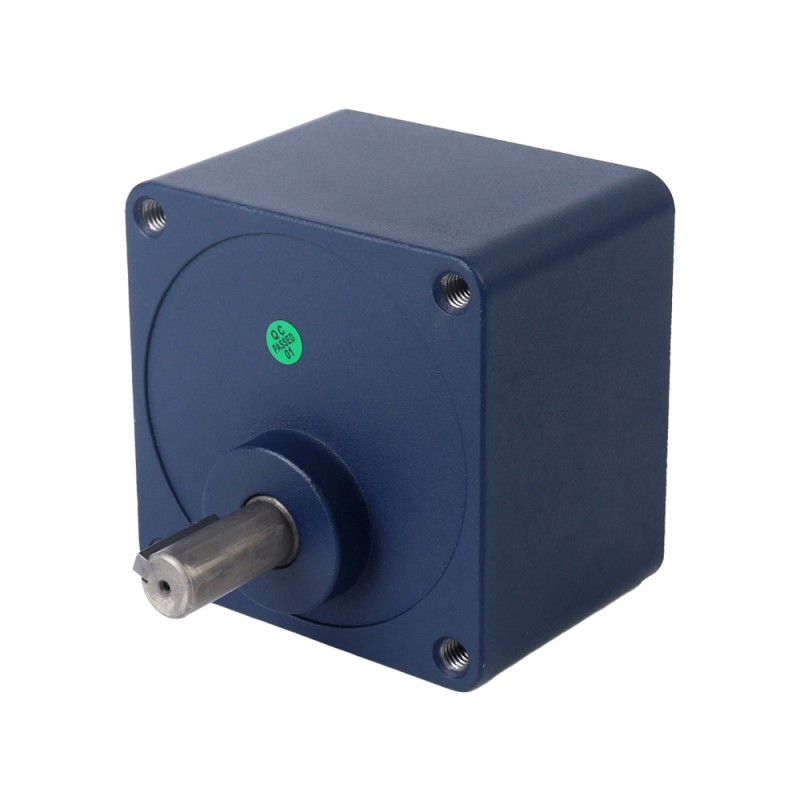

Gearbox Type: Spur Gearbox
Output Power: 250W
Voltage: 24V
No-load Current: 1.20A
Gear Ratio: 50:1
Rated Speed: 36rpm
Rated Speed without Gearbox: 1800rpm
Rated Torque: 40.00Nm(5664.47oz.in)
Brush Service Life: 2000h

Physical Specifications

Frame Size: 104x104mm
Body Length: 239mm
Shaft Type: Keyway
Shaft Diameter: Φ15mm
Shaft Length: 42mm
Weight: 5.3kg

Electrical Specification
Motor Type	Brushed DC Motor
No-load Current(A)	1.2
Rated Speed(rpm)	36
Rated Torque(Nm)	40
Rated Torque(oz.in)	5664.47
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	50
Gearbox Shape	Square
Gearbox Type	Spur Gearbox
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	42
