48V 250W 20RPM 70.00Nm(9912.82oz.in) 150:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox

0 reviews - Write a review

C$224.69

5 + C$210.19

10 + C$197.46

50 + C$186.17

100 + C$176.11

In Stock: 10000
Model: F6B250-48GL-30S/6GL150RC
Gross Weight: 8.21kg
Certificated: ISO, CE

Sold: 4

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

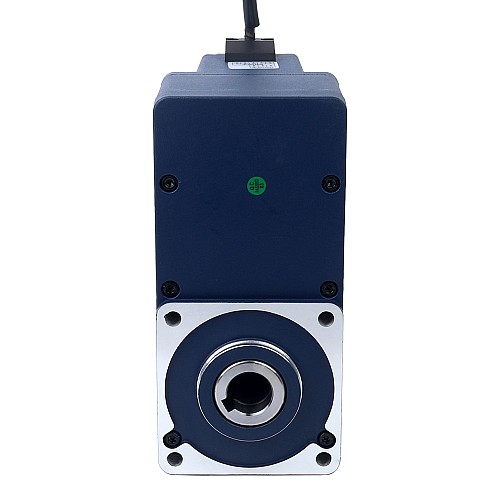

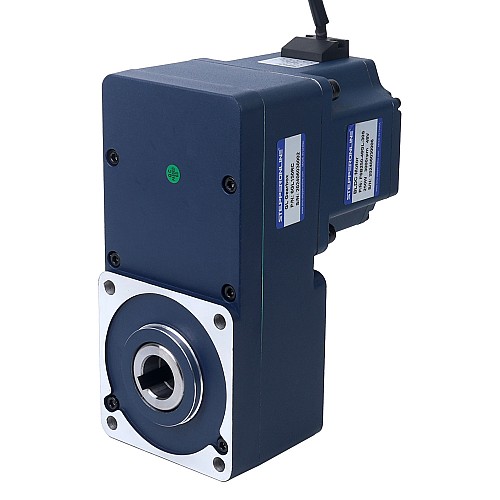

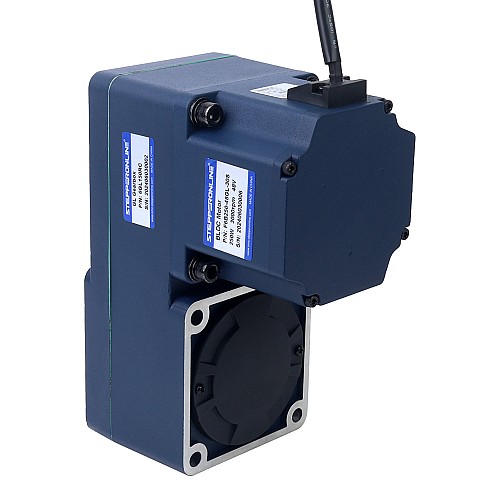

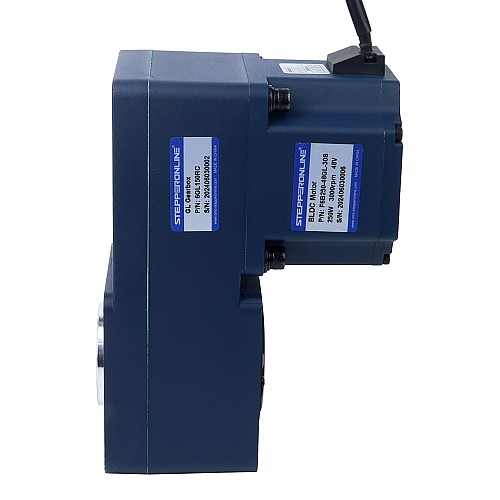

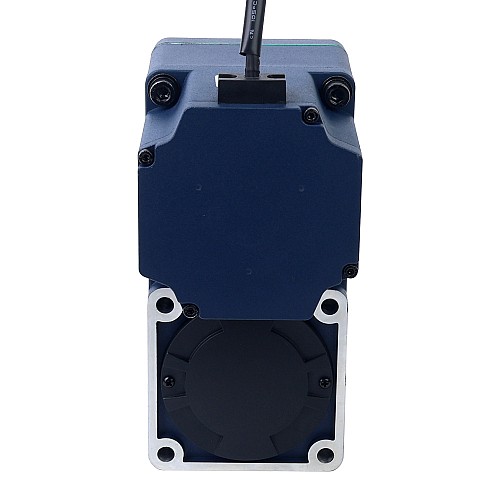

This is a 48V 250W BLDC gear motor with a flange of 104x104mm. The built-in 150:1 parallel hollow shaft gearbox brings speed and torque to 20rpm and 70.00Nm(9912.82oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

P/N: F6B250-48GL-30S/6GL150RC
Phase: 3
Poles: 10
Rated Current: 6.50A
Rated Voltage: 48V
Rated Speed: 20rpm
Rated Torque: 70.00Nm(9912.82oz.in)
No-load Current: 1.10A
Rated Power: 250W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 104x104mm
Gearbox Type: Parallel Hollow Shaft Gearbox
Gearbox Ratio: 150:1
Shaft Type: Hollow
Bore Diameter: Φ25mm
Bore Length: 88.5mm
Bearing: Deep Groove Ball
Weight: 7.19kg

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No-load Current(A)	1.1
No. of Phase	3
Rated Current(A)	6.50
Rated Power(W)	250
Rated Speed(rpm)	20
Rated Torque(Nm)	70.00
Rated Voltage(V)	48
Physical Specification
Body Length(mm)	218.9
Frame Size(mm)	104 x 104
Gear Ratio(xx:1)	150
Gearbox Type	Parallel Gearbox
Output Shaft Type	Hollow
With Gearbox	Yes
