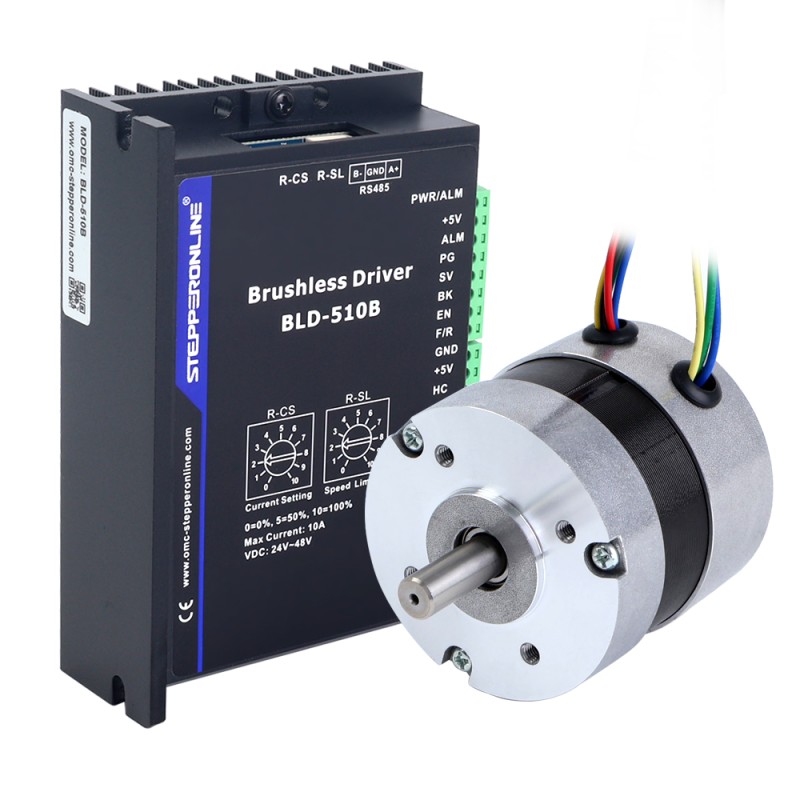

Brushless DC Motor & Driver Kit 67W 24V 4000RPM 0.16Nm(22.66oz.in)

0 reviews - Write a review

C$0.00

In Stock: 1
Model: K-510B24-67W
Gross Weight: 0.93kg
Certificated: ISO, CE

Sold: 16

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This kit includs:

1 x BLD-510B: Digital Brushless DC Motor Driver 12V-48VDC Max 15.0A 400W

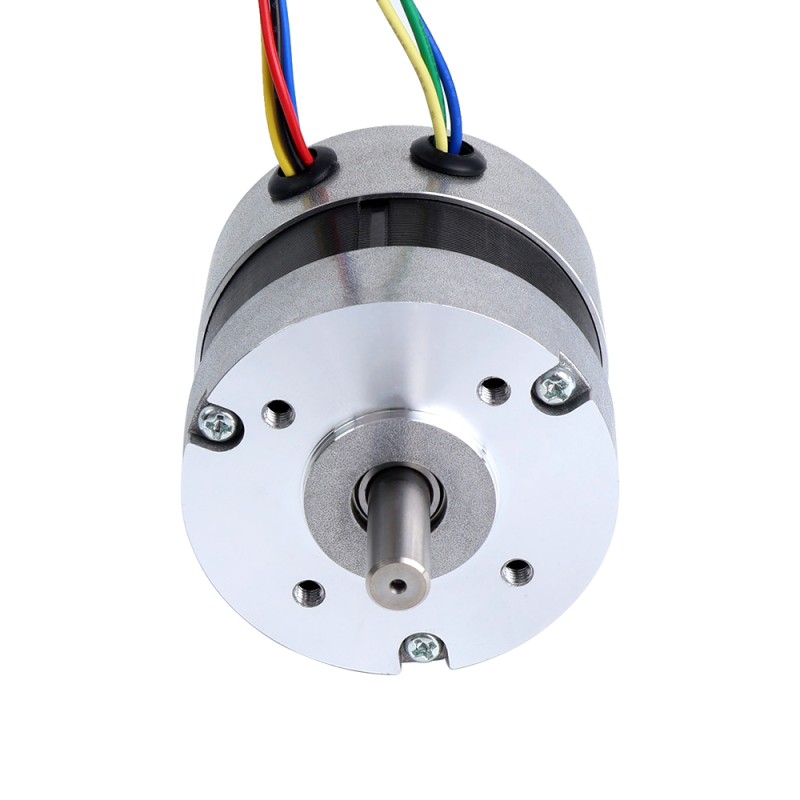

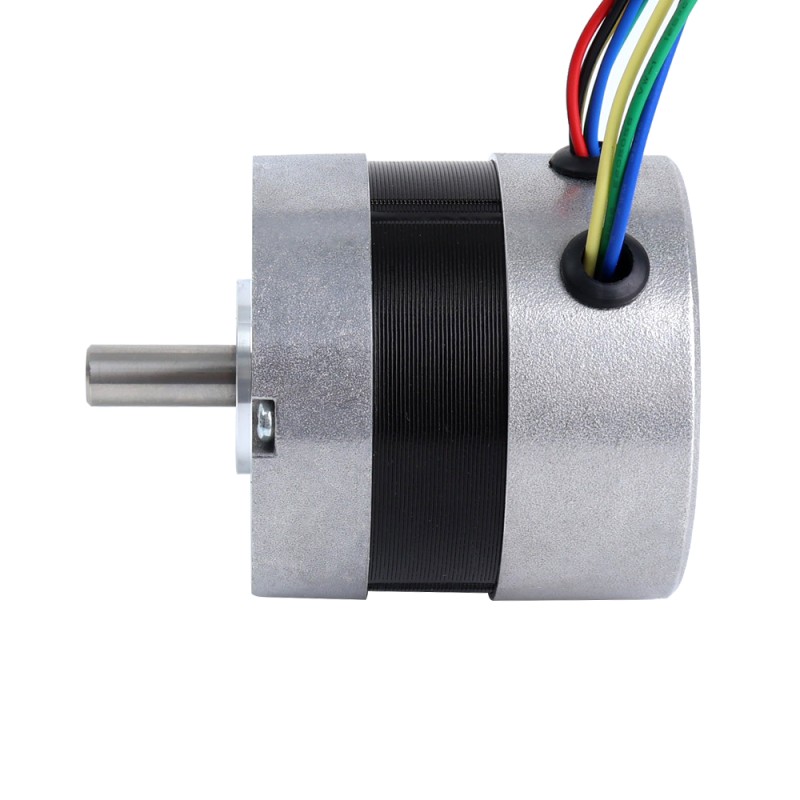

1 x 57BLY54-24-01: 24V 4000RPM 0.16Nm 67W 4.1A Ф57x53.5mm Brushless DC Motor

Motor Specification

Manufacturer Part Number: 57BLY54-24-01
Phase: 3
Poles: 4
Resistance/Line: 0.6ohms ± 10%
Inductance/Line: 1.4mH@1kHz ± 20%
RatedVoltage: 24VDC
No Load Speed: 5100 ± 10%RPM
Rated Torque: 0.16Nm(22.66oz.in)
Rated Speed: 4000RPM ± 10%
Rated Current: 4.1A
Rated Power: 67W
Back EMF Constant: 3.4Vrms/krpm ± 5%
Insulation Class: B 130°C[266°F]
Insulation Resistance: >50MΩ MIN@600VDC
Frame Size: Φ57mm
Body Length: 53.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
Number of Phase Leads: 3
Number of Hall Leads: 3
Lead Length: 300mm
Sensor: Hall Sensor

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Brown	Red	Black	Yellow	Grey	Blue

Driver Specification

Parameters	BLD-510B
Input Voltage(VDC)	12	24	36	48
Continuous Output Current(A)	10.0	8.3	5.5	8.3
Rated Output Power(W)	120	200	200	400
Peak Current(A)	15.0

The recommended power supply is S-100-24.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	4.1
Rated Power(W)	67
Rated Speed(rpm)	4000
Rated Torque(Nm)	0.16
Rated Voltage(V)	24
Physical Specification
Frame Size(mm)	Nema 23 (Φ57)
Inventory Method	Dedicated Inventory
Output Shaft Type	O
Shaft Diameter(mm)	8
Shaft Length(mm)	21
