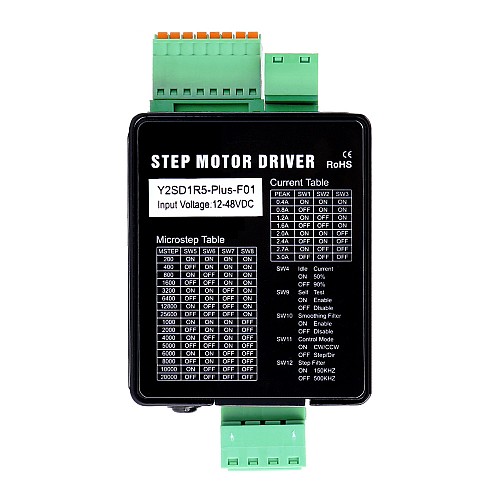

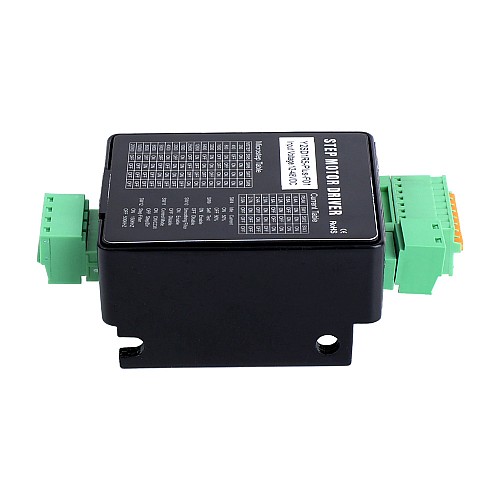

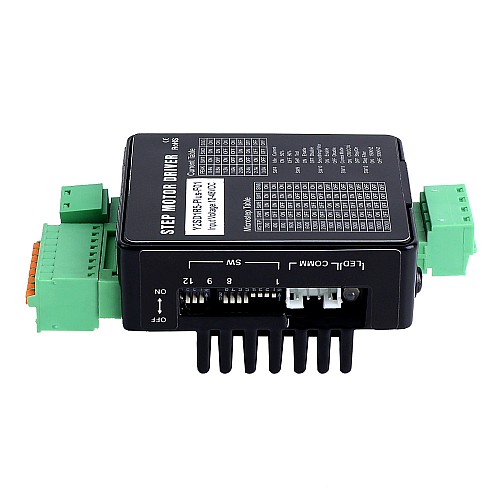

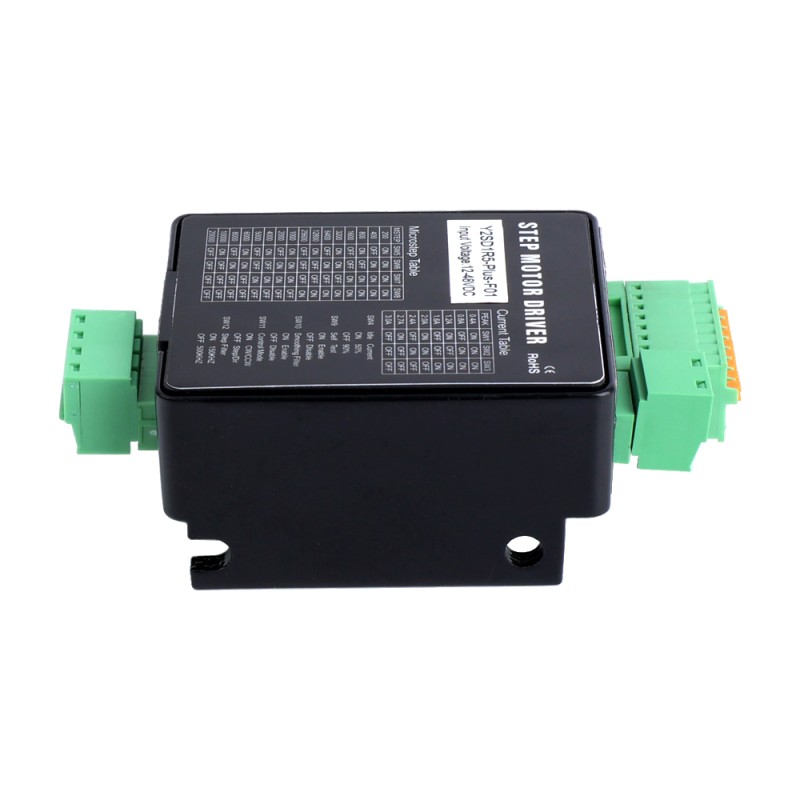

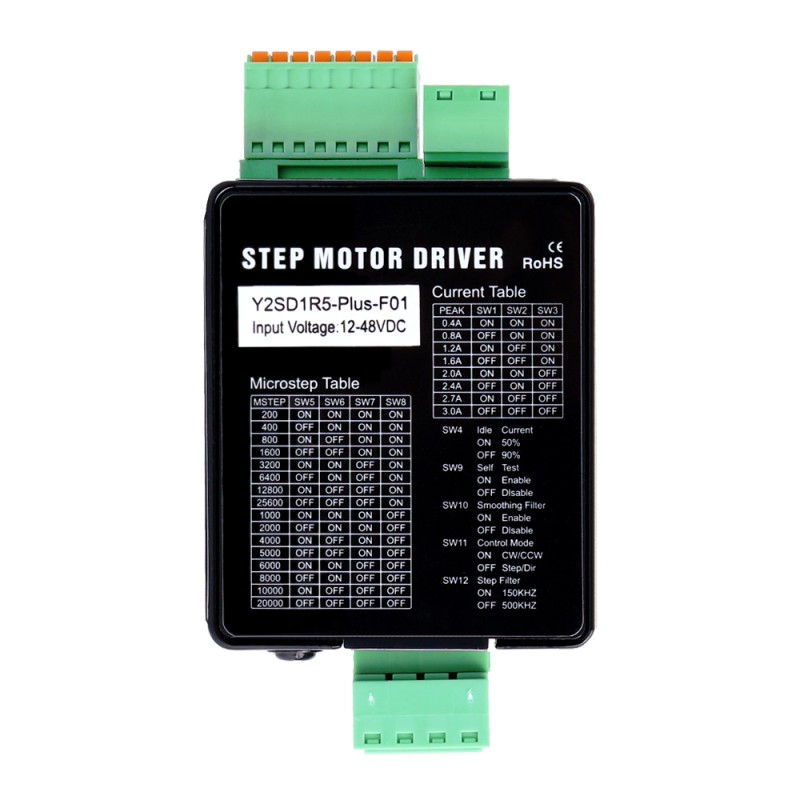

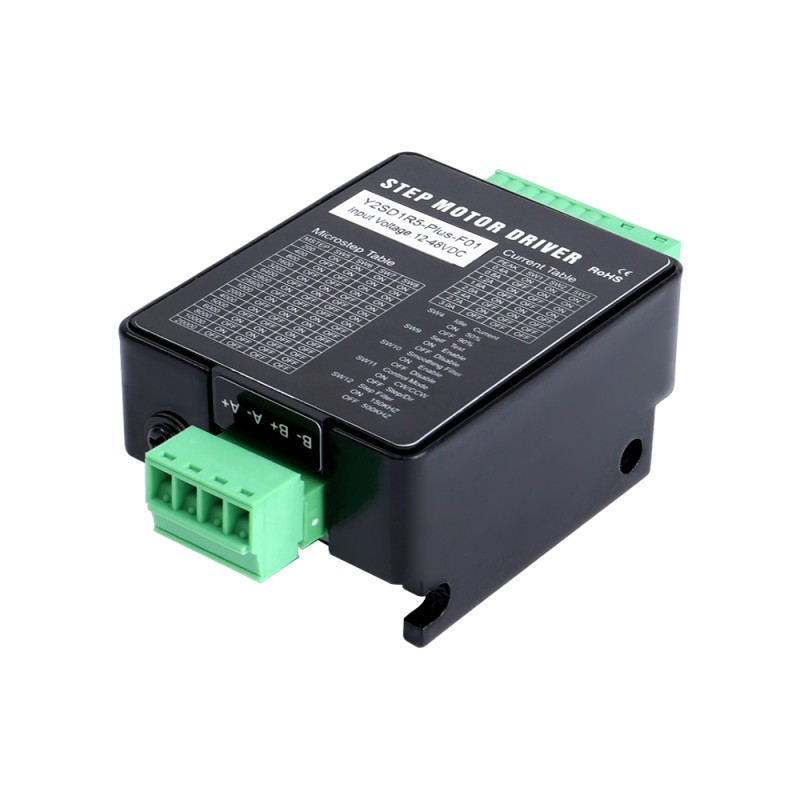

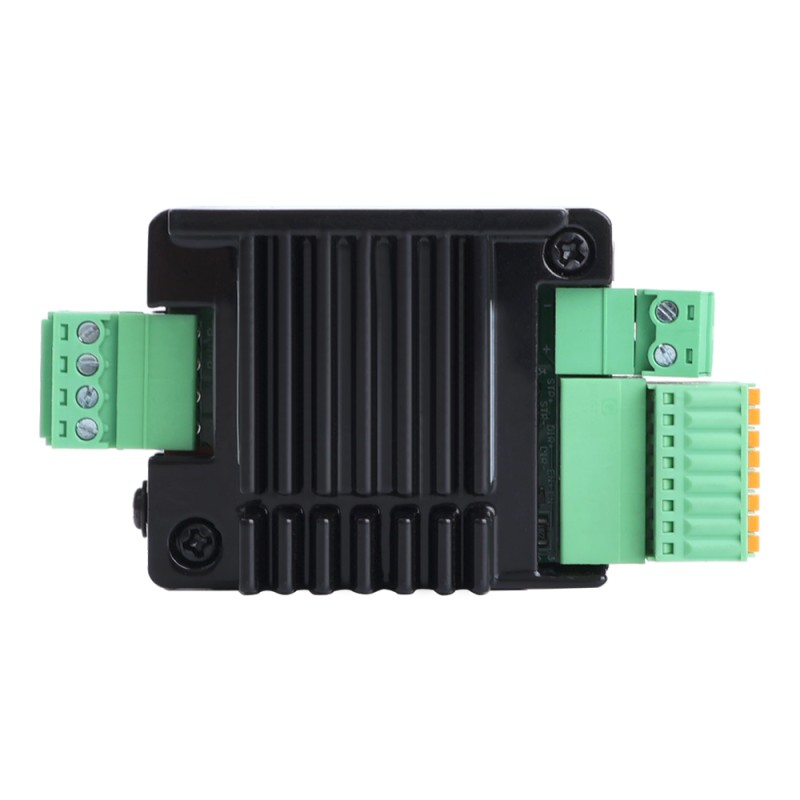

Name: Y2SD1R5-PLUS-F01 | DC Pulse Stepper Motor Driver 0.4-3.0A 12-48VDC Alarm Function & I/O Control for Nema 11, 14, 17, 23 Stepper Motor | StepperOnline CA
SKU: Y2SD1R5-PLUS-F01
Availability: InStock

DC Pulse Stepper Motor Driver 0.4-3.0A 12-48VDC Alarm Function & I/O Control for Nema 11, 14, 17, 23 Stepper Motor

Discontinued

DC Pulse Stepper Motor Driver 0.4-3.0A 12-48VDC Alarm Function & I/O Control for Nema 11, 14, 17, 23 Stepper Motor

0 reviews - Write a review

C$0.00

In Stock: 1
Model: Y2SD1R5-PLUS-F01
Gross Weight: 0.20kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

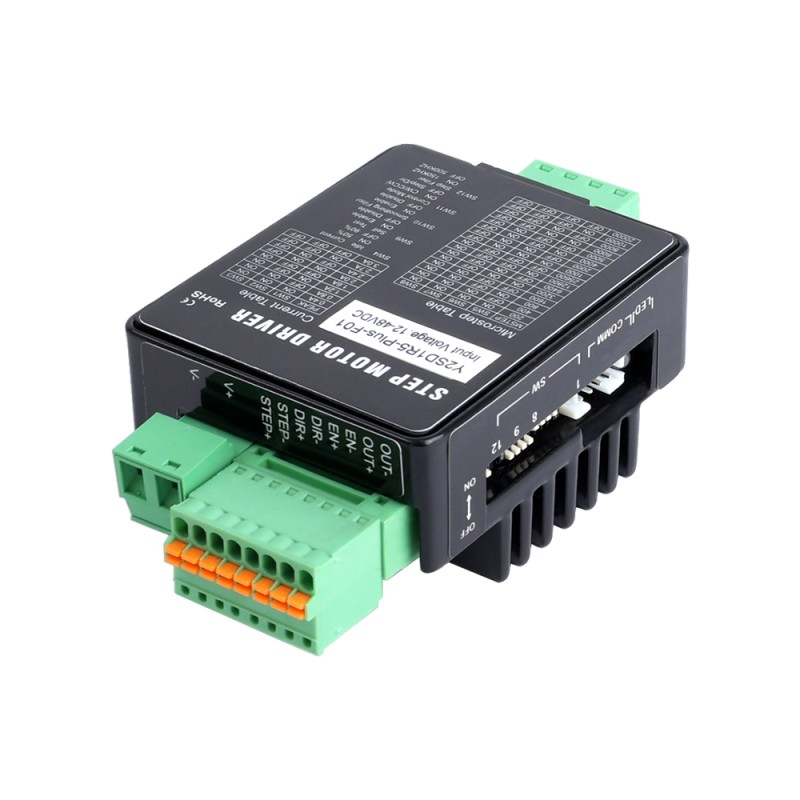

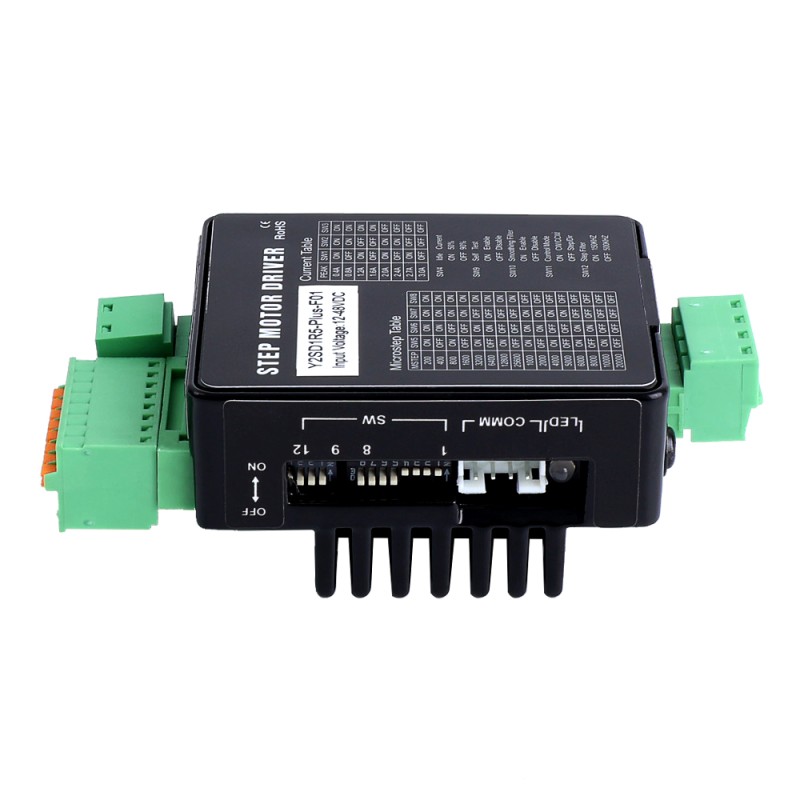

Y2SD1R5-PLUS-F01 is a DC pulse stepper motor driver, supports pulse & direction mode and CW/CCW mode, the input voltage range is 12-48VDC, the maximum optional microstep subdivision is 25600step/revolution. It has the features of reducing the current in idle, anti-resonance in low-speed range, input signal filtering, microstep subdivision of dial code, self-test error reporting, output alarm and I/O control.

Key Features

I/O Control
Anti-resonance
Low speed torque is smooth
Self-check and automatically setup
Input information is smoothed to subdivide the gap, and the optional subdivide can reach 25600
DC input 2 phase stepper motor driver
Over voltage protection, under voltage protection, voltage error protection; Over current protection, over temperature protection, overload protection; Motor line open detection, communication line open detection, etc.
Suitable for Nema 11, 14, 17, 23 stepper motors

Electrical Specifications

Control Mode: Pulse + direction/positive and negative pulse
Input Voltage: 12 - 48VDC
Output Current: 0.4 - 3.0A
Control Signal: 5 - 24V Compatible
Encoder Feedback: No
Alarm Output: Yes

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is DM542T.

Product Type
Product Type	Driver Only
Electrical Specification
Alarm Output	Yes
Analog Input	No
Brake Output	No
Control Modes	Pulse Mode
Encoder Feedback	No
Input Voltage Reference(V)	12 - 48DC
Input Voltage(V)	12 - 48DC
Max. Output Current RMS(A)	3.0
Max. Pulse Input(kHZ)	500
Microstep(Steps/rev.)	200 - 25600
No. of Phase	2
Output Current(A)	0.4 - 3.0
Physical Specification
Installation Type	Split
Inventory Method	Dedicated Inventory
