DSY Series 400W CANopen DC Servo Motor 24-70VDC 1.27Nm w/ Brake 3000rpm 17-Bit Incremental Encoder IP65

0 reviews - Write a review

C$389.89

5 + C$287.50

10 + C$271.08

50 + C$256.41

100 + C$243.27

In Stock: 10000
Model: DSY-C400L2B2-M17S
Gross Weight: 3.05kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

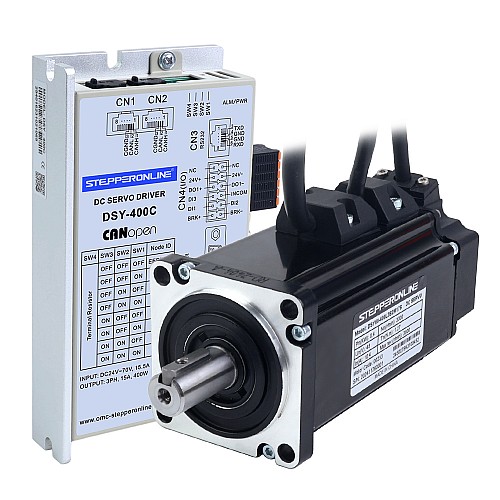

This is the latest DSY series DC servo system, consisting of a 48VDC 400W servo motor with a 24V 7.3W brake and a 24-70VDC 400W CANopen servo driver. The servo motor has a rated torque of 1.27Nm, a peak torque of 3.81Nm, and a rated speed of 3000rpm.
The DSY-C servo system supports CANopen communication control, featuring built-in error detection and retransmission mechanisms. Compared to RS485, it delivers faster response times, enhanced noise immunity, and multi-master network support.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

Items in Kit

1 x DSY-400C: 400W CANopen DC Servo Motor Driver
1 x DSY60-400L2B2M17S: 400W 48V DC Servo Motor 3000rpm 1.27Nm with Brake 17-Bit Encoder IP65

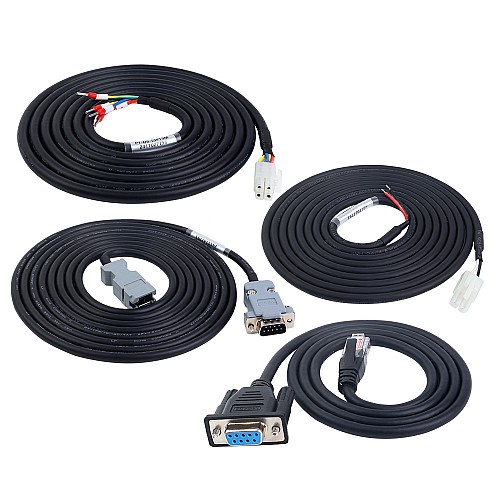

1 x P1-DS-03P15M: 3.0m Motor Cable
1 x P1-DS-03M-S: 3.0m Brake Cable
1 x E2-DS-03AM: 3.0m Encoder Cable
1 x RS232-5: 1.0m Debugging Cable

Servo Driver Specification

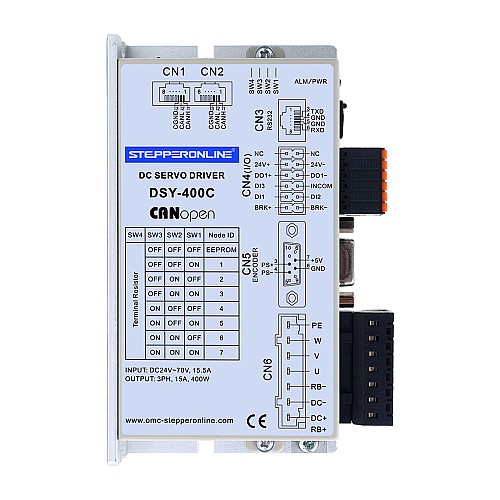

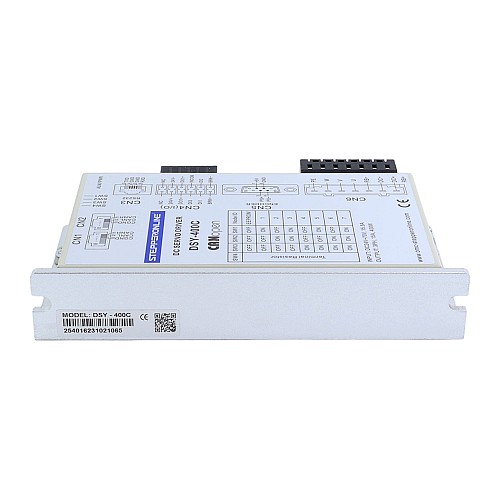

Part Number: DSY-400C
Control method: CANopen
Continuous Output Current: 15.0A
Maximum Output Current: 48.0A
Power Supply Input: 24-70VDC
Rated power 400W
Dimension: 141*75.5*25.4mm

Servo Motor Specification

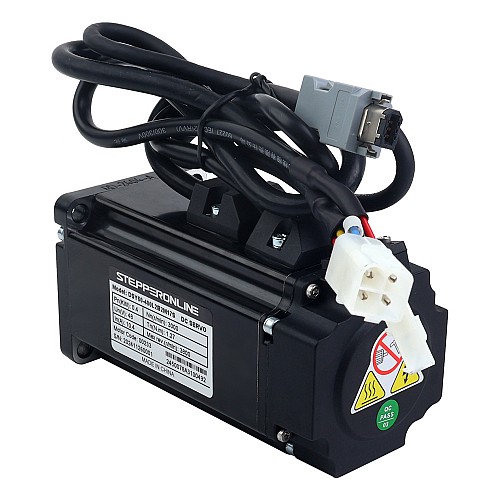

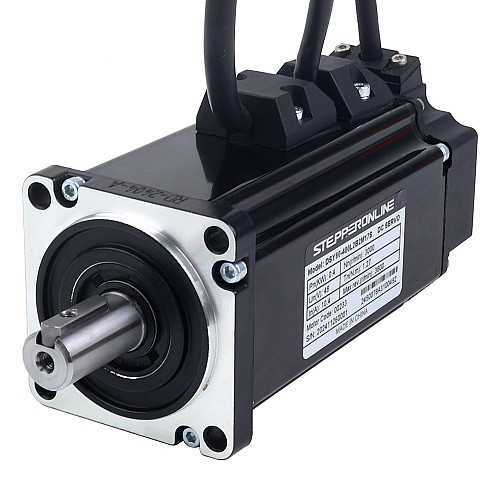

Part Number: DSY60-400L2B2M17S
Rated Power: 400W
Rated Voltage: 48VDC
Rated Torque: 1.27Nm
Peak Torque: 3.81Nm
Rated Current: 10.2A
Rated Speed: 3000rpm
Torque Const: 0.124N.m/A
Line-line Resistance: 0.33ohms ± 10%
Line-line Inductance: 0.65mH ± 20%
Inertia: 0.51kg*m²*10^-4
Encoder: 17-bit single-turn magnetic incremental encoder
Poles: 10
IP Rating: IP65
Shaft diameter: 14mm
Brake Holding Torque: 1.52Nm
Brake Voltage: 24VDC
Brake Power: 7.3W
Brake Current: 0.32A
Cable Length: 3m(optional lengths are 1.5m and 5m)

Please download DSY series servo debug software here.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

The DSY series debugging software by STEPPERONLINE was developed and tested on Windows 10. Using other Windows versions may cause compatibility issues (e.g., garbled text) or affect software functionality.

Electrical Specification
Control Modes	CANopen
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	24 - 70VDC
Peak Speed(rpm)	3800
Peak Torque(Nm)	3.81
Rated Power(W)	400
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.27
Rated Voltage(V)	48VDC
With Brake	Yes
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	65
Shaft Diameter(mm)	14

File	Size
DSY60-400L2B2M17S.STEP	2.69MB	Download
DSY60-400L2B2M17S_Full_Datasheet.pdf	134.7KB	Download
DSY-400C.STEP	16.51MB	Download
DSY-C_Series_Low_Voltage_Servo_Drive_User_Manual(V1.0).pdf	12.31MB	Download
DSY-C.EDS	36.81KB	Download
