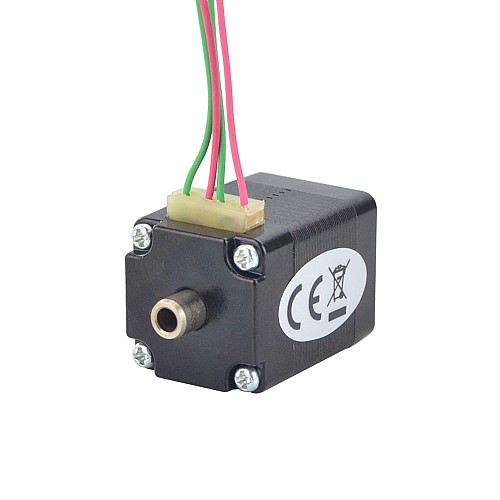

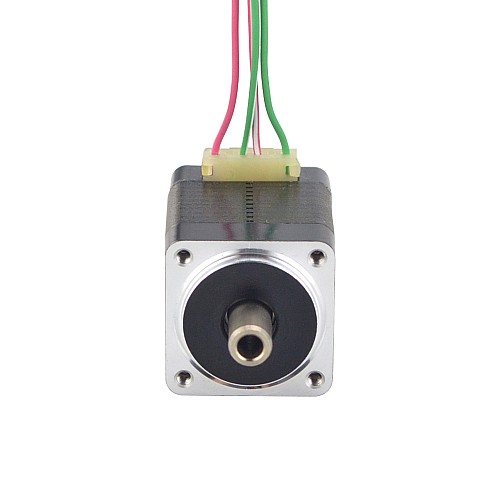

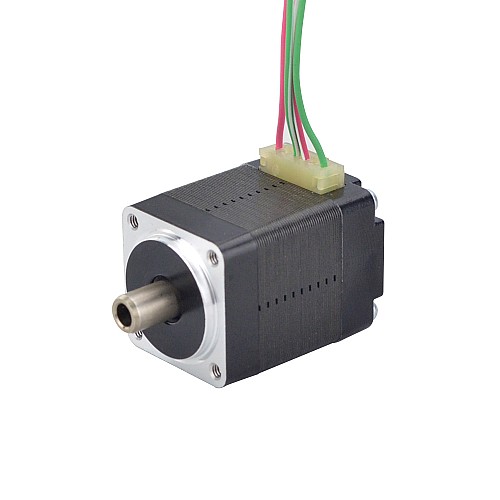

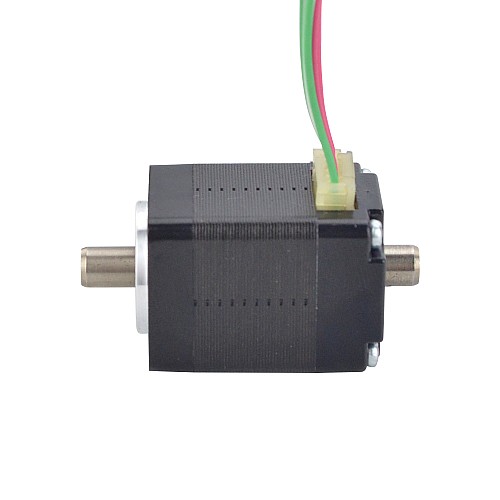

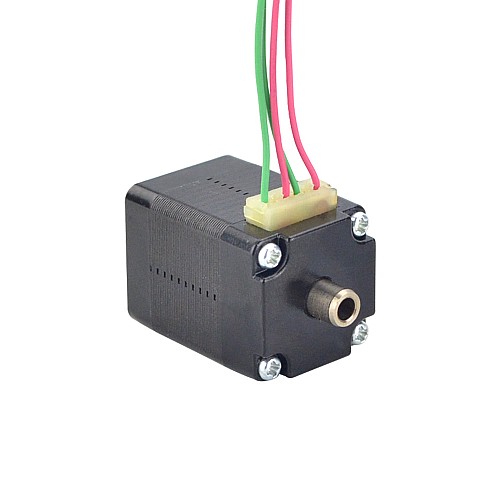

Dual Shaft Nema 8 Hollow Shaft Stepper Motor Bipolar 1.5Ncm(2.12oz.in) 0.49A 20x20x27mm

3 reviews - Write a review

C$30.41

5 + C$28.59

10 + C$26.98

50 + C$25.54

100 + C$24.24

In Stock: 10000
Model: 8HS12-0494H
Gross Weight: 0.11kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 8HS12-0494H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.015Nm(2.12oz.in)
Rated Current/phase: 0.49A
Phase Resistance: 6.9ohms± 10%
Inductance: 2.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 20 x 20mm
Body Length: 27.3mm
Shaft Outer Diameter: Φ5mm
Shaft Inner Diameter: Φ3mm
Front Shaft Length: 8mm
Rear Shaft Length: 5mm
Number of Leads: 4
Cable Length: 310mm
Weight: 0.05kg

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	1.5
Holding Torque(oz.in)	2.12
Inductance(mH)	2.6
Phase Resistance(ohms)	6.9
Rated Current(A)	0.49
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	27.3
Cable Length(mm)	310
Frame Size(mm)	Nema 08 (20 x 20)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Hollow
Product Series	S
Shaft Inner Diameter(mm)	3
Shaft Outer Diameter(mm)	5
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	50g
