Nema 14 Hollow Shaft Stepper Motor Bipolar 18Ncm(25.5oz.in) 0.8A 35x35x34mm

1 reviews - Write a review

C$18.00

5 + C$16.92

10 + C$15.97

50 + C$15.11

100 + C$14.36

In Stock: 10000
Model: 14HS13-0804SH
Gross Weight: 0.25kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 161

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

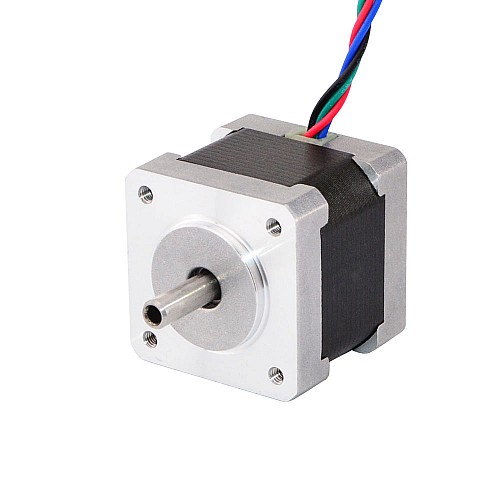

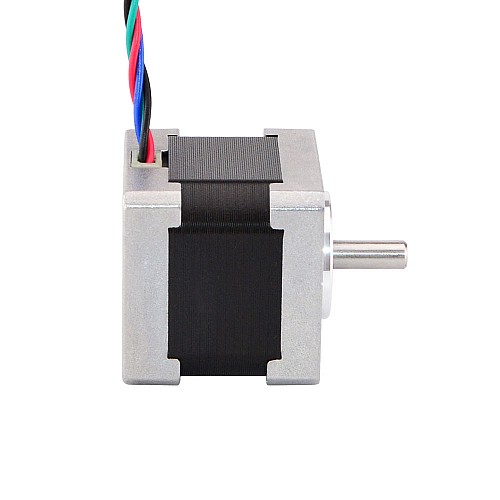

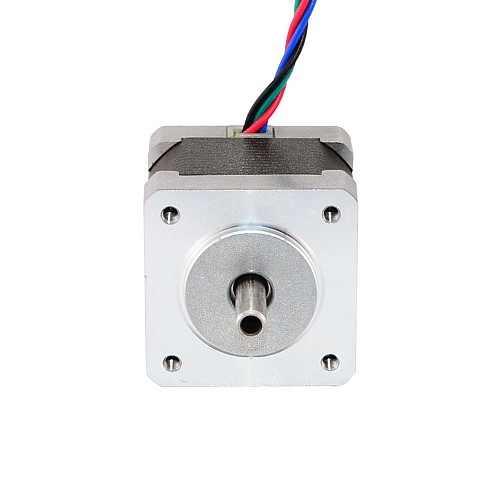

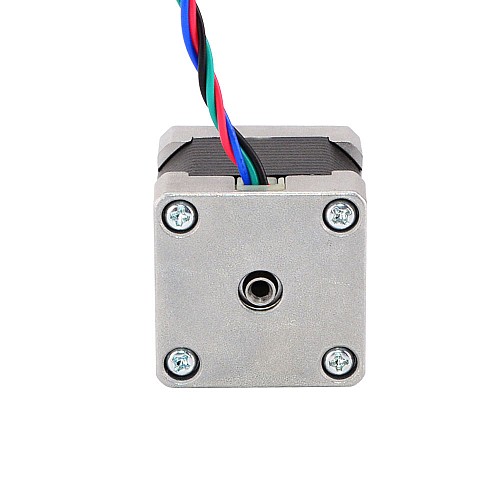

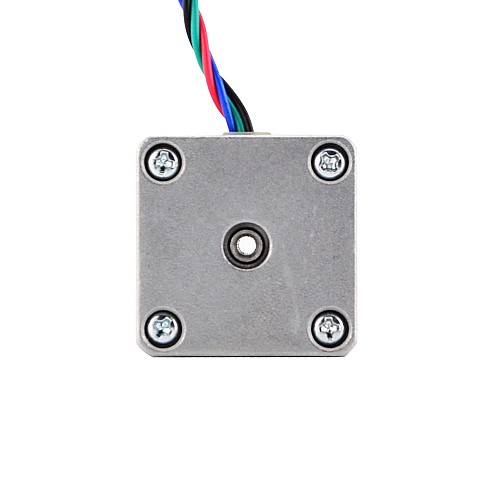

This bipolar Nema 14 stepper motor with a hollow shaft. The shaft with 5mm OD and 3mm ID, It has 4 wires, each phase draws 0.8A at 5.4V, with holding torque 18Ncm(25.5oz.in).

Electrical Specification

Manufacturer Part Number: 14HS13-0804SH
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 18Ncm(25.5oz.in)
Rated Current/phase: 0.8A
Voltage: 5.4V
Phase Resistance: 6.8ohms
Inductance: 10mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 34mm
Shaft Outer Diameter: Φ5mm
Shaft Inner Diameter: Φ3mm
Shaft Length: 15mm
Number of Leads: 4
Lead Length: 400mm
Weight: 190g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	18
Holding Torque(oz.in)	25.5
Inductance(mH)	10
Phase Resistance(ohms)	6.8
Rated Current(A)	0.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	Hollow
Product Series	S
Shaft Inner Diameter(mm)	3
Shaft Outer Diameter(mm)	5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	190
