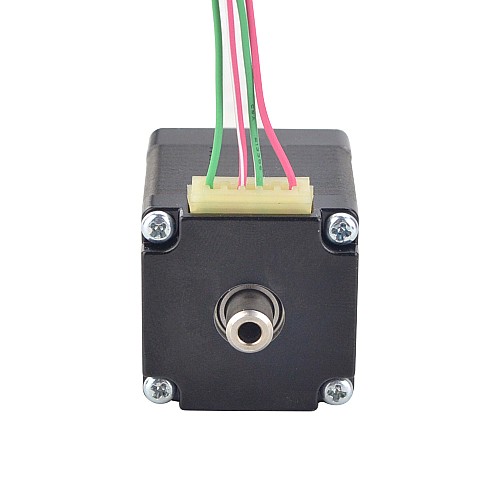

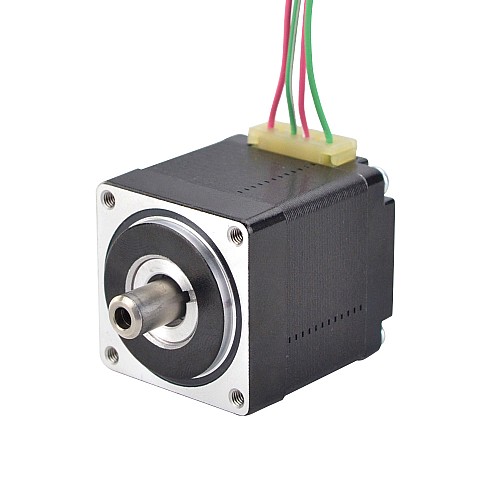

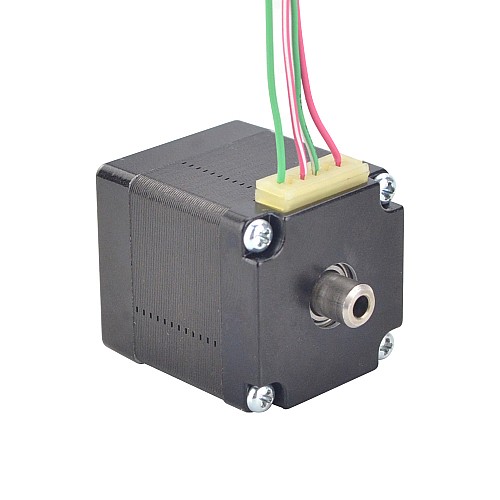

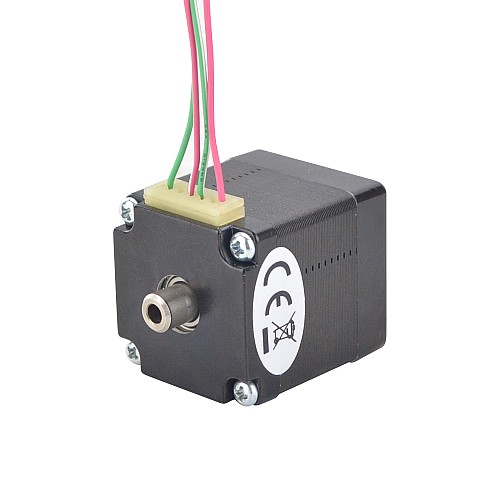

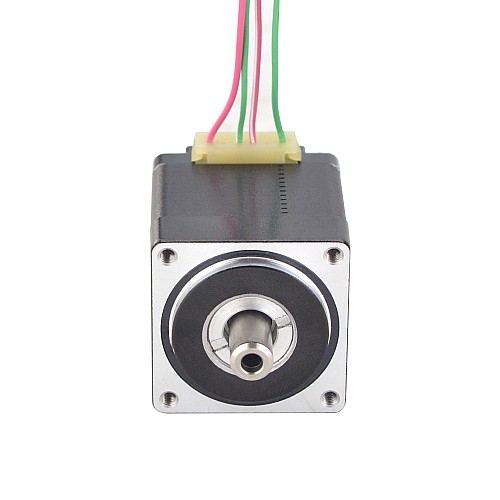

Dual Shaft Nema 11 Hollow Shaft Stepper Motor Bipolar 6Ncm(8.5oz.in) 1.0A 28x28x32mm

2 reviews - Write a review

C$23.58

5 + C$22.17

10 + C$20.93

50 + C$19.80

100 + C$18.81

In Stock: 10000
Model: 11HS13-1004H
Gross Weight: 0.16kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 11HS13-1004H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.06Nm(8.5oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 2.1ohms± 10%
Inductance: 1.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 32.2mm
Shaft Outer Diameter: Φ6mm
Shaft Inner Diameter: Φ3mm
Shaft Front Length: 10mm
Rear Shaft Length: 5mm
Number of Leads: 4
Cable Length: 310mm
Weight: 0.11kg

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	6
Holding Torque(oz.in)	8.5
Inductance(mH)	1.5
Phase Resistance(ohms)	2.1
Rated Current(A)	1.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	32.2
Cable Length(mm)	310
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Hollow
Product Series	S
Shaft Inner Diameter(mm)	3
Shaft Outer Diameter(mm)	6
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	110
