AR4 Robot Complete Electric Package | Stepper Motor, Driver and Power Supply

Discontinued

AR4 Robot Complete Electric Package | Stepper Motor, Driver and Power Supply

2 reviews - Write a review

C$0.00

In Stock: 1
Model: AR4
Gross Weight: 7.10kg
Certificated: ISO, CE

Sold: 467

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

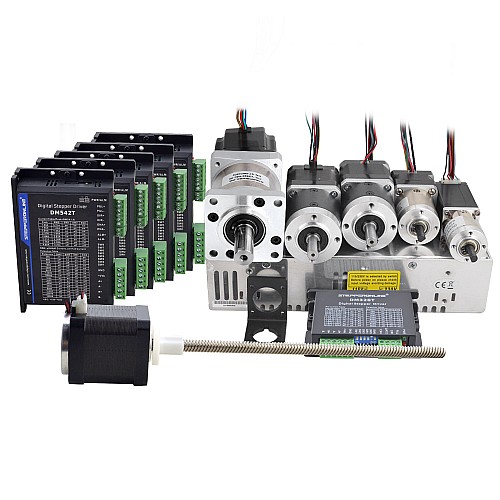

This is the complete electric package for AR4 robots. Compared to the AR3 motor with a separate encoder, the AR4 motors are already built with very thin and cost-effective magnetic incremental encoders.

Items in Kit:

Joint 1: 17HS15-1684D-HG10-AR4
Joint 2: 23HS22-2804D-YGS50-AR4
Joint 3: 17HS15-1684D-HG50-AR4
Joint 4: 11HS20-0674D-PG14-AR4
Joint 5: 17LS19-1684E-200G-AR4
Joint 6: 14HS11-1004D-PG19-AR4
Nema 11 Bracket: ST-M3
Stepper Driver: DM320T * 1
Stepper Driver: DM542T * 5
Power Supply: S-250-24 * 1

Manuals of each items:

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is AR4-MK3.

Physical Specification
Inventory Method	Dedicated Inventory

File	Size
11HS20-0674D-PG14-AR4_Full_Datasheet.pdf	162.04KB	Download
14HS11-1004D-PG19-AR4_Full_Datasheet.pdf	165.15KB	Download
17HS15-1684D-HG10-AR4_Full_Datasheet.pdf	149.27KB	Download
17HS15-1684D-HG50-AR4_Full_Datasheet.pdf	150.86KB	Download
17LS19-1684E-200G-AR4_Full_Datasheet.pdf	174.84KB	Download
DM542T.pdf	686.95KB	Download
DM542T(V4.0).STEP	1.85MB	Download
S-250-24.pdf	128.42KB	Download
ST-M3.pdf	49.83KB	Download
23HS22-2804D-YGS50-AR4.pdf	174.9KB	Download
11HS20-0674D-PG14-AR4.STEP	1.67MB	Download
17HS15-1684D-HG10-AR4.STEP	2.19MB	Download
17HS15-1684D-HG50-AR4.STEP	2.21MB	Download
17LS19-1684E-200G-AR4.STEP	1.67MB	Download
14HS11-1004D-PG19-AR4.STEP	1.82MB	Download
23HS22-2804D-YGS50-AR4.STEP	2.48MB	Download
14HS11-1004D-PG19-AR4.SLDPRT	1.29MB	Download
DM320T_user_manual.pdf	775.41KB	Download
