S Series Nema 34 Stepper Motor 1.8deg 4.8Nm(679.74oz.in) 6.0A 86x86x78mm 4 Wires

0 reviews - Write a review

€27.43

5 + €26.38

10 + €25.41

50 + €24.51

100 + €23.68

In Stock: 10000
Model: 34HS30-6004S
Gross Weight: 2.52kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 76

Click country for real-time stock

Ships from

China

United States

Germany

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

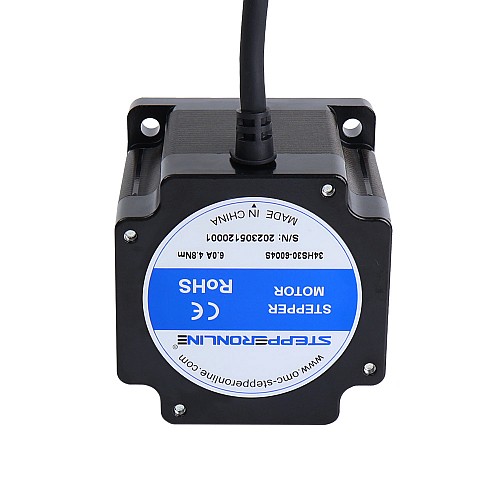

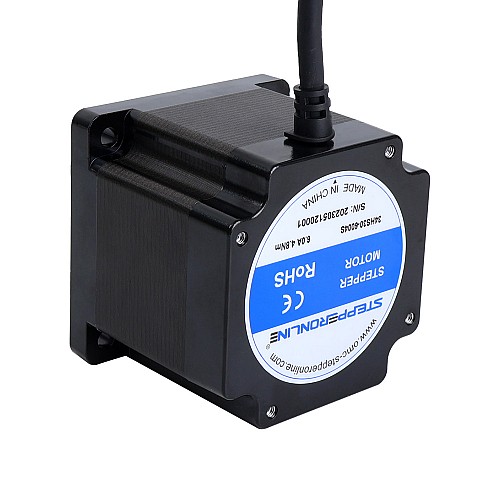

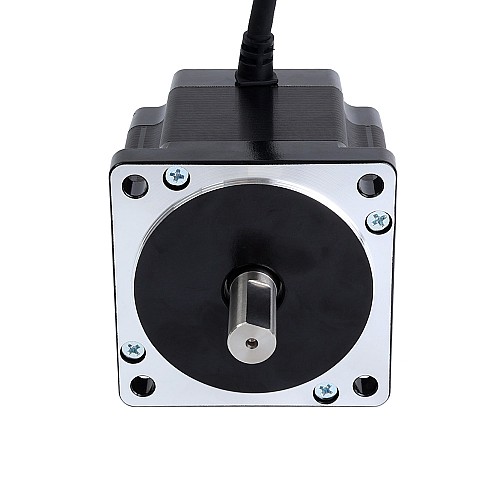

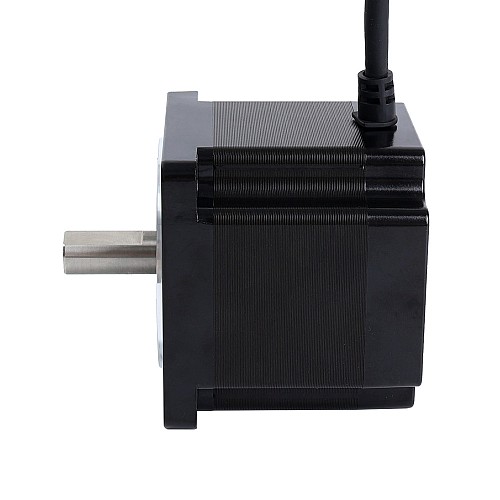

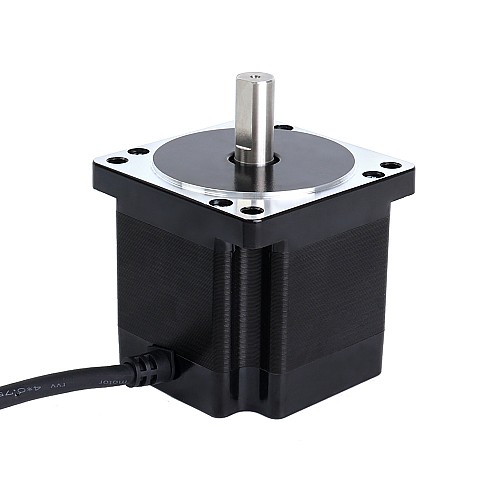

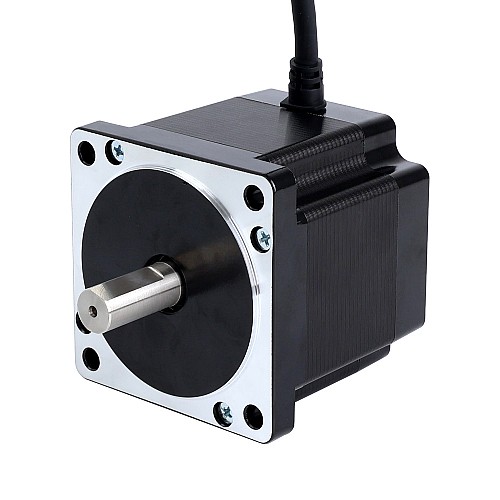

This is a Nema 34 stepper CNC motors with a step angle of 1.8deg and size of 86x86x78mm. It has 4 wires, draws 6.0A per phase and has a holding torque of 4.8Nm(679.74oz.in).

Electrical Specification

Manufacturer Part Number: 34HS30-6004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 4.8Nm(679.74oz.in)
Rated Current/Phase: 6.0A
Phase Resistance: 0.42ohms±10%
Inductance: 3.80mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 78mm
Shaft Diameter: Φ14mm
Shaft Length: 32mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 2320g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	480
Holding Torque(oz.in)	679.74
Inductance(mH)	3.8
Phase Resistance(ohms)	0.42
Rated Current(A)	6.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	78
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	32
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	2320
