TP Series 1 Axis Closed Loop Stepper CNC Kit 3Nm(424.83oz.in) Nema 24 Motor & Driver
C$139.11
5 + C$130.67
10 + C$123.21
50 + C$116.55
100 + C$110.57
  • In Stock: 10000
  • Model: 1-CL57T-P30-V41
  • Gross Weight: 2.40kg
  • Certificated: ISO, CE
Sold: 41

Click country for real-time stock

Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

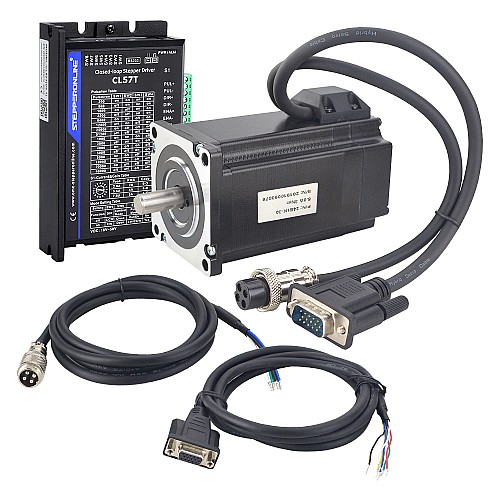

This CNC kit included:
  • 1 x 24E1K-30: P Series Nema 24 Closed Loop Stepper Motor 3Nm/424.83oz.in with Encoder 1000CPR
  • 1 x CL57T-V41: Closed Loop Stepper Driver V4.1 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
  • 1 x CABLE-PC-1: RS232 Debugging Cable
  • 1 x CE2M: 1.7m(67") Long Encoder Extension Cable for Closed Loop Stepper Motor
  • 1 x CM2M-20: RV-4 AWG20 1.7m(67") Long Motor Extension Cable with GX16 Aviation Plug

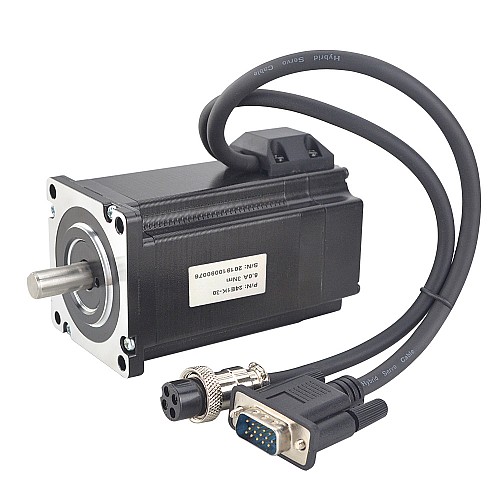

Motor Specification

  • Part Number: 24E1K-30
  • Number of phase: 2
  • Holding Torque: 3Nm(424.83oz.in)
  • Rated Current/phase: 5.0A
  • Phase Resistance: 0.45ohms
  • Inductance: 1.8mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 85mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 21mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 270mm
  • Insulation Class: B 130°C[266°F]

Encoder Specification

  • Output Circuit Type: Differential type
  • Output Signal Channels: 2 channels
  • Supply Voltage Min: 5V
  • Supply Voltage Max: 5V
  • Output High Voltage: <4V
  • Output Low Voltage: <1V

Driver Specification

  • Output Peak Current: 0~8A
  • Input Voltage: +24~48V DC(Typical 36V DC)
  • Logic Signal Current: 7~16mA(Typical 10mA)
  • Pulse Input Frequency: 0~200kHz
  • RS232 debugging interface available
  • Broader operating speed range
  • Reduced motor heating and more efficient
  • Smooth motion and super-low motor noise
  • Protections for over-voltage, over-current and position following error

Motor and Encoder Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-

Motor Extension Cable Connection

PIN
1
2
3
4
Color
Black
Green
Red
Blue

Encoder Extension Cable Connection

PIN
2
3
1
13
11
12
Color
Red
White
Black
Blue
Yellow
Green
PLEASE NOTE: The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected.
The CL57T in this kit is the latest 4.1 version, which compared to the 4.0 version, opens up the RS232 interface and provides a debugging cable for free, making it more convenient to configure parameters.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Product Type
Product Type Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 300
Holding Torque(oz.in) 424.83
Input Voltage Reference(V) 24 - 48DC
Input Voltage(V) 18 - 50DC
Number of Axes 1
Physical Specification
Body Length(mm) 85
Frame Size(mm) Nema 24 (60 x 60)
Inventory Method Dedicated Inventory
Output Shaft Type D
Power Supply No
Product Series TP Series
Shaft Diameter(mm) 10
Shaft Length(mm) 21




File Size
Software_manual.pdf 269.98KB Download
MotionStudio_v1.4.10.rar 14.35MB Download
CL57T-V41_Manual.pdf 1.22MB Download
24E1K-30.STEP 7.63MB Download
24E1K-30_Full_Datasheet.pdf 182.61KB Download
24E1K-30_Torque_Curve.pdf 185.96KB Download
