Nema 14 High Temp Stepper Motor 10Ncm(14.16oz.in) Insulation Class H 180C

4 reviews - Write a review

C$15.98

5 + C$15.10

10 + C$14.31

50 + C$13.62

100 + C$12.96

In Stock: 10000
Model: 14RE08-1004S-H
Gross Weight: 0.15kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 361

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

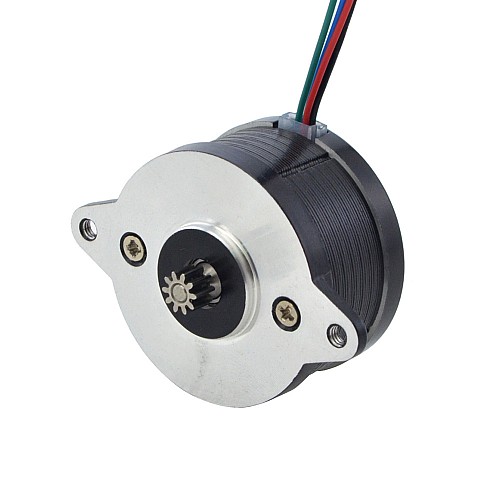

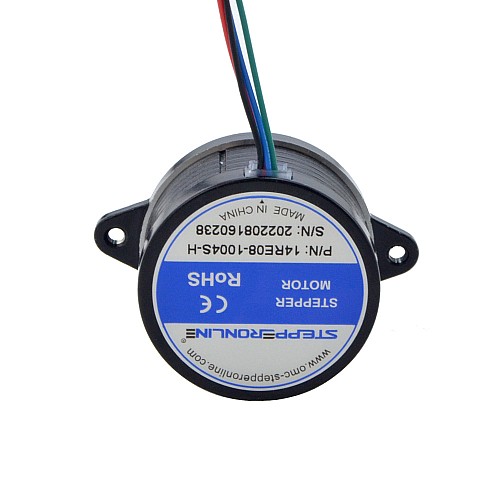

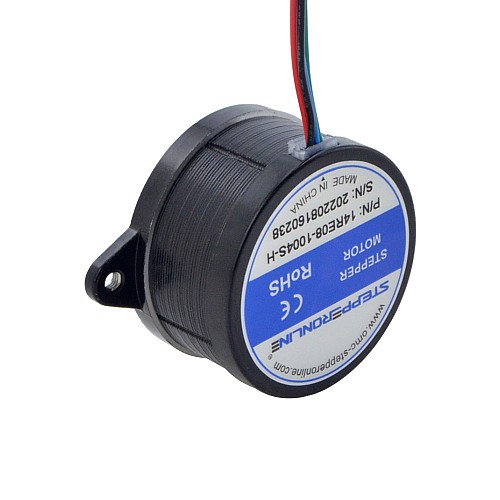

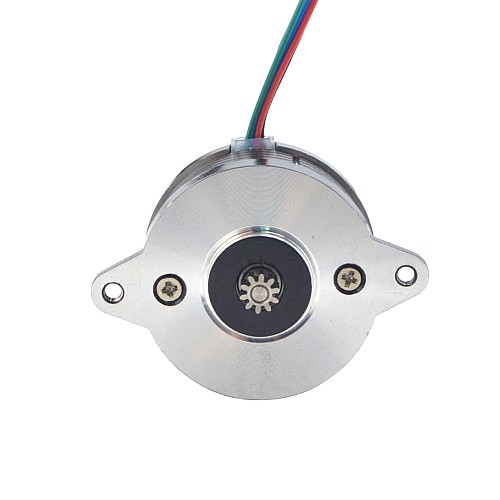

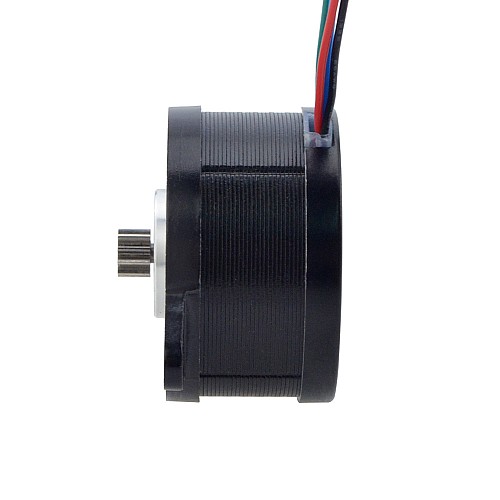

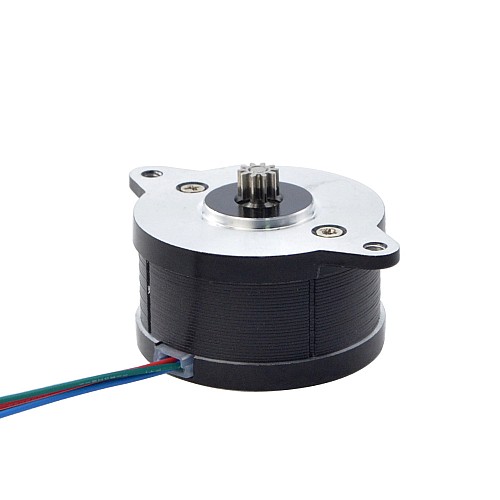

This motor is designed for high temperature application. We have customized motor's winding, bearing, magnetic steel and also the plastic skeleton to achieve insulation class of H, the temperature reach up to 180Cdegree. This motor is widely used in 3D Printer.

Electrical Specification

Manufacturer Part Number: 14RE08-1004S-H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 10Ncm(14.16oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 2.1ohms
Inductance: 1.1mH±20%(1KHz)
Insulation Class: H 180C(356F)

Physical Specification

Frame Size: Φ36mm
Body Length: 21mm
Shaft Diameter: Φ2.5mm
Shaft Length: 6mm
Number of Teeth: 10
Pitch Diameter: Φ5mm
Addendum Circle Diameter: Φ6mm
Pressure Angle: 20°
Pully Material: SUS304
Number of Leads: 4 with connector PH-4
Cable Length: 1000mm

Connection

A+	A-	B+	B-
Red	Green	Black	Blue

Product Type
Product Type	High Temp Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	10
Holding Torque(oz.in)	14.16
Inductance(mH)	1.1
Insulation Class	H 180C(356F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	2.1
Rated Current(A)	1.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	21
Cable Length(mm)	1000
Frame Size(mm)	Nema 14 (Φ36)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	2.5
Shaft Length(mm)	6
Single Shaft/Dual Shaft	Single Shaft
