EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 8 Stepper Motor

0 reviews - Write a review

€56.74

5 + €53.79

10 + €51.14

50 + €48.74

100 + €46.54

In Stock: 10000
Model: EGS8-G100
Gross Weight: 0.13kg
Certificated: ISO, CE, REACH

Sold: 4

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

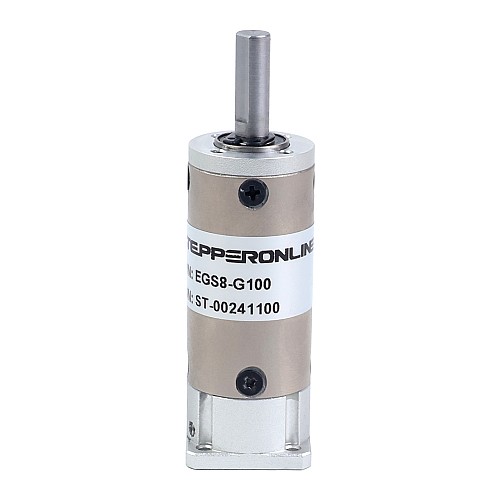

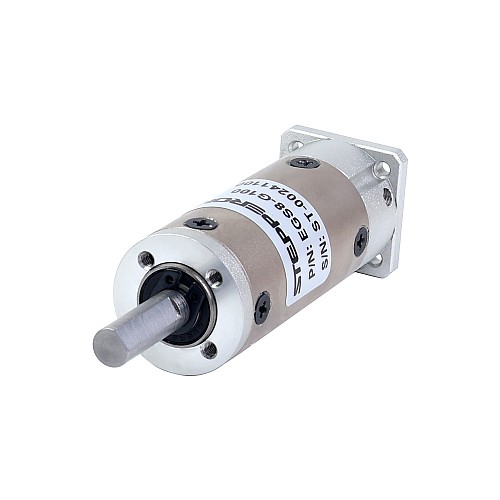

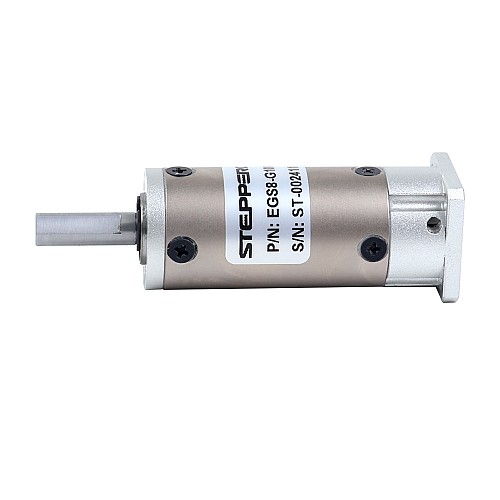

This is the smallest planetary gearbx for Nema 8 stepper motor with a gear ratio of 100:1, a maximum backlash of 25arc-min and an input disameter of 4mm. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Gearbox Specifications

Part Number: EGS8-G100
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 100:1
Efficiency: 90%
Backlash at No-load: <=25arcmin
Max.Permissible Torque: 6Nm(53.1lb-in)
Moment Permissible Torque: 12Nm(106.21lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 22 x 22mm
Gearbox Length: 56mm

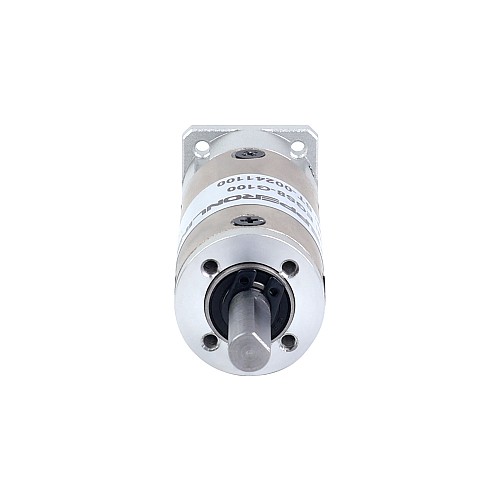

Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 19.5mm
Input Shaft Diameter: Φ4mm
Input Shaft Length: 6.5-10.5mm

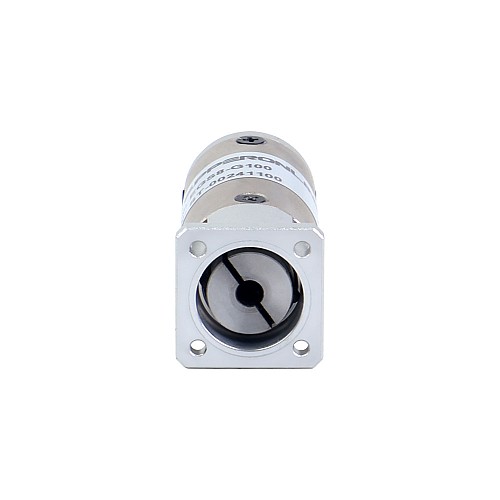

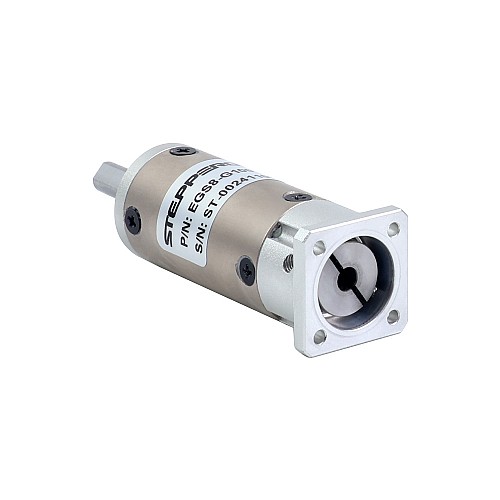

This in-line planetary gearbox has a built-in input shaft coupling and can only match Nema 8 stepper motors with a diameter of 4mm and a shaft length of 6.5-10.5mm.

Physical Specification
Backlash at No-load	<=25arcmin
Frame Size(mm)	22 x 22
Gear Material	Alloy Steel
Gear Ratio(xx:1)	100
Gearbox Length(mm)	56
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	4
Input Shaft Length(mm)	6.5 - 10.5
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 08 Stepper Motor
Output Shaft Diameter(mm)	6
Output Shaft Length(mm)	19.5
Output Shaft Type	D
Product Series	EG
