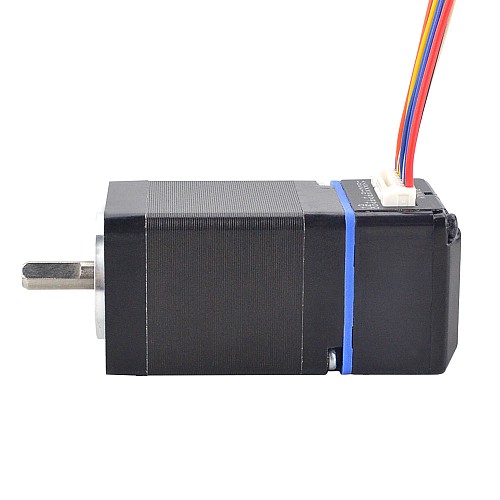

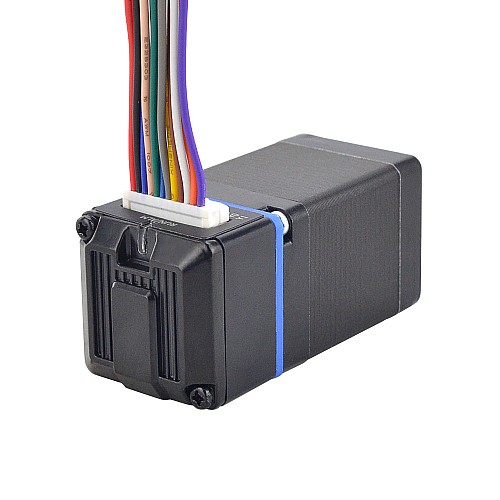

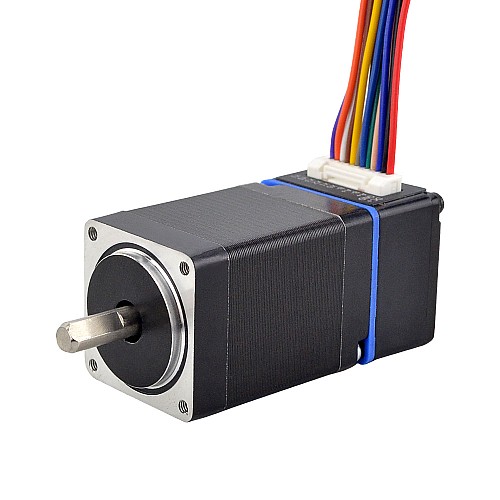

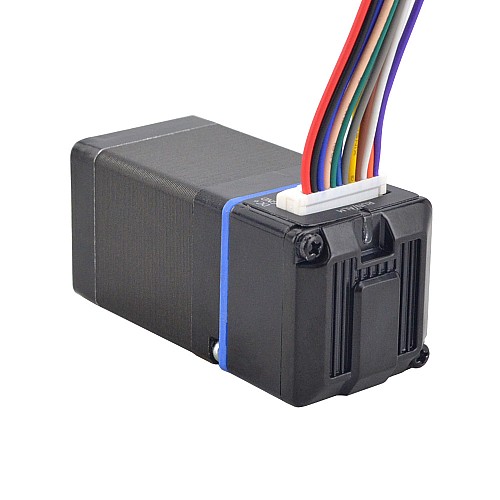

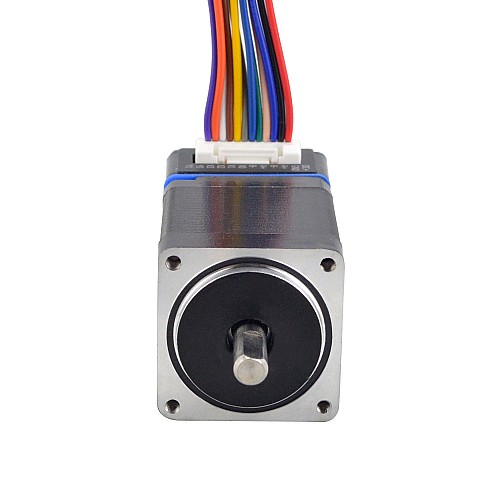

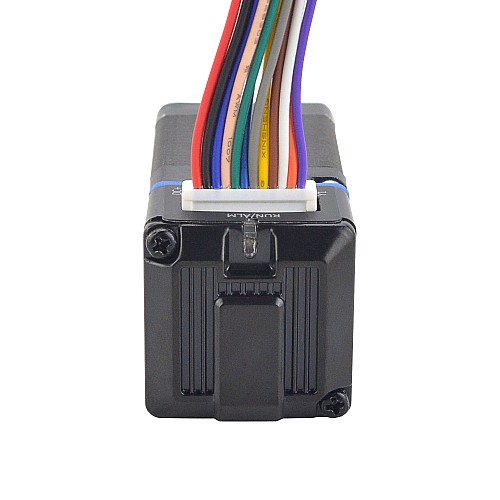

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated RS-485 Stepper Motor 24VDC 5000CPR

Features

• Using a new 32-bit motor control, dedicated DSP chip
• Support standard MODBUS-RS485 protocol, RS485 Communication
• Four input and two output function terminals
• Small torque attenuation,speed up to 3000rpm
• Built-in alarm output, for monitoring and controlling
• Intelligently adjust current, reduce vibration, noise and this can increase efficiency by 35%
• Voltage range: DC 24V
• 16 selectable microstep solutions, default microstep resolution: 1000
• Excellent high speed performance and rigidity, combined with advantages of servo motor and stepper motor
• Over-voltage, under-voltage and over-current protection
• Drive and motor integrated, simple wiring

Electrical Specifications:

• Manufacturer Part Number: ESS11-01PR
• Holding Torque: 7.4Ncm(10.48oz.in)
• Input Voltage: 24VDC
• Insulation Class: B 130°C[266°F]
• Output Peak Current: 0.6 - 1.2A
• Logic Input Current: 10mA
• Logic Input Voltage: 5V
• Encoder Type: Incremental
• Encoder Output Type: Differential
• Encoder Resolution: 4096CPR
• Encoder Output Signal Channels: 2
• Isolation Resistance: More than 100MΩ
• Dielectric strength: 500VAC for 1MIN.

Physical Specifications:

• Frame Size: 20 x 20mm
• Body Length: 38.9mm
• Shaft Diameter: Φ5mm
• D-cut Shaft Length: 10mm
• Shaft Length: 15mm

Connector Specification

• Housing Model: 502380-1200
• Terminal Model: 5023810000

Connection
