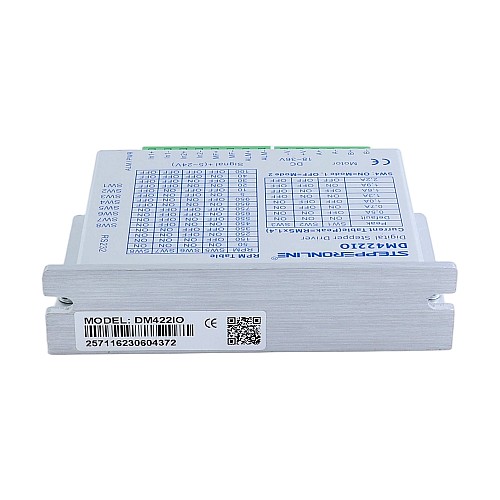

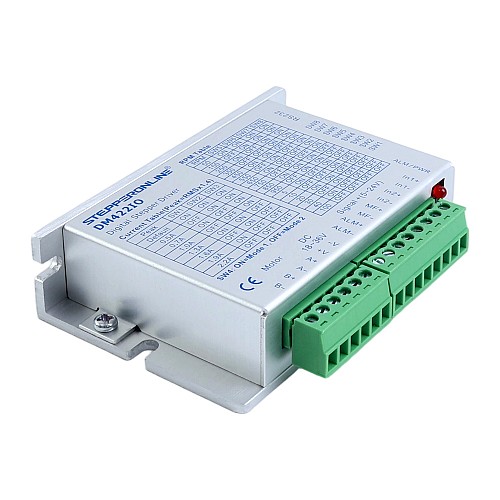

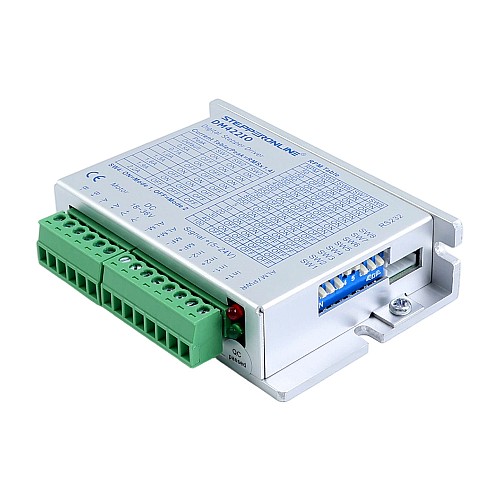

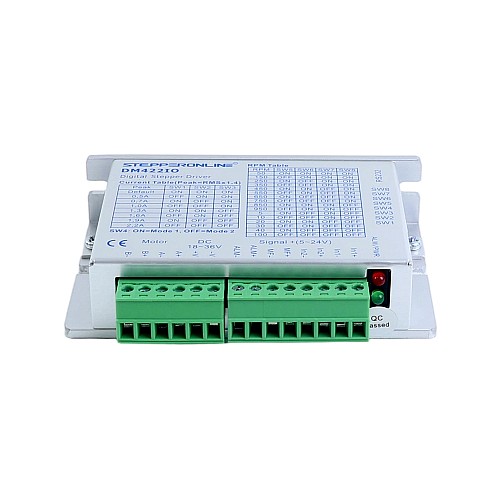

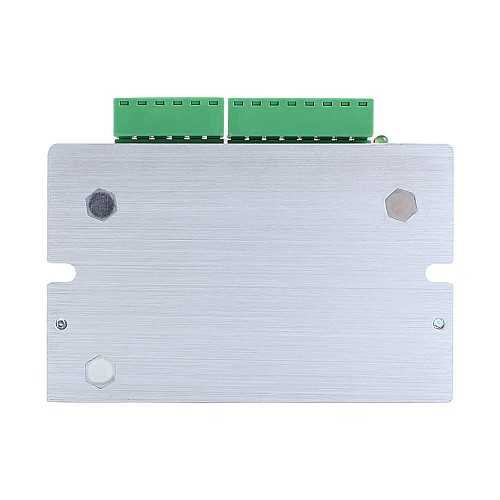

I/O Control Stepper Driver 0-2.2A 18-36VDC for Nema 11, 14, 17 Stepper Motor

This is a stepper driver support I/O (Input/Output) control modes. It delivers superior performance with a current range of 0–2.2A and an operating voltage of 18–36VDC, making it ideal for Nema 11, 14, 17 stepper motors.
This advanced 32-bit DSP-controlled stepper driver delivers high performance at competitive cost. It features 3 opto-isolated digital inputs (5V/24V compatible) with flexible wiring options. The innovative resonance suppression algorithm ensures smooth low-to-mid speed operation, while precise current control minimizes motor heating. Dual start-stop modes and comprehensive protection (over-voltage/current, error equalization) ensure reliable operation for industrial automation and precision motion control.

Key Features

• Next-generation 32-bit DSP control technology delivers superior performance and exceptional cost-efficiency
• Three optically-isolated digital inputs with 5V/24V compatibility, supporting both sinking and sourcing configurations
• Advanced resonance suppression algorithm ensures exceptional smoothness at low-to-medium speeds
• Precision current control technology minimizes motor heating while maintaining optimal torque

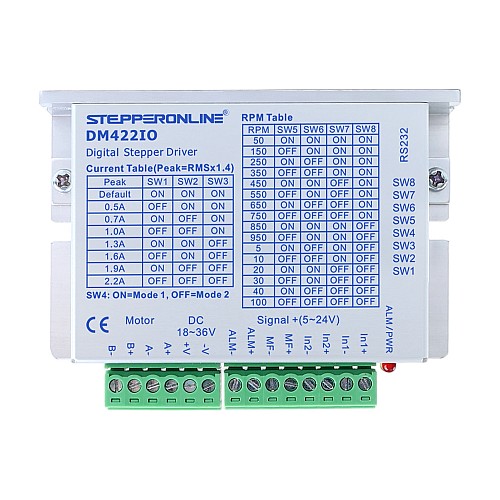

• Configurable operation with 8 current levels and 16 speed settings for versatile applications
• Comprehensive PC software enables real-time adjustment of current, speed, and acceleration/deceleration parameters
• Dual-mode start/stop control for flexible operation scenarios
• Automatic motor parameter identification for quick setup and optimization
• Phase memory function maintains position integrity during power cycles
• Configurable holding current (default: 50% of running current) via host computer
• Integrated protection against over-voltage, under-voltage, over-current, and position errors

Electrical Specifications

• Continuous Output Current: 0 - 2.2A
• Input Voltage: 18 - 36VDC(Typical 24V)
• Logic Input Current: 7 - 20mA(Typical 10mA)
• Isolation Resistance: 50MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling
• Environment: Stay away from other heating equipment and avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust
• Temperature: 0℃ - 50℃
• Humidity: 40%RH - 90%RH(non-condensation)
• Vibration: 10 - 55Hz/0.15mm
• Storage Temperature: -20℃ - 70℃

Packing List

• 1 x DM422IO Driver
• 1 x CABLE-PC-2 (RS232 debugging cable)
