Keyway Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1204oz.in) 5A 86x86x114mm

1 reviews - Write a review

C$48.26

5 + C$46.62

10 + C$45.08

50 + C$43.63

100 + C$42.28

In Stock: 10000
Model: 34HS46-5004D1
Gross Weight: 4.01kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

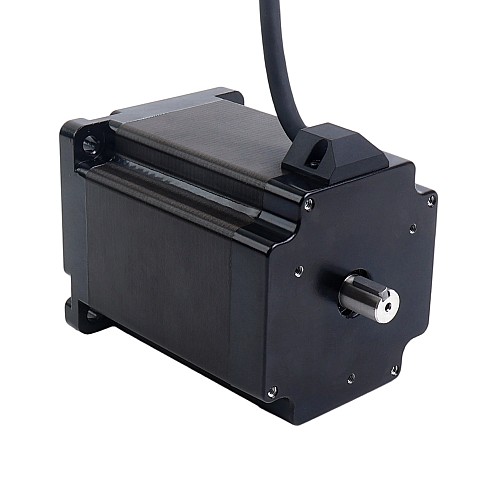

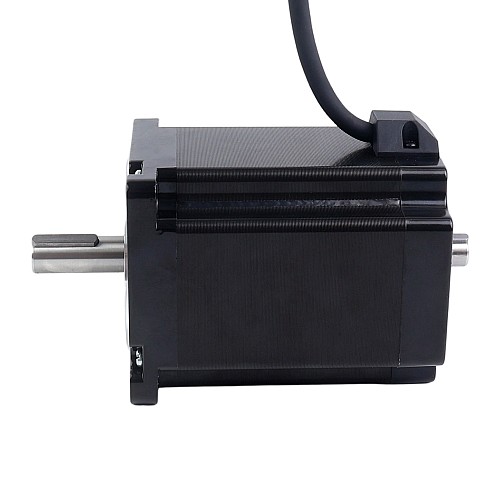

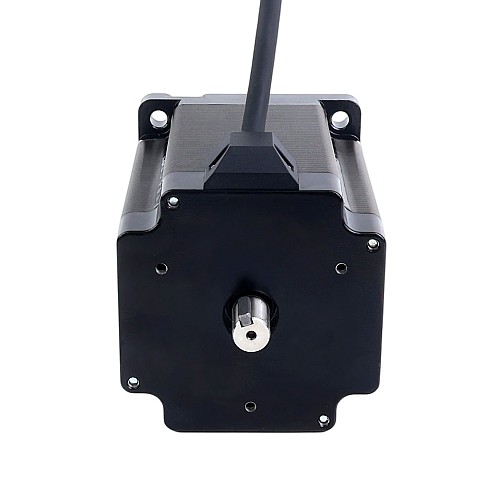

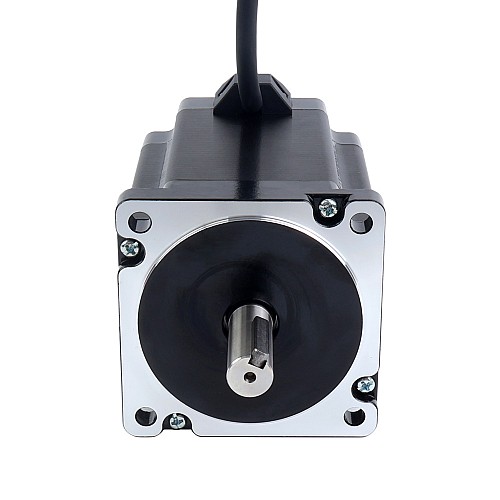

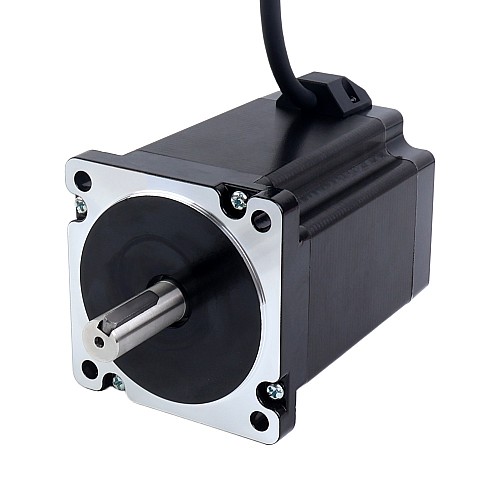

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 8.5Nm(1204oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

Manufacturer Part Number: 34HS46-5004D1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1204oz.in)
Rated Current/phase: 5A
Phase Resistance: 1ohms
Inductance: 8.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Rear Shaft Length: 15mm
Rear Shaft Diameter: 12mm
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1204
Inductance(mH)	11
Phase Resistance(ohms)	1
Rated Current(A)	5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	114
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	4000
