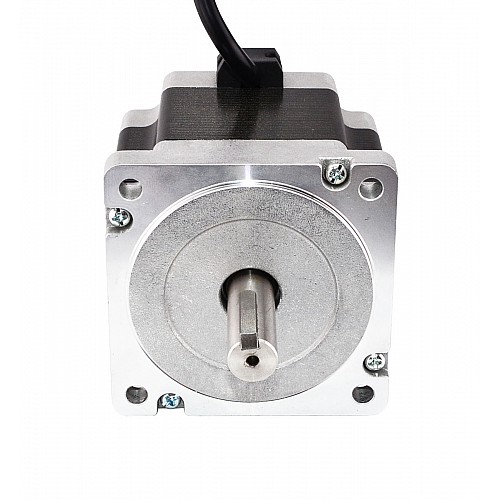

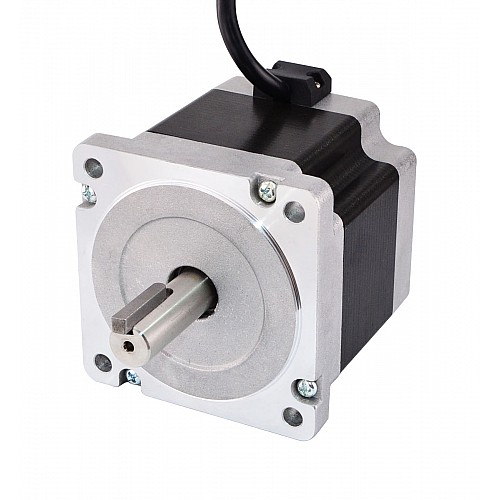

Keyway Dual Shaft Nema 34 CNC Stepper Motor 4.5Nm(637.25oz.in) 5.5A 86x86x80mm

1 reviews - Write a review

C$47.95

5 + C$46.31

10 + C$44.78

50 + C$43.35

100 + C$42.00

In Stock: Pre-order
Model: 34HS31-5504D
Gross Weight: 2.54kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

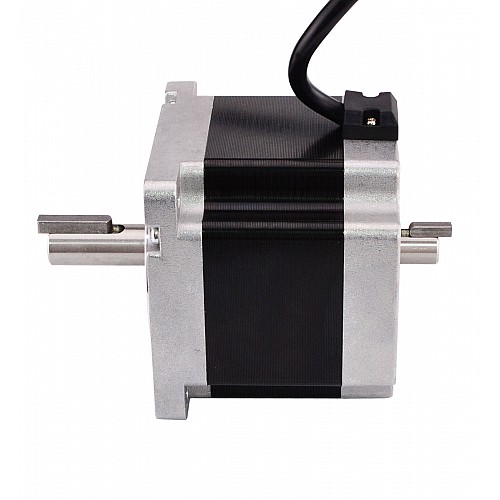

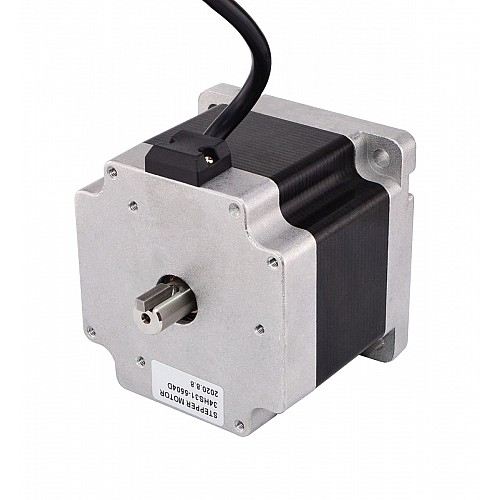

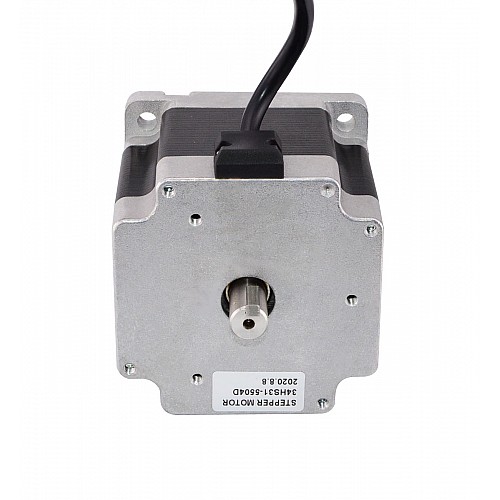

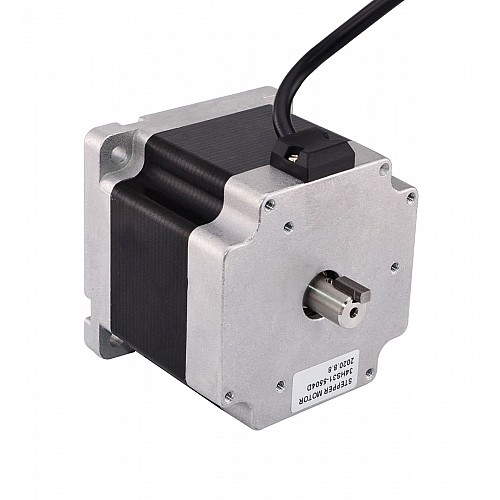

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 4.5Nm(637.25oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

Manufacturer Part Number: 34HS31-5504D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 4.5Nm(637.25oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.4ohms
Inductance: 3.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 80mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Rear Shaft Length: 15mm
Rear Shaft Diameter: 12mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Red	Black	Yellow	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	450
Holding Torque(oz.in)	637.25
Inductance(mH)	3.5
Phase Resistance(ohms)	0.4
Rated Current(A)	5.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	80
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	2500
