LA12 Series Belt Driven Max. Horizontal Payload 25kg Stroke 500mm for Servo Motor

0 reviews - Write a review

C$523.64

5 + C$510.04

10 + C$497.21

50 + C$485.08

100 + C$473.61

In Stock: 10000
Model: LA12-60LL40S3-500
Gross Weight: 17.08kg

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

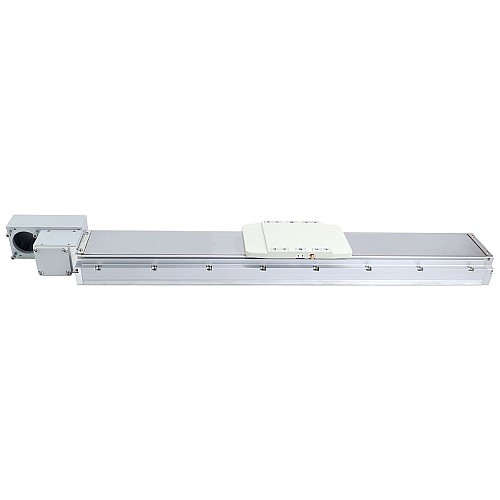

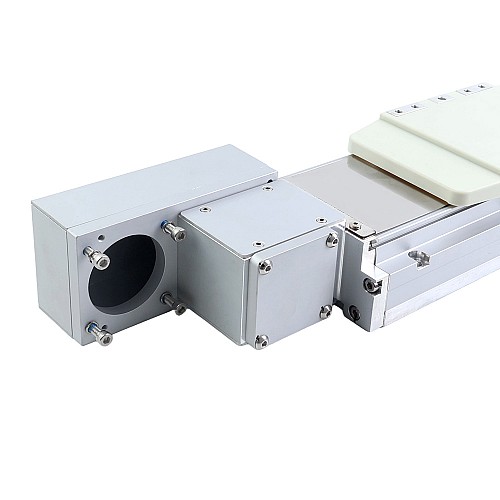

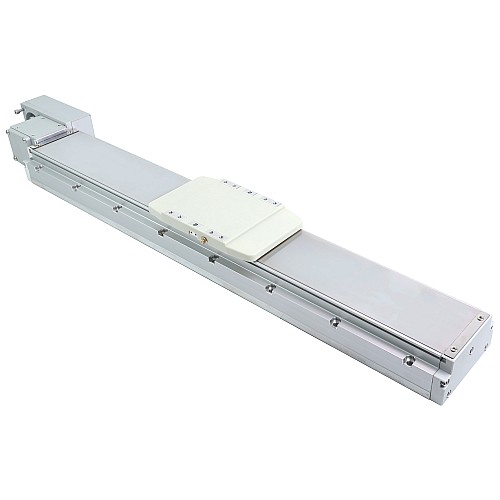

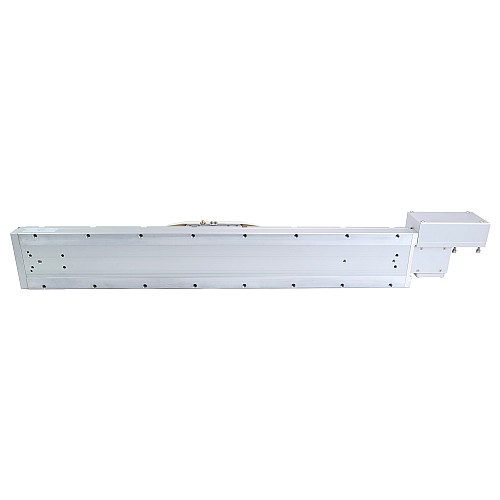

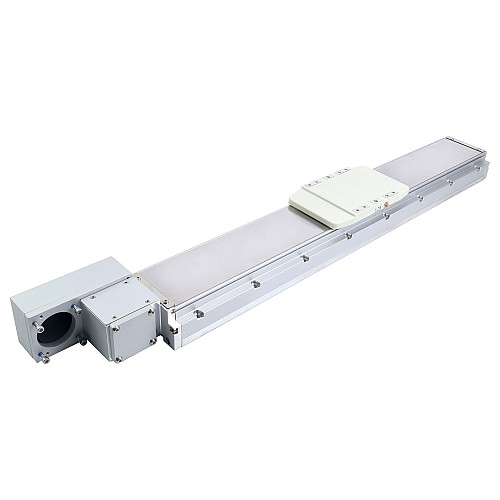

This LA12 series belt driven dustproof linear actuator offers a maximum horizontal payload of 25kg(55.12lb), a stroke length of 500mm(1.64ft) and maximum speed of 2000mm/s(6.56ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LA12-60LL40S3-500
Position Accuracy: ± 0.04mm
Lead: 40mm(0.13ft)
Maximum Speed: 2000mm/s(6.56ft/s)
Maximum Horizontal Payload: 25kg(55.12lb)
Rated Thrust: 100N

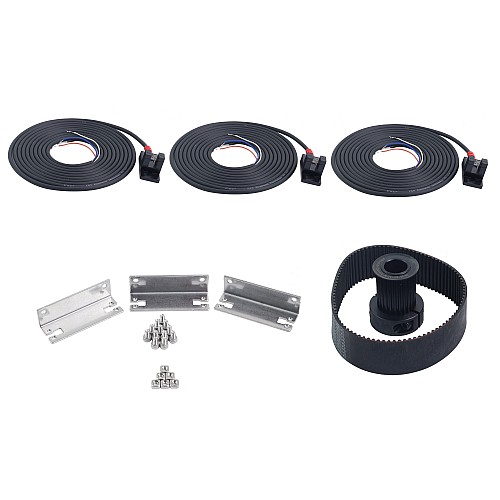

Sensor Type: NPN
Number of Sensors: 3
Belt Width: 22mm
Motor Frame: 60mm Servo Motor(400W)
Stroke Length: 500mm(1.64ft)
Input Shaft Length: 37mm
Input Shaft Diameter: 14mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS400H2A1-M17 and A6-RS400H2B1-M17(with brake)
EC Series: A6-EC400H2A1-M17 and A6-EC400H2B1-M17(with brake)
PN Series: A6-PN400H2A1-M17 and A6-PN400H2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS400L2A2-M17S and DSY-RS400L2B2-M17S(with brake)
C Series: DSY-C400L2A2-M17S and DSY-C400L2B2-M17S(with brake)

Physical Specification
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	37
Inventory Method	Dedicated Inventory
Lead(mm/ft)	40/0.13
Linear Motor Type	Built-in belt
Max. Horizontal Payload(kg/lb)	25/55.12
Max. Speed(ft/s)	6.56
Max. Speed(mm/s)	2000
Motor Mounting Flange	60mm Servo Motor
Motor Mounting Position	Left Fold
Rated Thrust(N)	100
Stroke Length(mm/ft)	500/1.64
Transmission Method	Belt Driven
