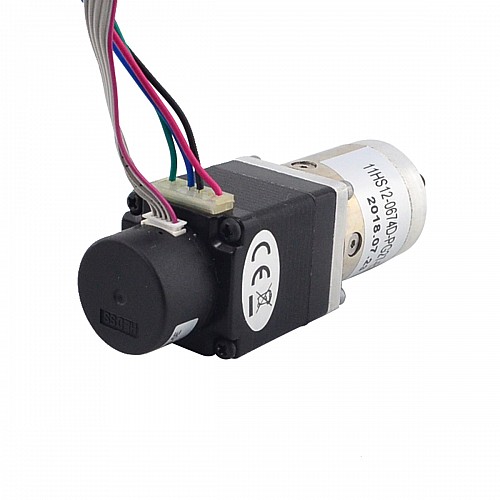

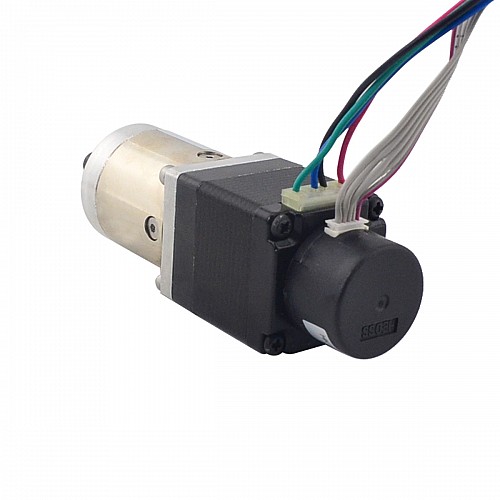

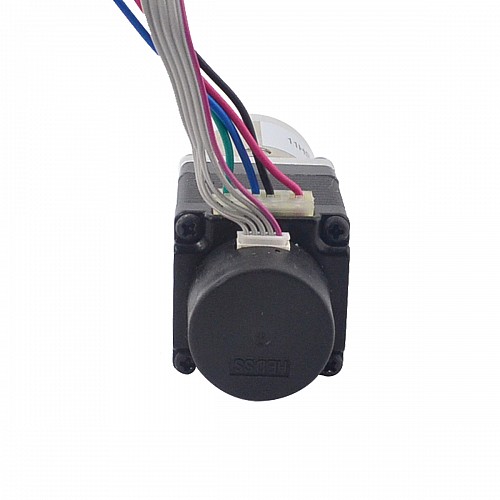

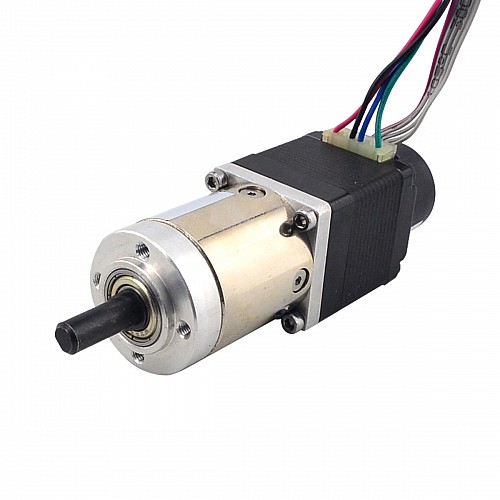

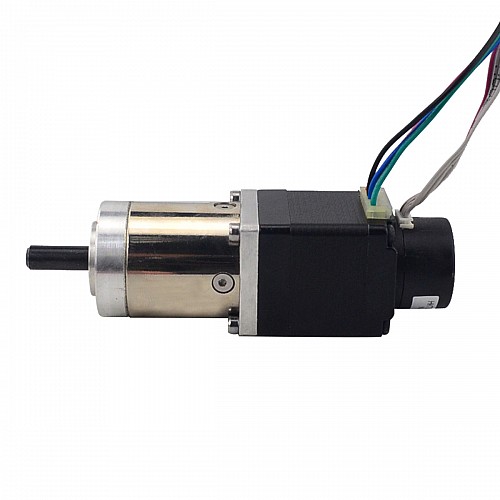

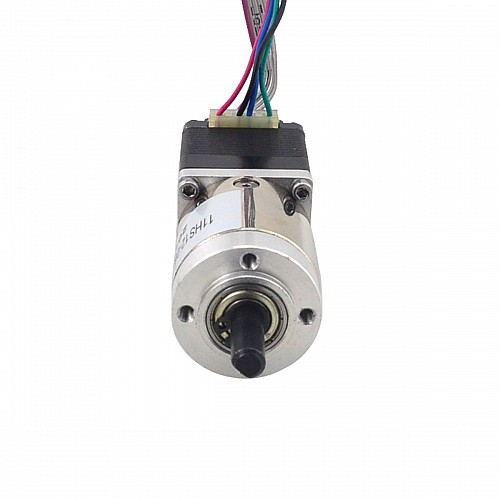

Nema 11 Closed-loop Geared Stepper L=31mm Gear Ratio 27:1 Encoder 300PPR

1 reviews - Write a review

C$92.43

5 + C$88.09

10 + C$84.12

50 + C$80.51

100 + C$77.18

In Stock: Pre-order
Model: 11HS12-0674D-PG27-E22-300
Gross Weight: 0.29kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 46

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Motor Specification

Manufacturer Part Number: 11HS12-0674D-PG27-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.07Nm(9.91oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.60ohms
Voltage: 3.75V
Inductance: 4.00mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 35mm
Gear Ratio: 26.85:1
Efficiency: 80%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-Cut length: 12mm
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Encoder Specification

Encoder Type: Optical Incremental
Supply Voltage : 5VDC
Output current : ≤20mA
Resolution: 300PPR
Output Signal: 2Channels
Shaft Diameter: Φ4mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	4	5
Encoder	0V	N.C	Ch B	+5V	Ch A

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	7
Inductance(mH)	4
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Phase Resistance(ohms)	5.6
Rated Current(A)	0.67
Stepper Motor with	Encoder/Gearbox
Physical Specification
Body Length(mm)	32
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	27
Gearbox Type	PG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18

File	Size
11HS12-0674D-PG27-E22-300.STEP	1.25MB	Download
11HS12-0674D-PG27-E22-300_Torque_Curve.pdf	142.84KB	Download
11HS12-0674D-PG27-E22-300_Full_Datasheet.pdf	145.05KB	Download
