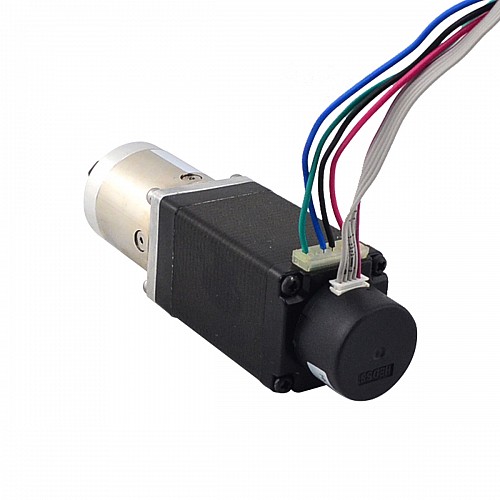

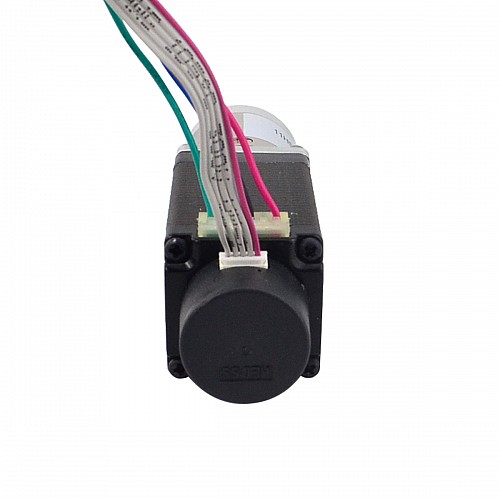

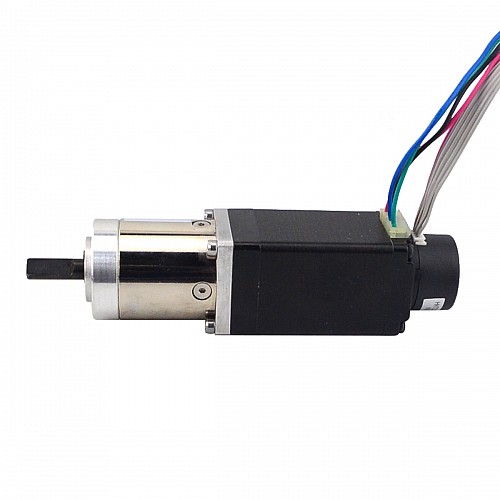

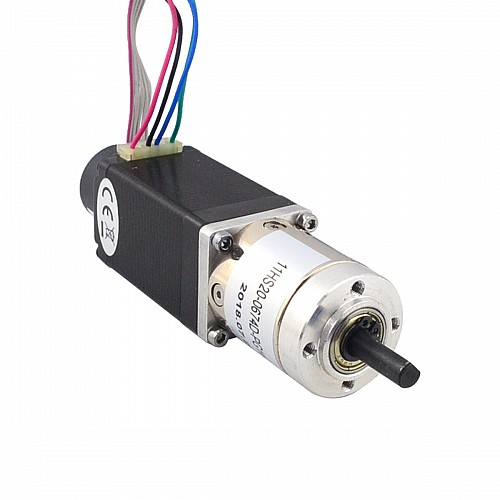

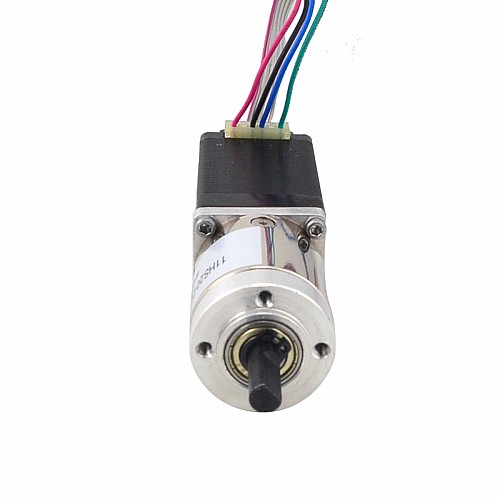

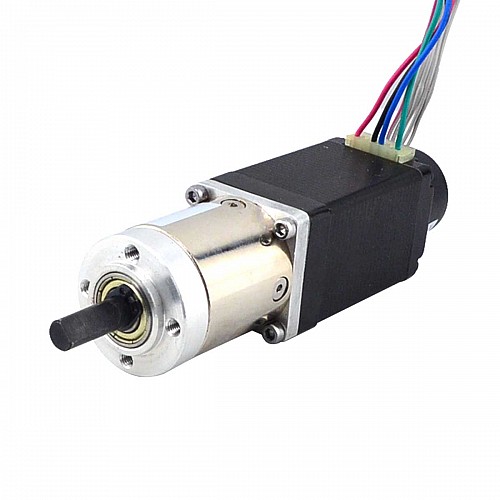

Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 14:1 Encoder 300PPR

0 reviews - Write a review

C$92.43

5 + C$88.09

10 + C$84.12

50 + C$80.51

100 + C$77.18

In Stock: Pre-order
Model: 11HS20-0674D-PG14-E22-300
Gross Weight: 0.39kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Motor Specification

Manufacturer Part Number: 11HS20-0674D-PG14-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.14Nm(19.83oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12.00ohms
Voltage: 8.04V
Inductance: 6.50mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 35mm
Gear Ratio: 13.73:1
Efficiency: 80%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-Cut length: 12mm
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.92oz.in)
Moment Permissible Torque: 5Nm(708.2oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Encoder Specification

Encoder Type: Optical Incremental
Supply Voltage : 5VDC
Output current : ≤20mA
Resolution: 300PPR
Output Signal: 2Channels
Shaft Diameter: Φ4mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	4	5
Encoder	0V	N.C	Ch B	+5V	Ch A

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	14
Inductance(mH)	6.5
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Phase Resistance(ohms)	12
Rated Current(A)	0.67
Stepper Motor with	Encoder/Gearbox
Physical Specification
Body Length(mm)	51
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	14
Gearbox Type	PG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
