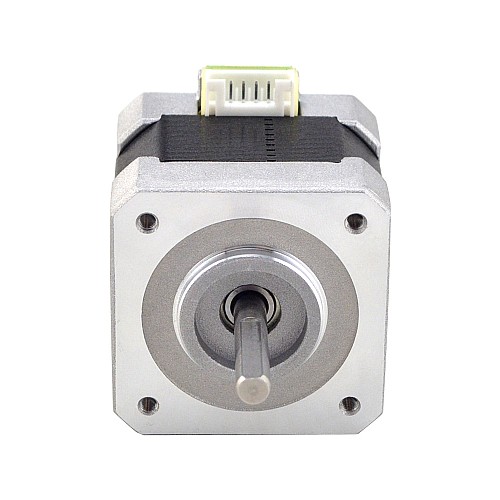

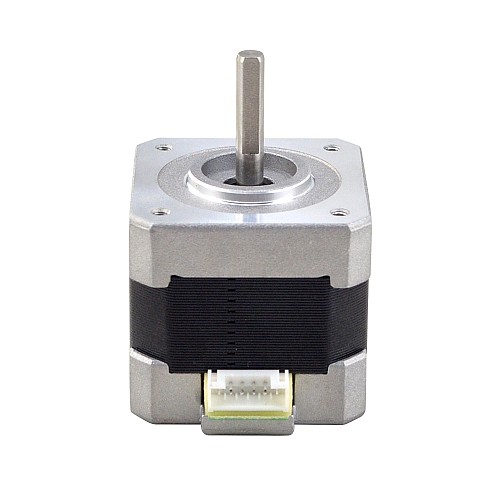

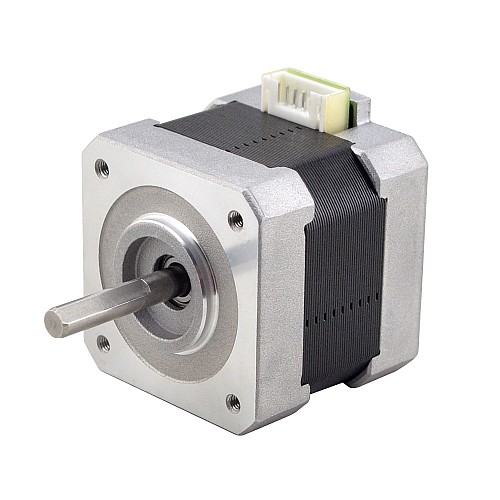

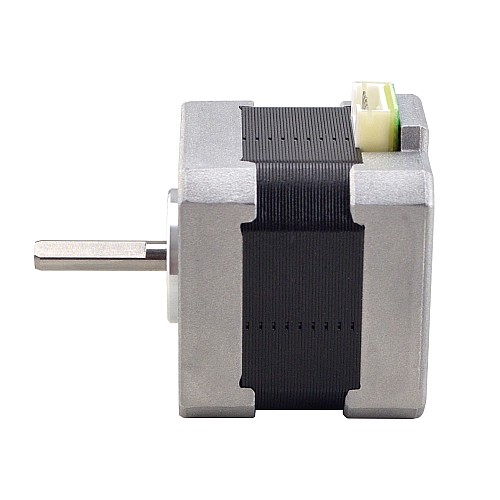

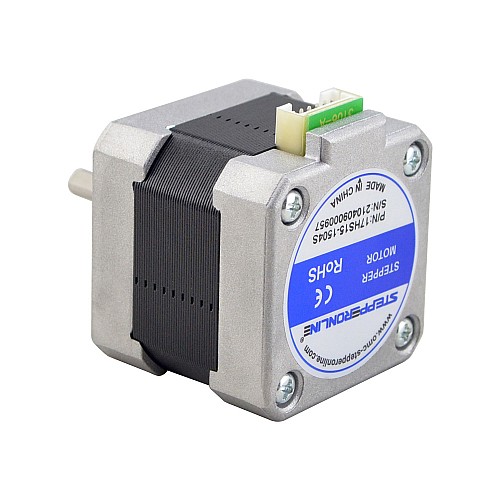

Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
2 reviews - Write a review
C$0.00
  • In Stock: 1
  • Model: 17HS15-1504S
  • Gross Weight: 0.32kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 2270
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

  • Manufacturer Part Number: 17HS15-1504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 42Ncm(59.49oz.in)
  • Rated Current/phase: 1.50A
  • Phase Resistance: 2.0ohms
  • Inductance: 3.9mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 39mm
  • Shaft Diameter: Φ5mm
  • D-cut Length: 18mm
  • Shaft Length: 23.5mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 280g

Connection

A+
A-
B+
B-
Black
Green
Blue
Red
Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS15-1504S1.
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 42
Holding Torque(oz.in) 59.49
Inductance(mH) 3.9
Phase Resistance(ohms) 2.0
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 39
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 1000
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 23.5
Single Shaft/Dual Shaft Single Shaft
Weight(g) 280



File Size
17HS15-1504S_Full_Datasheet.pdf 161.23KB Download
17HS15-1504S_Torque_Curve.pdf 124KB Download
