Nema 14 Non-captive 48mm Stack 0.91A Lead 1.27mm(0.05") Length 250mm

Discontinued

Nema 14 Non-captive 48mm Stack 0.91A Lead 1.27mm(0.05") Length 250mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 14N17S0914FF3-250RS
Gross Weight: 0.53kg
Certificated: ISO, CE, RoHS

Sold: 60

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

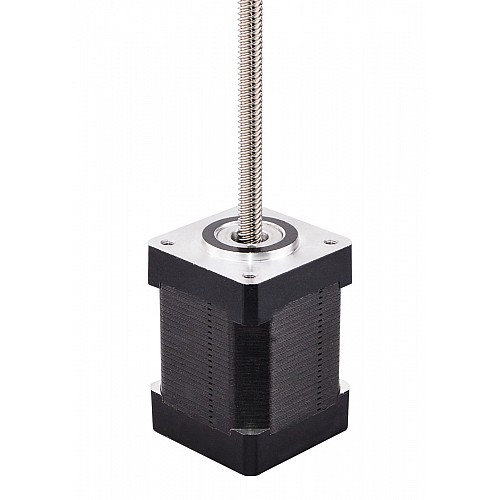

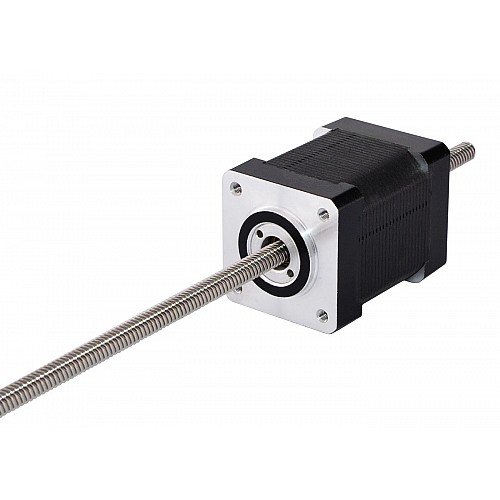

The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it works with a 6.35mm(0.25") diameter 250mm(9.8425") length lead screw, the linear travel is 1.27mm(0.05") per revolution. This model is almost exactly same as Haydon Kerk 35000 series size 14 double stack non-captive stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 14N17S0914FF3-250RS(14N17S0914FF-250RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 224N(300pps)
Rated Current/phase: 0.91A
Phase Resistance: 5.5ohms
Voltage: 5V
Inductance: 7.63mH±20%(1KHz)

Physical Specification

Frame Size: 35 x 35mm
Body Length: 48mm

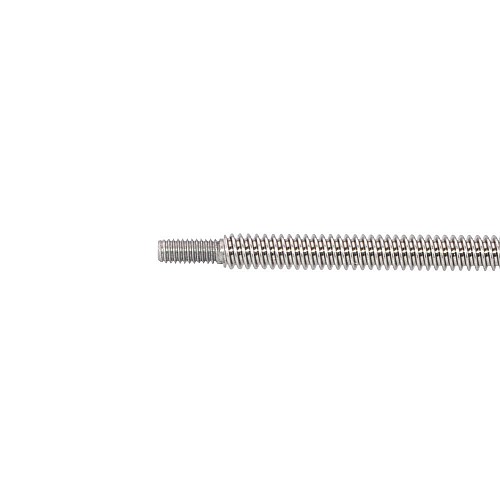

Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Cable Length: 300mm
Weight : 240g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	7.63
Minimal Thrust(N) @300pps	224
Phase Resistance(ohms)	5.5
Rated Current(A)	0.91
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	250
Lead Travel/Revolution(mm)	1.27
Lead Travel/Step(mm)	0.00635
Linear Motor Type	Non-Captive
No. of Lead	4
