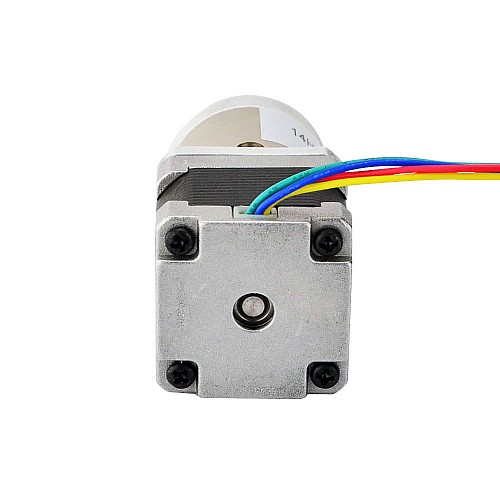

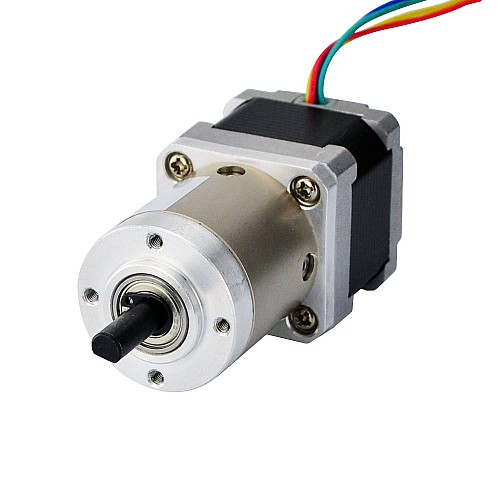

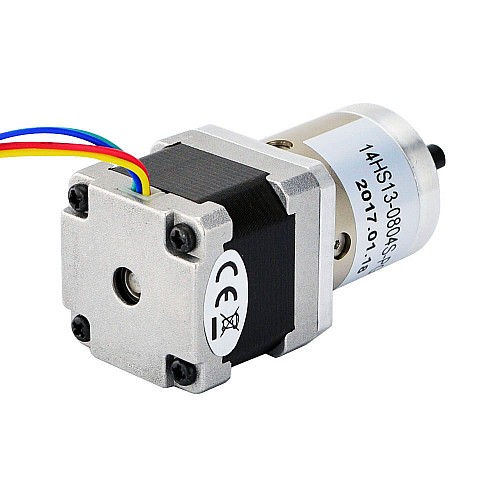

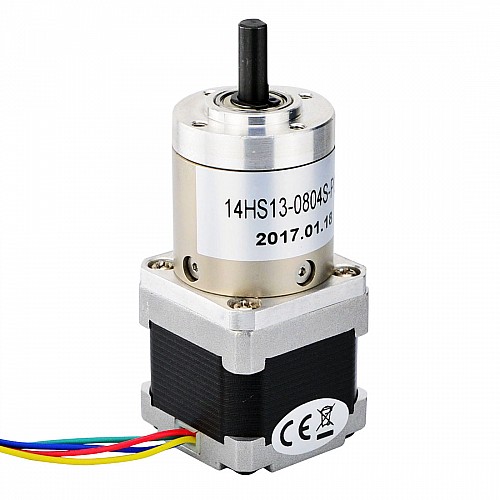

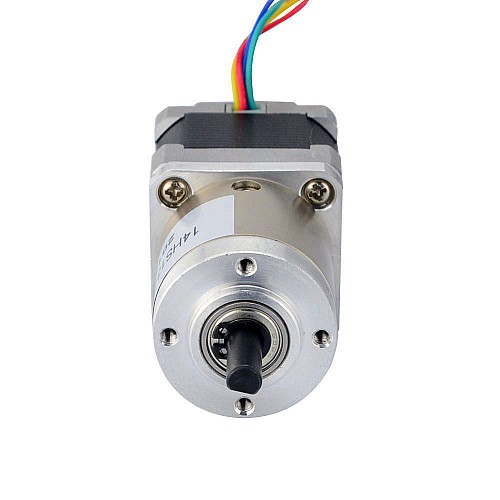

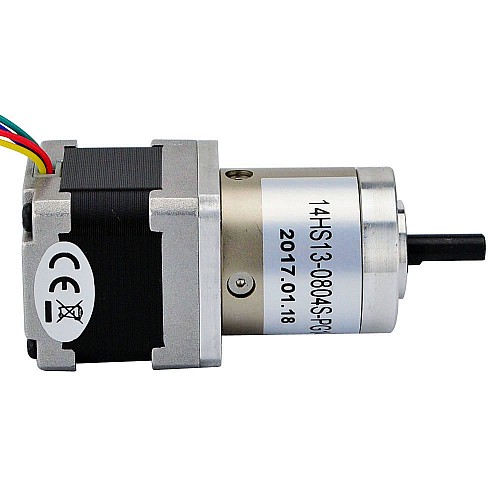

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 14:1 Planetary Gearbox

0 reviews - Write a review

C$51.68

5 + C$49.00

10 + C$46.58

50 + C$44.39

100 + C$42.39

In Stock: Pre-order
Model: 14HS13-0804S-PG14
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 14 stepper motor with 34mm body and 1.0A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 14HS13-0804S-PG14
Motor Type: Bipolar Stepper
Step Angle: 0.131deg
Holding Torque without Gearbox: 18Ncm(25.49oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 6.8ohms
Voltage: 5.4V
Inductance: 10mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 13.73:1
Gear Efficiency: 81%
Backlash at No-load: <=1deg
Max.Permissible Torque: 4Nm(566.4oz.in)
Moment Permissible Torque: 8Nm(1132.9oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 35 x 35mm
Motor Length: 34mm
Gearbox Length: 36.8mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 400g

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Current(A)	1.0
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.18
Physical Specification
Backlash at No-load	<=1deg
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	13.73
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Single Shaft/Dual Shaft	Single Shaft
