Nema 17 Closed Loop Stepper Motor 80Ncm(113.29oz.in) with Magnetic Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$26.70

5 + C$25.59

10 + C$24.58

50 + C$23.65

100 + C$22.78

In Stock: 10000
Model: 17HS24-2004-ME1K
Gross Weight: 0.61kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 25

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

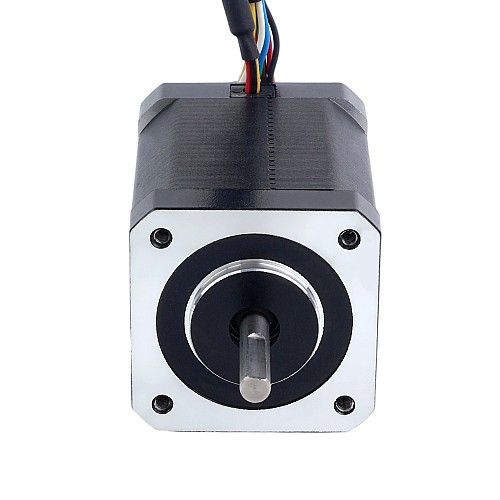

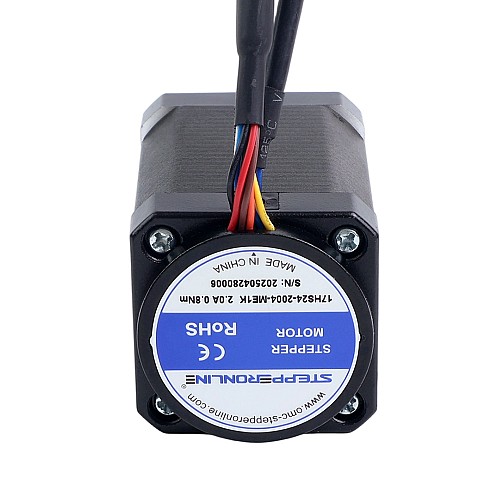

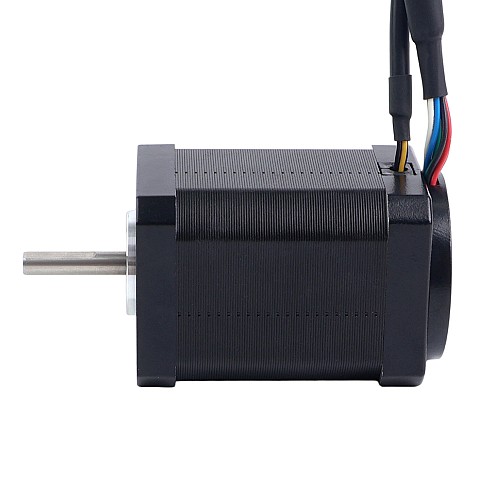

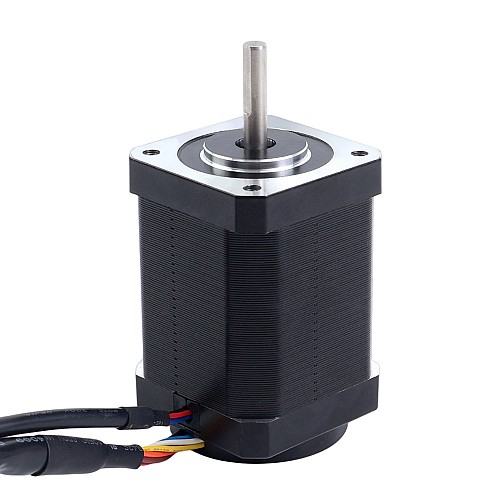

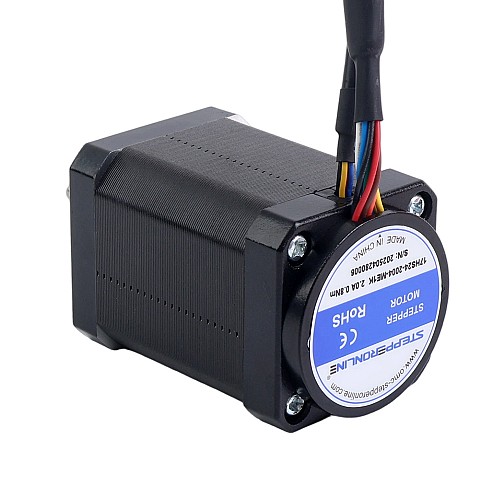

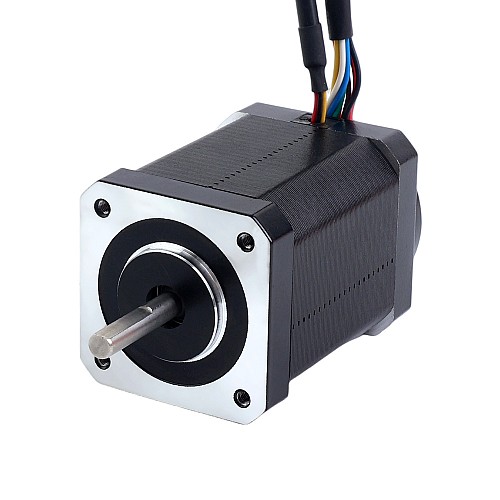

This Nema 17 closed-loop stepper motor delivers a holding torque of 80Ncm(113.29oz·in) and features a compact body length of 64.5mm. It integrates a high-resolution magnetic encoder with 3-channel output and 1000PPR(4000CPR), ensuring precise motion feedback.
The key advantages of the magnetic encoder are its compact size and cost-effectiveness, making it ideal for applications where space constraints and high performance-to-price ratio are critical.

Electrical Specification

Manufacturer Part Number: 17HS24-2004-ME1K
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 80Ncm(113.29oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.30ohms± 10%
Inductance: 2.70mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 64.5mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-CUT Shaft Length: 15mm
Cable Length: 500mm
Weight: 0.52kg

Encoder Specification

Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ

Motor and Encoder Connection

Motor	A+	A-	B+	B-
Wire	Red	Black	Yellow	Blue

Encoder	VCC	GND	EA+	EA-	EB+	EB-	EZ+	EZ-
Wire	Red	Black	Brown	Orange	Blue	Green	Yellow	White

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Magnetic Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	80
Holding Torque(oz.in)	113.29
Inductance(mH)	2.7
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	1.3
Rated Current(A)	2.0
Physical Specification
Body Length(mm)	64.5
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
