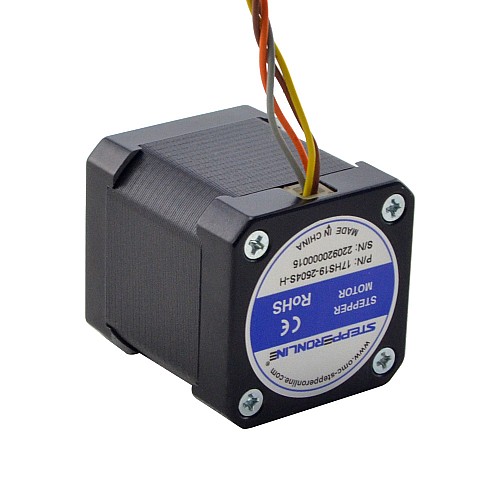

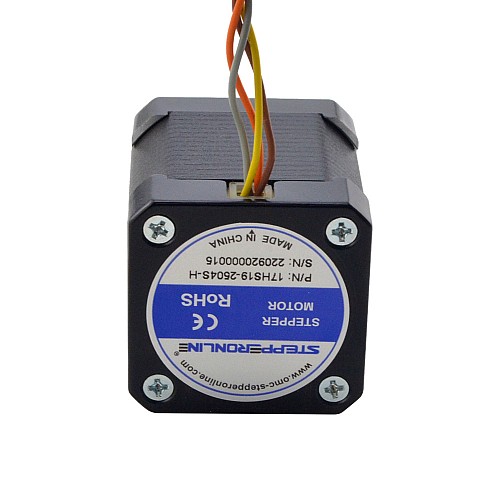

Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C

3 reviews - Write a review

C$26.63

5 + C$25.17

10 + C$23.86

50 + C$22.69

100 + C$21.62

In Stock: 10000
Model: 17HS19-2504S-H
Gross Weight: 0.43kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 352

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This custom-made high temperature rated NEMA 17 stepper motor is special for VORON printers. It offers a 1.8 degree step angle and high torque with a 48mm body length for use in environments up to 180C.

Electrical Specification

Manufacturer Part Number: 17HS19-2504S-H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 55Ncm(77.93oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 1.1ohms
Inductance: 1.6mH±20%(1KHz)
Insulation Class: H 180C(356F)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Cable Length: 1000mm

Connection

A+	A-	B+	B-
Gray	Brown	Orange	Yellow

Product Type
Product Type	High Temp Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	55
Holding Torque(oz.in)	77.93
Inductance(mH)	1.6
Insulation Class	H 180C(356F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	1.1
Rated Current(A)	2.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Cable Length(mm)	1000
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
