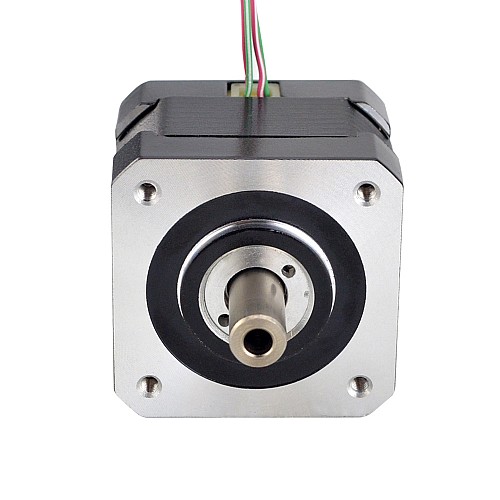

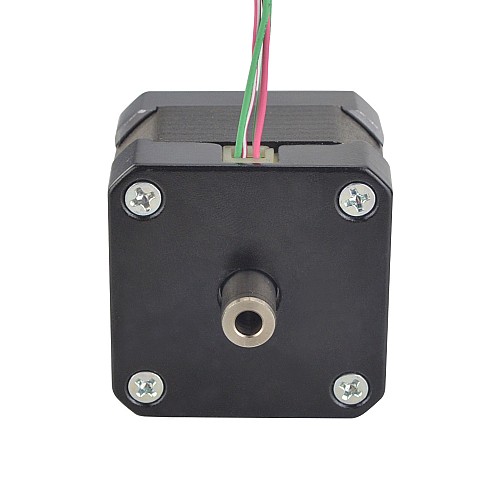

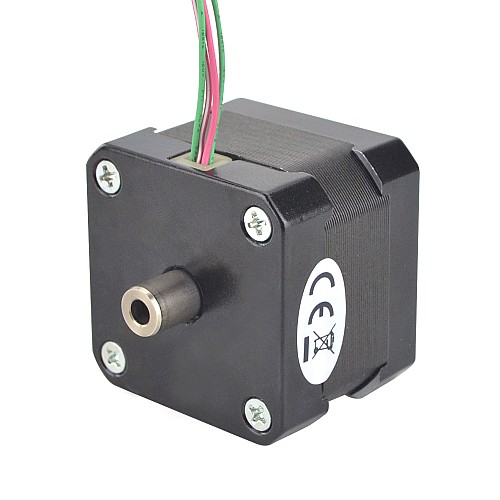

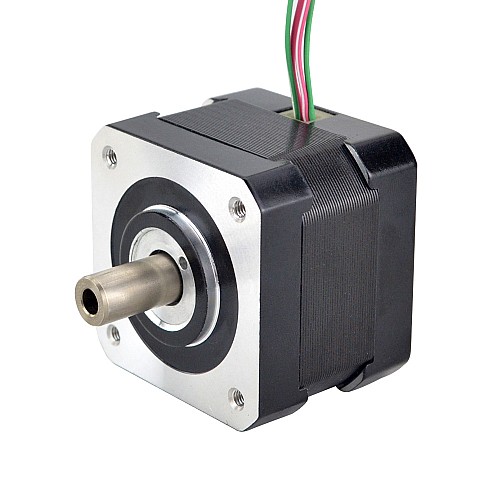

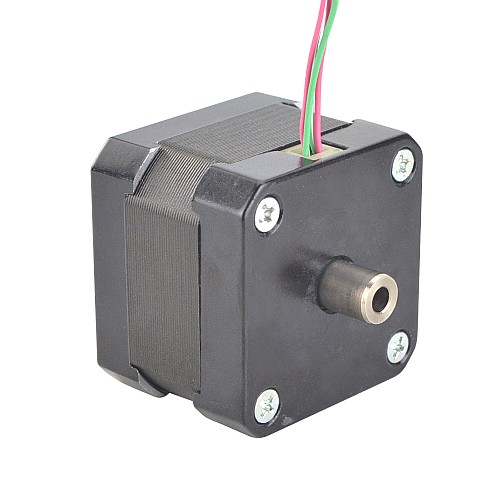

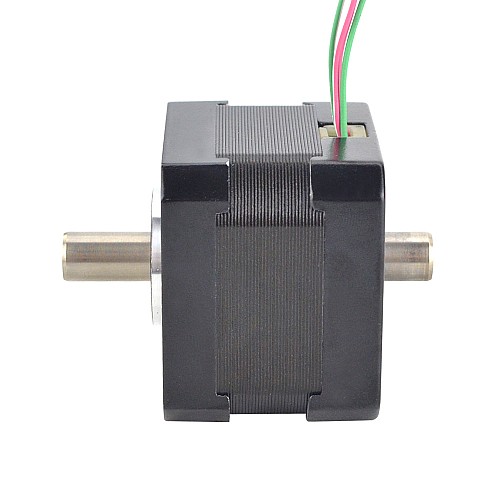

Nema 17 Hollow Shaft Stepper Motor Bipolar 0.25Nm(35.4oz.in) 1.5A 42x42x33.8mm

0 reviews - Write a review

C$23.58

5 + C$22.17

10 + C$20.93

50 + C$19.80

100 + C$18.81

In Stock: 10000
Model: 17HS13-1504H
Gross Weight: 0.29kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 297

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 17HS13-1504H
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.25Nm(35.4oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 1.56ohms ± 10%
Inductance: 1.9mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 33.8mm
Shaft Outer Diameter: Φ8mm
Shaft Inner Diameter: Φ4mm
Front Shaft Length: 16mm
Rear Shaft Length: 9mm
Number of Leads: 4
Lead Length: 310mm
Weight: 0.22kg

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	25
Holding Torque(oz.in)	35.4
Inductance(mH)	1.9
Phase Resistance(ohms)	1.56
Rated Current(A)	1.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	33.8
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	310
No. of Lead	4
Output Shaft Type	Hollow
Product Series	S
Shaft Inner Diameter(mm)	4
Shaft Outer Diameter(mm)	8
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	220
