Nema 17 Stepper Motor L=39mm 1.68A Gear Ratio 40:1 Square Worm Geabox

0 reviews - Write a review

C$52.97

5 + C$50.78

10 + C$48.78

50 + C$46.92

100 + C$45.20

In Stock: 10000
Model: 17HS15-1684S-WG40
Gross Weight: 0.60kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

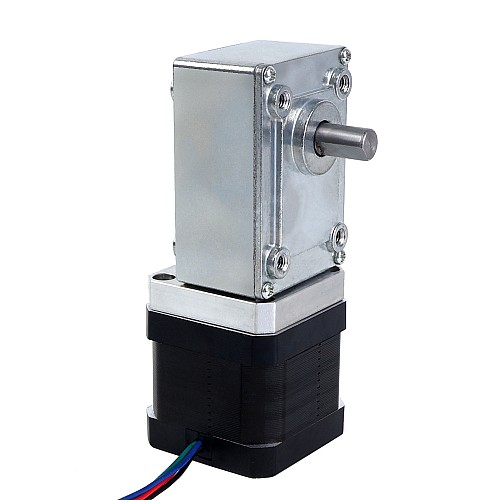

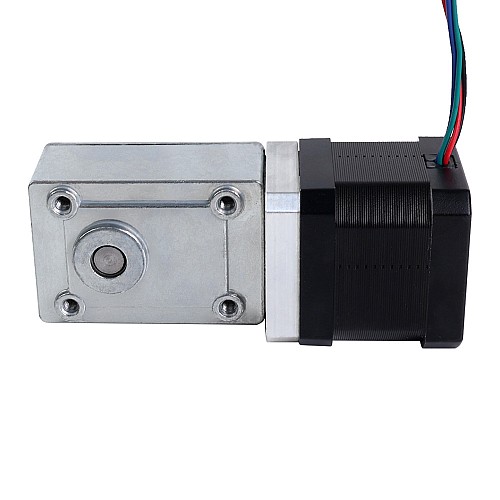

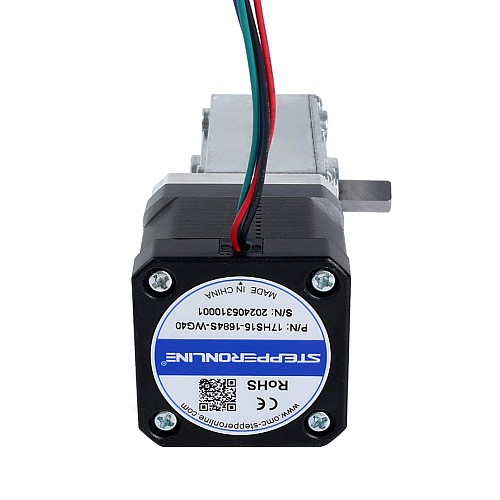

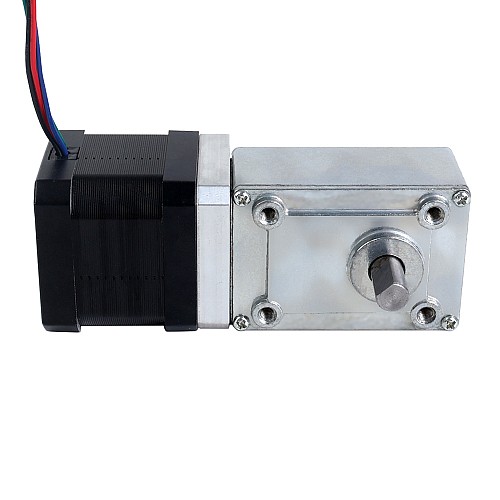

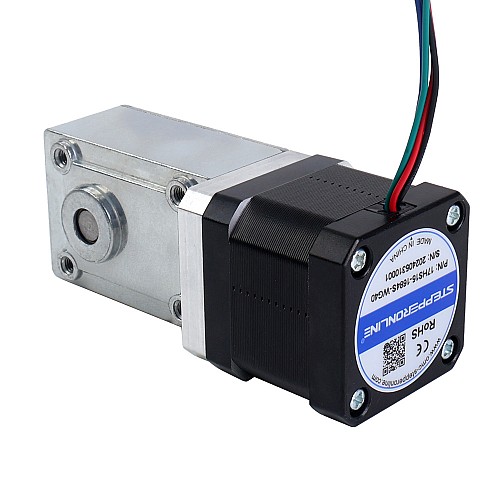

This Nema 17 stepper motor comes equipped with a unique 40:1 ratio square worm gearbox. The gearbox utilizes high-quality, long-lasting synthetic lubricants, making it maintenance-free. Its output shaft and drive shaft are offset by 90°, filling the gap in the market for NEMA17 size worm gearboxes.
The gearbox has strong carrying and overload capacity, stable transmission, smart size and convenient connection, etc. Easy to mount and with an affordable price, this stepper motor with worm gearbox is ideal for small milling machines, engraving machines, lathes, and other applications.

Electrical Specification

Manufacturer Part Number: 17HS15-1684S-WG40
Motor Type: Bipolar Stepper
Step Angle: 0.045deg
Gear Ratio: 40:1
Efficiency: 25%
Maximum Permissible Torque: 2.1Nm(297.38oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.5 ± 10%ohms
Inductance: 3.2 ± 20%mH(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 58mm
Shaft Diameter: Φ7mm
Shaft Length: 18mm
Shaft Type: D-cut
D-cut Length: 13mm
Number of Leads: 4
Lead Length: 320mm
Weight: 502g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.42
Inductance(mH)	3.2
Phase Resistance(ohms)	1.50
Physical Specification
Body Length(mm)	105
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	40
Gearbox Type	Worm Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	7
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	502
