Nema 17 Stepper Motor L=48mm Gear Ratio 50:1 High Precision Planetary Gearbox

Discontinued

Nema 17 Stepper Motor L=48mm Gear Ratio 50:1 High Precision Planetary Gearbox

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17HS19-1684S-HG50
Gross Weight: 0.71kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 33

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

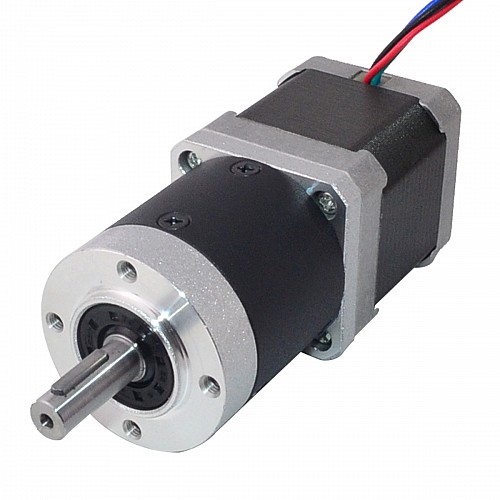

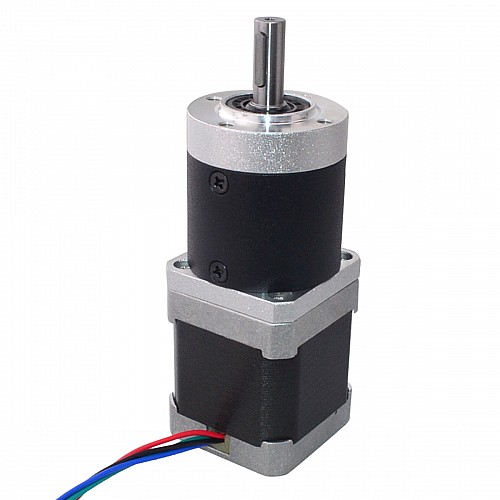

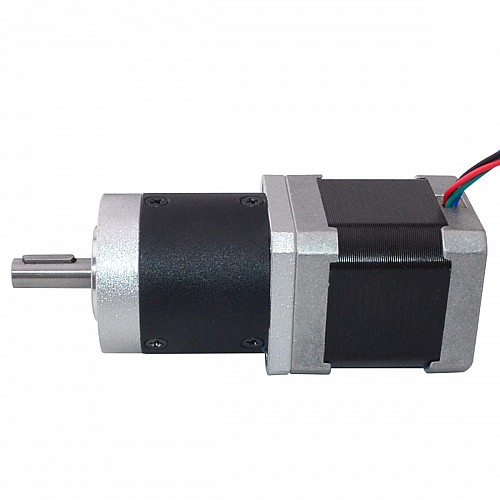

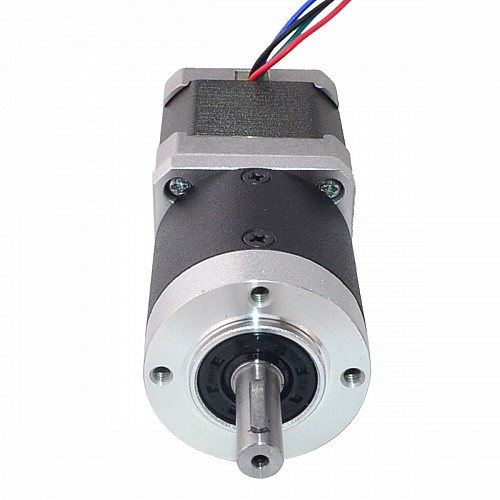

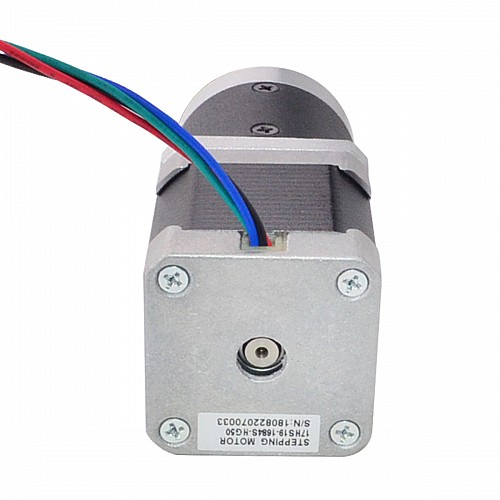

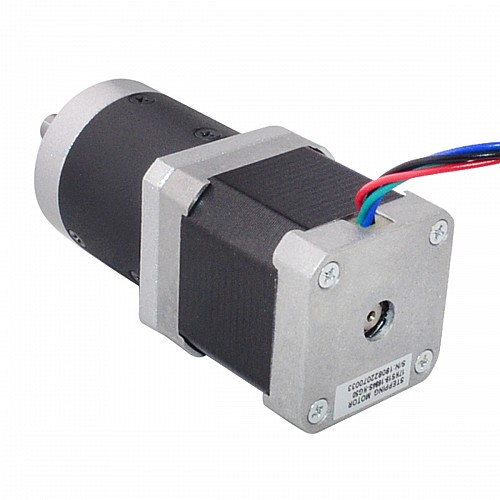

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated with a 48.3mm Planetary gearbox of 50:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS19-1684S-HG50
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 44Ncm(62.32oz.in)
Rated Current/phase: 1.68A
Voltage: 2.80V
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type:Planetary
Gear Ratio:50:1
Efficiency:75%
Backlash at No-load:<=1.6 deg
Max.Permissible Torque:10N.m(1416.4oz.in)
Moment Permissible Torque:15N.m(2124oz.in)
Max.Radial Load:100N
Ambient Temperature:-10-50℃
Insulation Class:B
Noise:<=50dB
Life:6000h

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length:48.3mm
Shaft Diameter: Φ8mm
Shaft Length: 23.5mm
Key-way Length:14mm
Number of Leads: 4
Lead Length: 320mm
Weight: 350g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS19-1684S-PG51.

Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Holding Torque w/o Gearbox(N.m)	0.44
Inductance(mH)	2.8
Phase Resistance(ohms)	1.65
Coupling Specification
Body Length(mm)	96.3
Physical Specification
Backlash at No-load	<=1.6 deg
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	350
