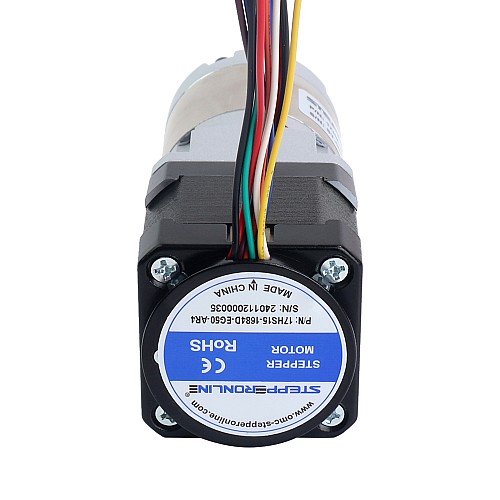

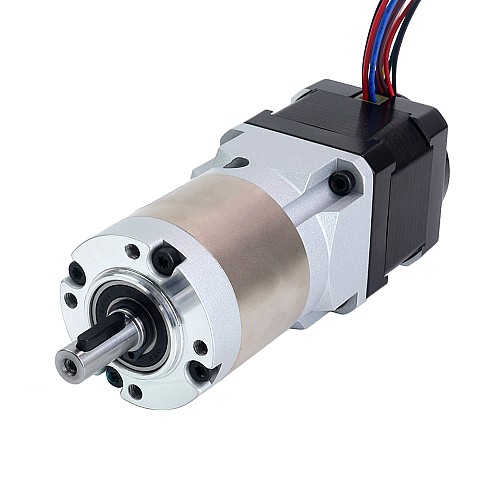

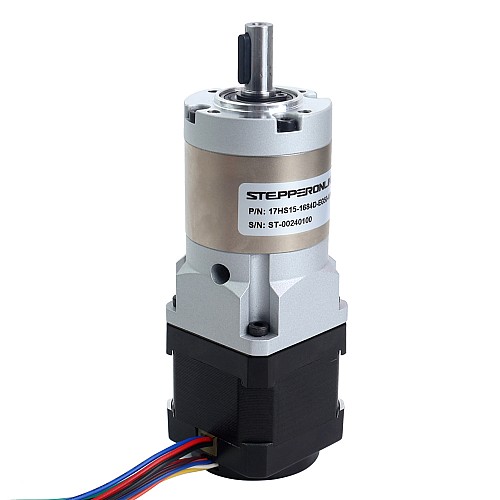

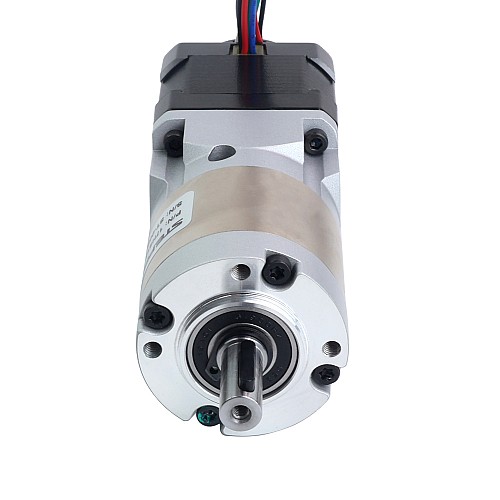

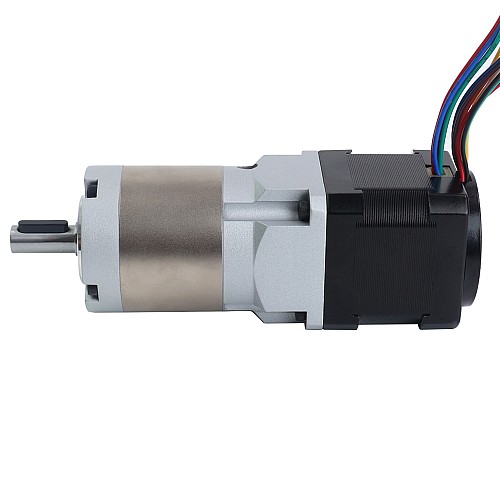

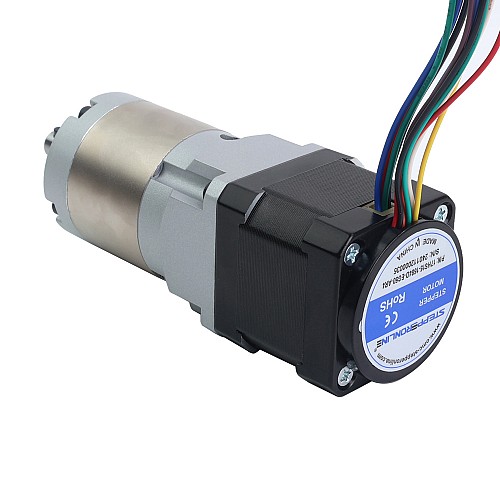

Nema 17 Stepper Motor with High Precision Gearbox Gear Ratio 50:1 & Magnetic Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$150.49

5 + C$135.18

10 + C$122.71

50 + C$112.33

100 + C$103.59

In Stock: 10000
Model: 17HS15-1684D-EG50-AR4
Gross Weight: 0.80kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This geared motor is the J3 motor in AR4-MK2 kit. It is integrated with a higher precision planetary gearbox of 50:1 gear ratio and a encoder with 3 channels and 1000PPR(4000CPR) resolution. It has higher precision and can also meet the higher requirements for other applications.

Electrical Specification

Manufacturer PartNumber: 17HS15-1684D-EG50-AR4
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque without Gearbox: 39Ncm(55oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.6ohms
Inductance: 3.2mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 50:1
Efficiency: 94%
Backlash at No-load: <=20arcmin
Max. Permissible Torque: 10Nm(1416.4oz.in)
Moment Permissible Torque: 20Nm(2832oz.in)
Max. Radial Load: 300N
Max.Axial Force: 100N
Ambient Temperature: -10 - 50℃
Insulation Class: B 130°C[266°F]
Life: 6000h

Encoder Specification

Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output HighVoltage: 5V
Output LowVoltage: 0.2V
Output Frequency Max: 400kHZ

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 67mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 21.5mm
Key-way Length: 14mm
Number of Leads: 4
Lead Length: 500mm
Weight: 694g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Encoder	+5V	GND	EA+	EA-	EB+	EB-	EZ+	EZ-
Wire	Red	Black	Brown	Orange	Blue	Green	Yellow	White

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Encoder Resolution	1000PPR
Encoder Type	Magnetic Incremental
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.39
Holding Torque(oz.in)	55
Inductance(mH)	3.2
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	1.6
Stepper Motor with	Encoder/Gearbox
Physical Specification
Backlash at No-load	<=20arcmin
Body Length(mm)	106
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	50
Gearbox Type	EG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
Single Shaft/Dual Shaft	Single Shaft
