Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC

Hot

Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC

22 reviews - Write a review

C$42.48

5 + C$40.48

10 + C$38.66

50 + C$37.00

100 + C$35.48

In Stock: 10000
Model: 23HS45-4204S
Gross Weight: 1.83kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

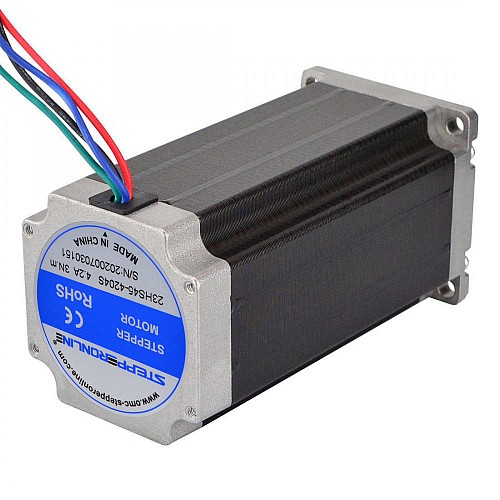

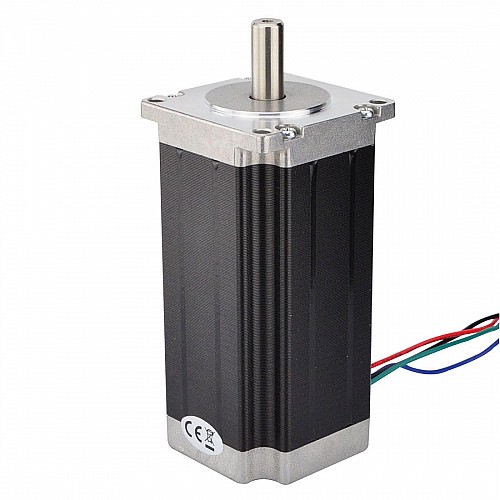

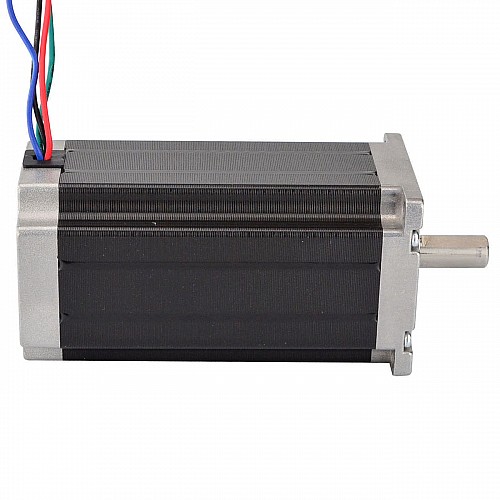

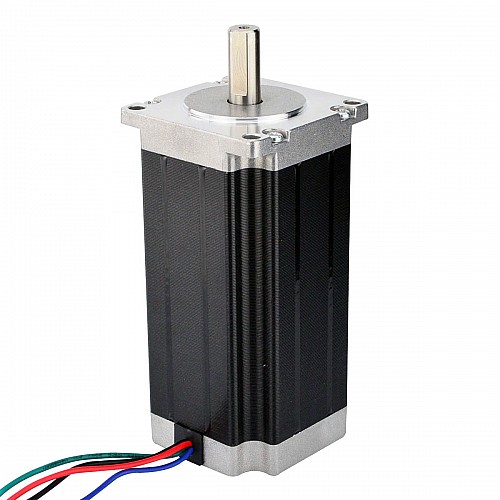

This is the strongest Nema 23 stepper cnc motors, it with step angle 1.8deg and size 57x57x113mm. It has 4 wires, each phase draws 4.2A, with holding torque 3.0Nm(425oz.in).

Electrical Specification

Manufacturer Part Number: 23HS45-4204S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms
Inductance: 3.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Weight: 1.6kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Inductance(mH)	3.4
Phase Resistance(ohms)	0.88
Rated Current(A)	4.2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	113
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	10
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1600
