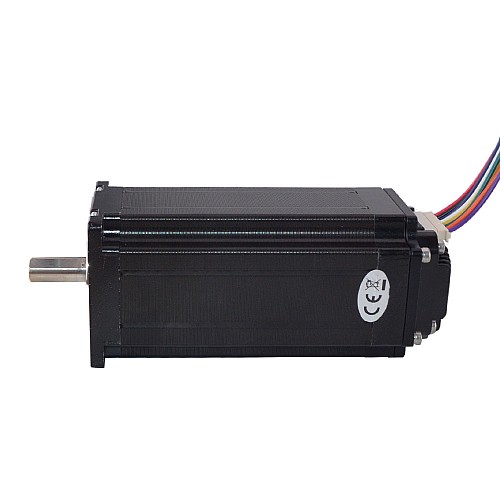

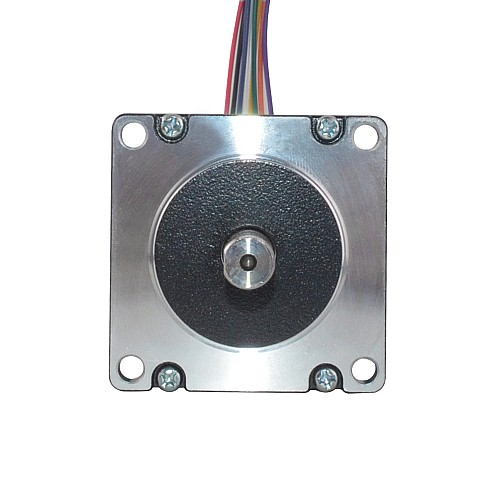

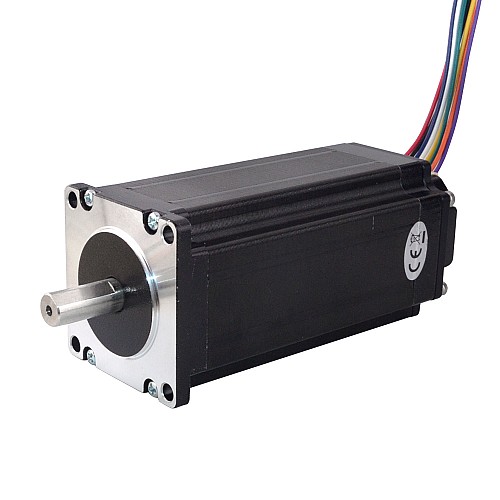

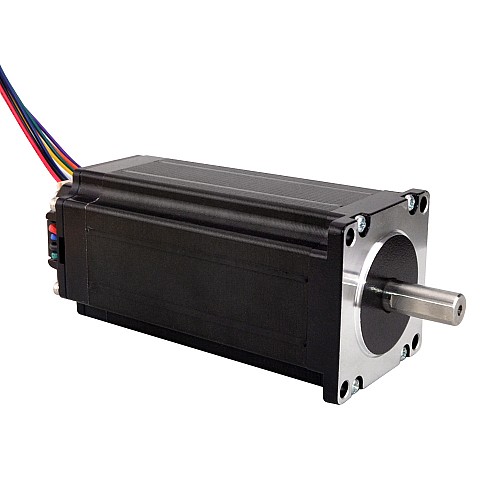

Nema 23 Integrated Stepper Motor 300Ncm(424.83oz.in) w/ Controller ISC08 12-38VDC

0 reviews - Write a review

C$128.02

5 + C$123.64

10 + C$119.55

50 + C$115.72

100 + C$112.14

In Stock: 10000
Model: ISC08-30
Gross Weight: 1.88kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specifications

Manufacturer Part Number: ISC08-30
Step Angle: 1.8deg
Holding Torque: 300Ncm(424.83oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.9ohms
Inductance: 3.8mH ± 20%(1KHz)

Physical Specifications

Frame Size: 57 x 57mm
Body Length: 133mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
Weight: 1850g

Driver Specifications

Output Peak Current: 3 - 8A
Input Voltage: 12 - 38VDC
Insulation Class: B 130°C[266°F]
Speed control through external potentiometer 0. 75 - 1250RPM
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.

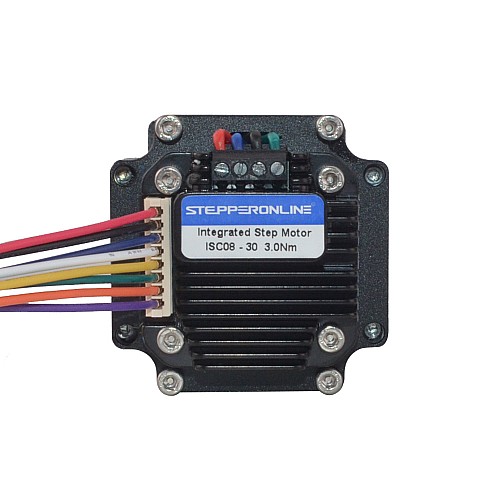

Connection

V+	GND	ENA	ON	H/L	DIR	Vr	SPD
Red	Black	Blue	White	Yellow	Green	Orange	Purple

Product Type
Product Type	Integrated Stepper Motor
Electrical Specification
Analog Input	Yes
Control Modes	Pulse Mode
Encoder Feedback	No (Open Loop)
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Inductance(mH)	3.8
Input Voltage Reference(V)	12 - 36DC
Input Voltage(V)	12 - 38DC
Phase Resistance(ohms)	0.9
Rated Current(A)	4.2
Physical Specification
Body Length(mm)	133
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	10
Shaft Length(mm)	24
