Nema 17 Non-captive 34mm Stack 0.84A Lead 2mm(0.07874") Length 200mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17N13S0844AF2-200RS
Gross Weight: 0.90kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

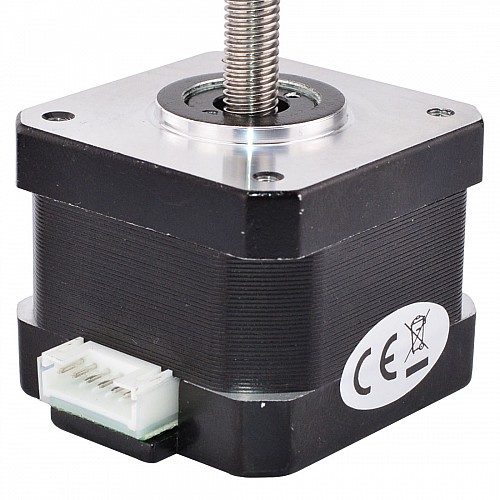

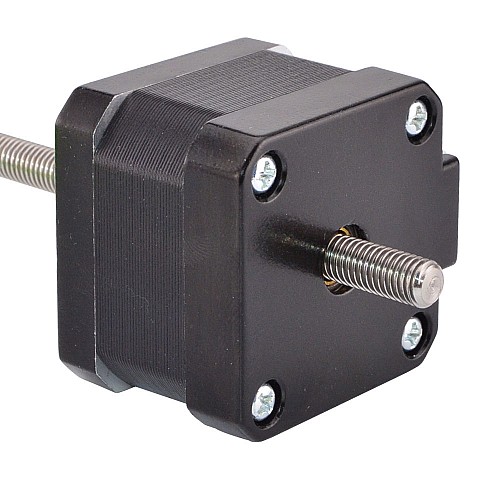

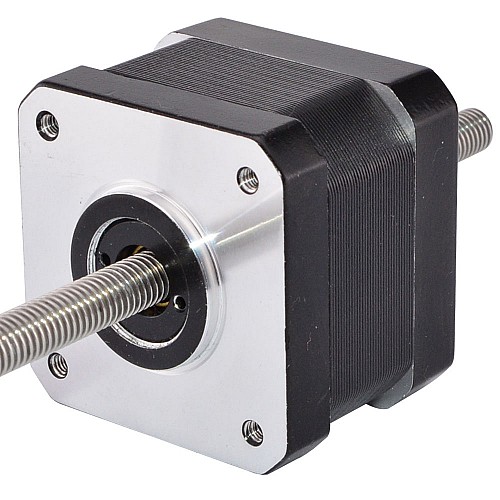

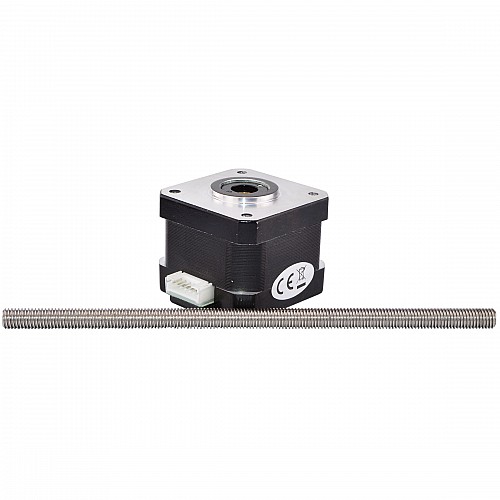

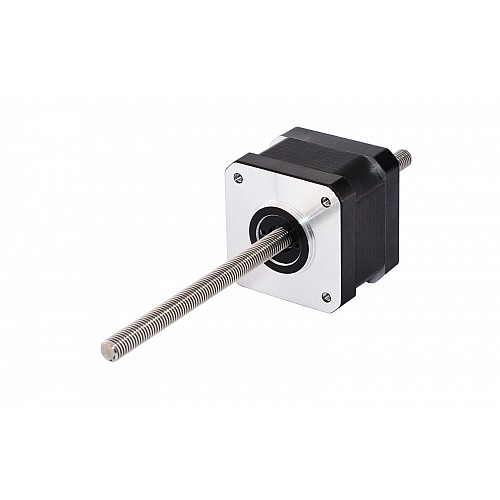

This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 34mm 1.8 degree 0.84A Nema 17 stepper motor and 200mm length Tr6.35x2 linear screw.

Electrical Specification

Manufacturer Part Number: 17N13S0844AF2-200RS(17N13S0844AF-200RS)
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8deg
Holding Torque: 28Ncm(39.65oz.in)
Rated Current/phase: 0.84A
Phase Resistance: 8.0ohms
Voltage: 4.83V
Inductance: 9.3mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 400mm
Weight: 400g

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17N13S0844AF4-200RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	28
Holding Torque(oz.in)	39.65
Inductance(mH)	9.3
Phase Resistance(ohms)	8.0
Rated Current(A)	0.84
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	200
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	Non-Captive
No. of Lead	4
