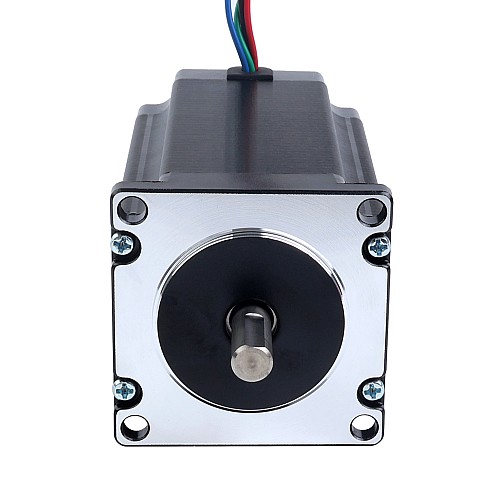

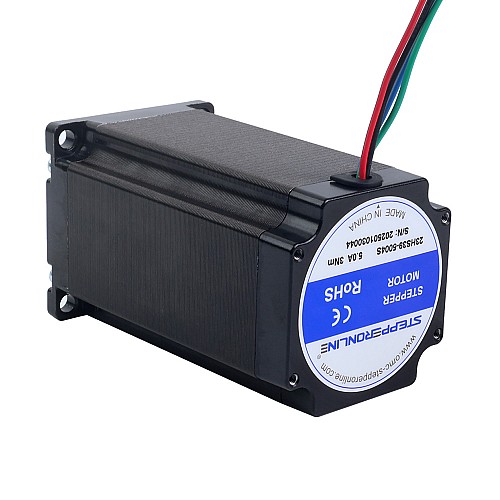

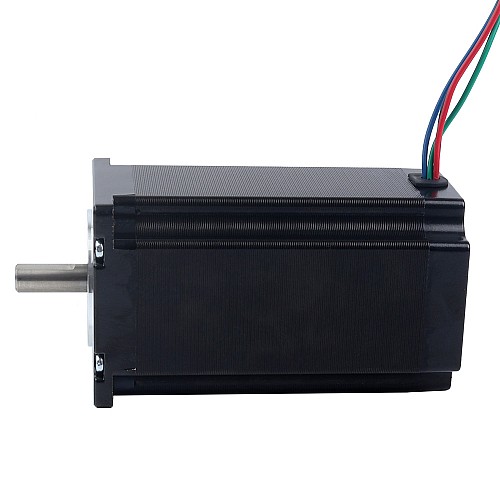

Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires - 23HS39-5004S | StepperOnline CA

Hot

Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires

0 reviews - Write a review

C$21.65

5 + C$20.96

10 + C$20.31

50 + C$19.70

100 + C$19.12

In Stock: 10000
Model: 23HS39-5004S
Gross Weight: 1.55kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Australia

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

The NEMA 23 stepper motor has a rated current of 5.0A and a holding torque of 3.0Nm(424.83oz.in). With a step angle of 1.8 degrees and dimensions of 57x57x100mm, this 4-wire motor is ideal for precise positioning in various automation applications, offering reliable performance and robust torque output in a compact form factor.

Electrical Specification

Manufacturer Part Number: 23HS39-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.00Nm(424.83oz.in)
Rated Current/Phase: 5.0A
Phase Resistance: 0.6ohms±10%
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 100mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Cables: 4
Cable Length: 400mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Inductance(mH)	2.8
Phase Resistance(ohms)	0.6
Rated Current(A)	5.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	100
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
