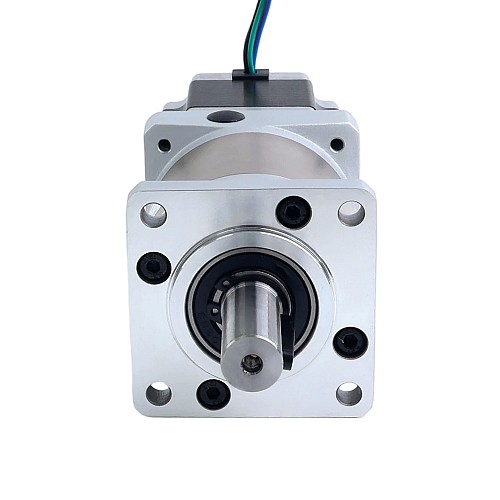

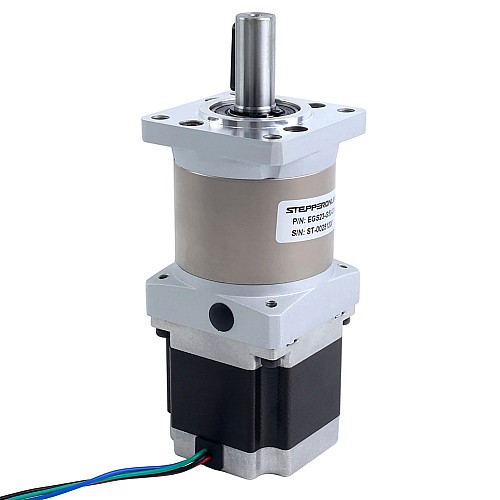

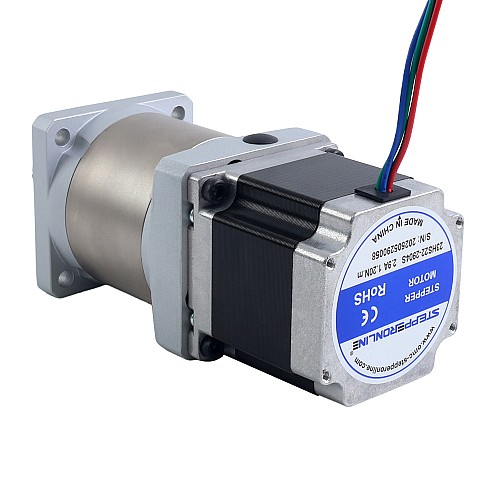

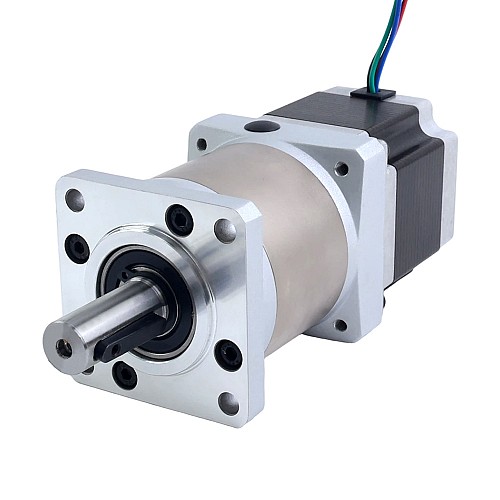

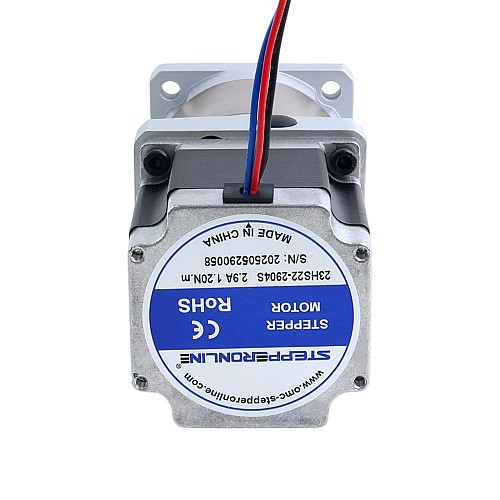

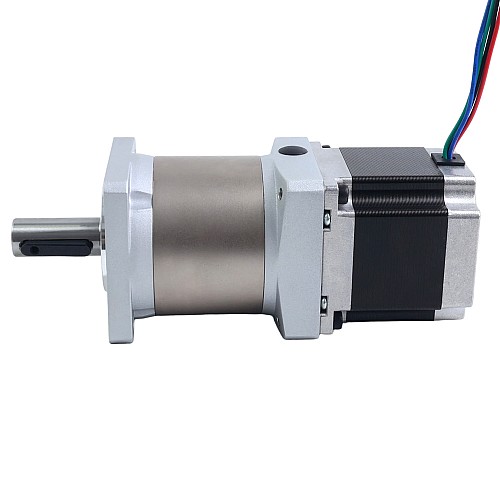

Nema 23 Stepper Motor Bipolar L=54.5mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox

New

Nema 23 Stepper Motor Bipolar L=54.5mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox

0 reviews - Write a review

€89.01

5 + €82.25

10 + €76.45

50 + €71.40

100 + €66.99

In Stock: 10000
Model: 23HS22-2904S-EGS50
Gross Weight: 1.76kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 23 stepper motor comes with a holding torque of 1.20Nm(169.93oz.in) and features a 50:1 high-precision EG series planetary gearbox that guarantees a maximum backlash of only 15arcmin, ensuring repeatable and precise motion.
Designed for reliability in rigorous operating conditions, this geared motor offering significantly improved positional accuracy and repeatability compared to standard PG series gearboxes. Combining power, precision, and durability, this motor-gearbox solution is ideal for CNC machinery, automated handling systems, robotics, and other applications where torque, accuracy, and long-term reliability are critical.

Electrical Specification

Part Number: 23HS22-2904S-EGS50
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 1.20Nm(169.93oz.in)
Rated Current/phase: 2.90A
Phase Resistance: 0.90ohms±10%
Inductance: 2.60mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 50:1
Efficiency: 94%
Backlash at No-load: <=15arcmin
Maximum Permissible Torque: 25.00Nm(3540.29oz.in)
Moment Permissible Torque: 50.00Nm(7080.58oz.in)

Physical Specification

Frame Size: 60 x 60mm
Motor Length: 54.5mm
Gearbox Length: 73mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ14mm
Output Shaft Length: 35mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.9
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	1.2
Inductance(mH)	2.6
Phase Resistance(ohms)	0.9
Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	Nema 23 (60 x 60)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	35
Single Shaft/Dual Shaft	Single Shaft
