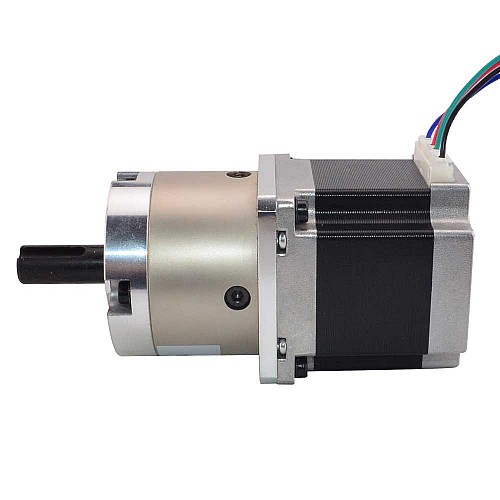

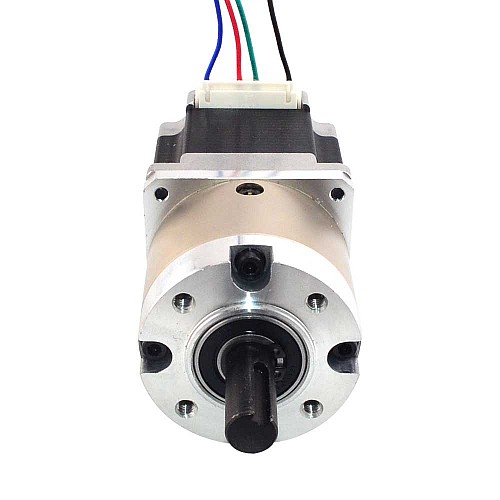

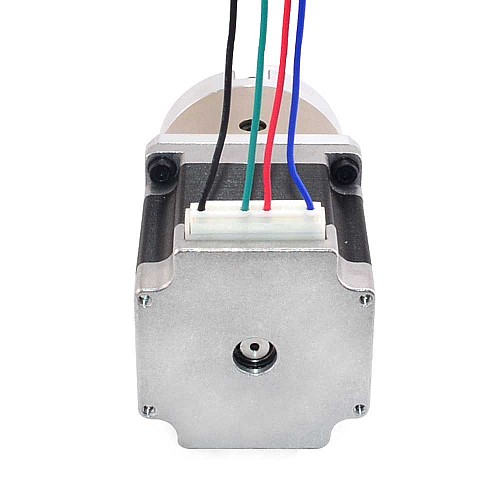

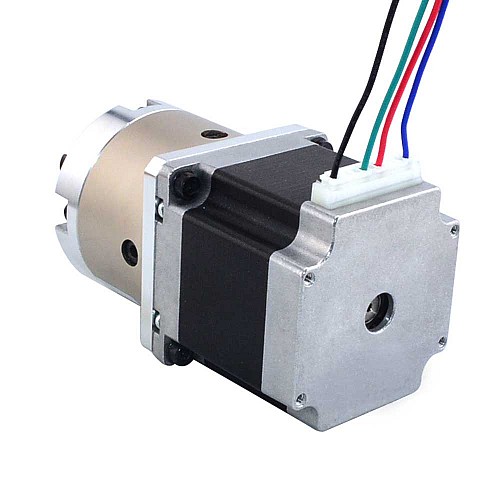

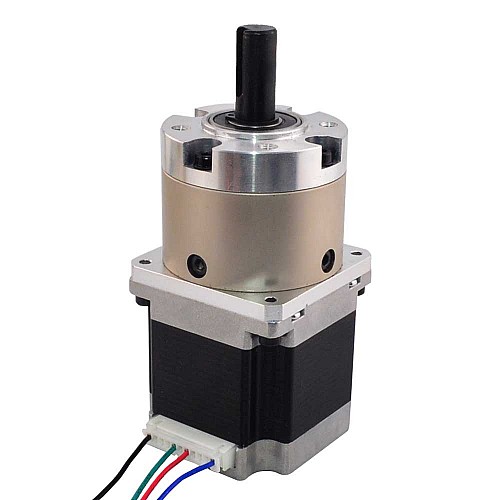

Nema 23 Stepper Motor Bipolar L=56mm w/ Gear Ratio 4:1 Planetary Gearbox & Pin Connector

0 reviews - Write a review

€55.07

5 + €52.47

10 + €50.12

50 + €47.96

100 + €45.98

In Stock: Pre-order
Model: 23HS22-2804SX-PG4
Gross Weight: 1.31kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 113

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This Nema 23 stepper motor with 56mm body, step angle 1.8deg and 2.8A rated current, integrated a planetary gearbox of 4.25:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 23HS22-2804SX-PG4
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 1.25Nm(177.01oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms
Inductance: 2.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type:Planetary
Gear Ratio: 4.25:1
Efficiency: 90%
Backlash at No-load:<=3deg
Max.Permissible Torque: 30Nm(4248.36oz.in)
Moment Permissible Torque: 50Nm(7080.6oz.in)
Shaft Maximum Axial Load:100N
Shaft Maximum Radial Load:200N

Physical Specification

Frame Size: 57 x 57mm
Gearbox Length: 48mm
Shaft Diameter: Φ12mm
Shaft Length: 30mm
Key-way Length:20mm
Number of Leads: 4
Lead Length: 300mm
Weight: 1200g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	1.25
Inductance(mH)	2.5
Phase Resistance(ohms)	0.9
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	106
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	4.25
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	30
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1200
