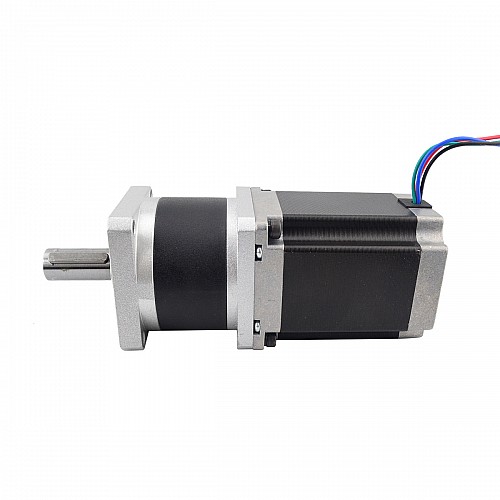

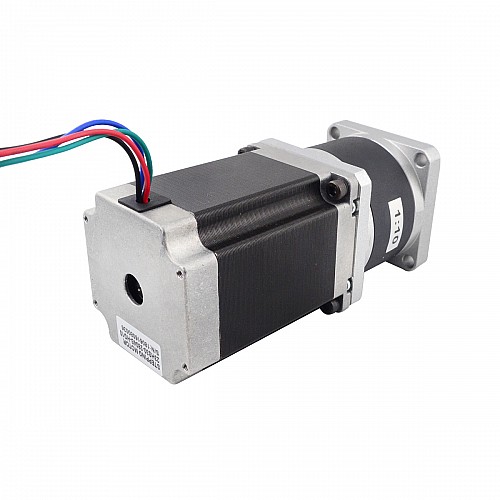

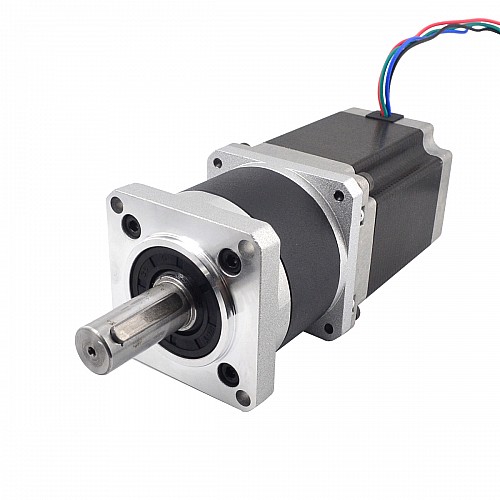

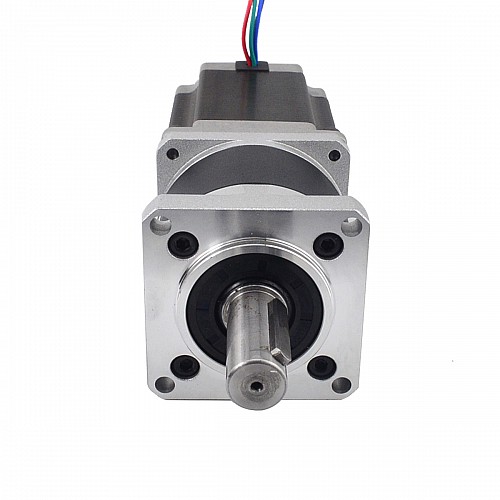

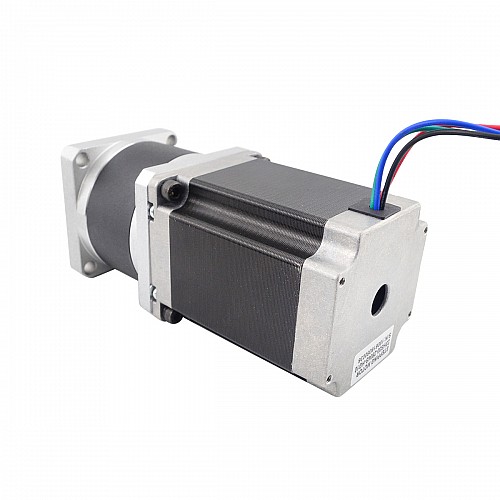

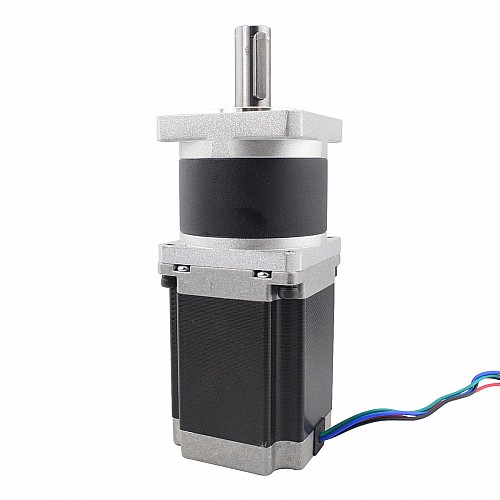

Nema 23 Stepper Motor L=76mm Gear Ratio 10:1 High Precision Planetary Gearbox

0 reviews - Write a review

C$123.39

5 + C$117.29

10 + C$111.77

50 + C$106.75

100 + C$102.15

In Stock: 10000
Model: 23HS30-2804S-HG10
Gross Weight: 1.84kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 215

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 23 stepper motor with 76mm body and 2.80A rated current, integrated with a 54mm Planetary gearbox of 10:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Part Number: 23HS30-2804s-HG10
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 1.89Nm(267.70oz.in)
Rated Current/phase: 2.80A
Phase Resistance: 1.13ohms
Inductance: 5.40mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 92%
Backlash at No-load: <=30arcmin
Max.Permissible Torque: 6N.m(849.84oz.in)
Moment Permissible Torque: 12N.m(1699.68oz.in)
Max.Radial Load: 250N
Ambient Temperature: -10-50℃
Noise: <=50dB

Physical Specification

Frame Size: 57 x 57mm
Motor Length: 76mm
Gearbox Length: 54mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 320mm
Weight: 1500g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	1.89
Inductance(mH)	5.4
Phase Resistance(ohms)	1.13
Physical Specification
Backlash at No-load	<=30arcmin
Body Length(mm)	130
Frame Size(mm)	Nema 23 (57 x 57)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	34
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1500

File	Size
23HS30-2804S-HG10.STEP	3MB	Download
23HS30-2804S-HG10_Torque_Curve.pdf	182.69KB	Download
23HS30-2804S-HG10 Full Datasheet	127.62KB	Download
23HS30-2804S_Torque_curve.pdf	180.81KB	Download
