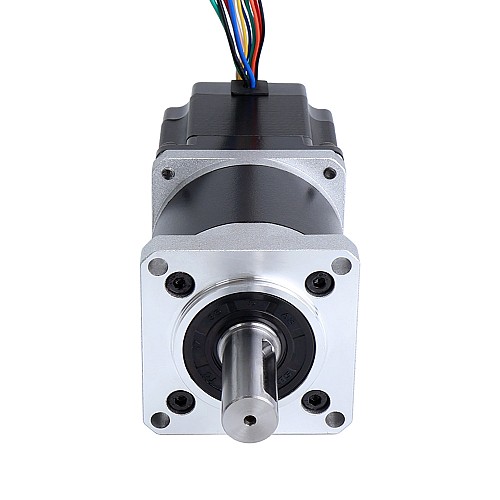

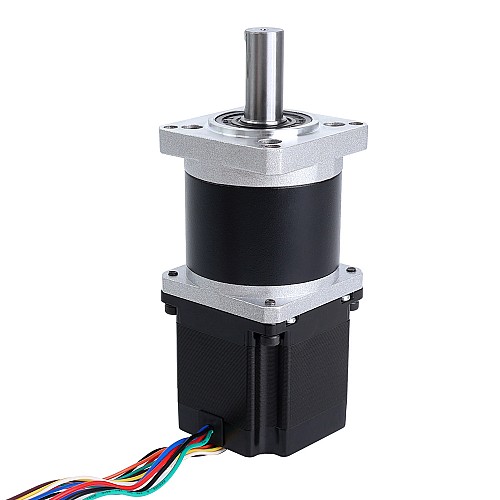

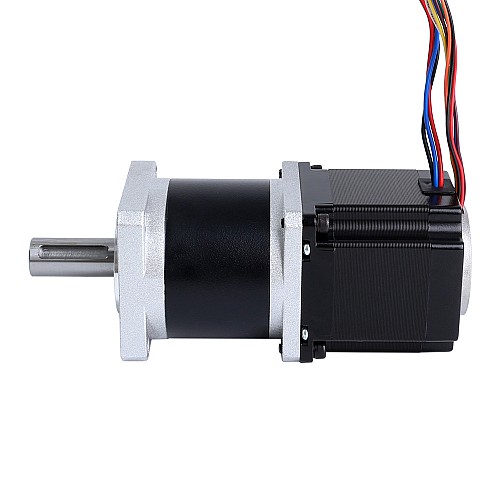

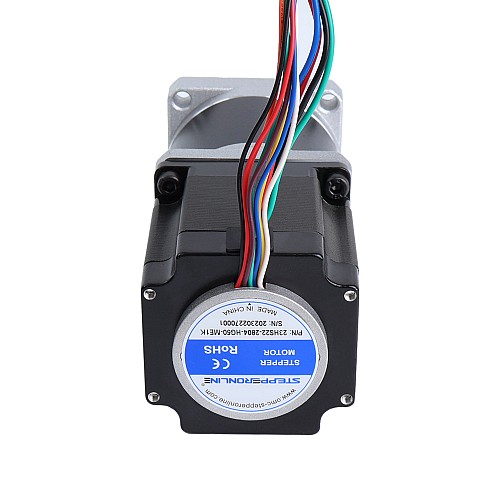

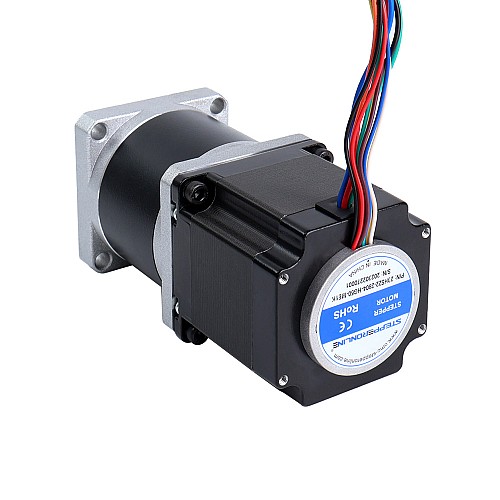

CN On Sale - Nema 23 Stepper Motor with High Precision Gearbox Gear Ratio 50:1 & Magnetic Encoder 1000PPR(4000CPR)

Nema 23 Stepper Motor with High Precision Gearbox Gear Ratio 50:1 & Magnetic Encoder 1000PPR(4000CPR) - 23HS22-2804-HG50-ME1K | StepperOnline CA

-35 %

CN On Sale - Nema 23 Stepper Motor with High Precision Gearbox Gear Ratio 50:1 & Magnetic Encoder 1000PPR(4000CPR)

0 reviews - Write a review

€132.10

€85.87

In Stock: 10000
Model: CN-23HS22-2804-HG50-ME1K
Gross Weight: 1.65kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 23

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 23HS22-2804-HG50-ME1K
Motor Type: Bipolar Stepper
Step Angle: 0.036deg
Holding Torque without Gearbox: 102Ncm(144.44oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms
Inductance: 2.8mH±20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 50:1
Efficiency: 75%
Backlash at No-load: 1.6°
Max. Permissible Torque: 20Nm(2832.8oz.in)
Moment Permissible Torque: 40Nm(5664oz.in)
Max. Axial Load: 100N
Max. Radial Load: 250N
Ambient Temperature: -10 - 50℃
Insulation Class: B 130°C[266°F]
Life: 6000h

Encoder Specification

Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ

Physical Specifications

Frame Size: 57 x 57mm
Motor Length: 55mm
Gearbox Length: 61.65mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Keyway Length: 25mm
Number of Leads: 4
Lead Length: 500mm

Motor and Encoder Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Wire Color	Red	Black	BRN	ORG	Blue	Green	Yellow	White
Description	+5V	EGND	EA+	EA-	EB+	EB-	EZ+	EZ-

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Encoder Resolution	1000PPR
Encoder Type	Magnetic Incremental
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	1.02
Holding Torque(oz.in)	144.44
Inductance(mH)	2.8
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	0.9
Stepper Motor with	Encoder/Gearbox
Physical Specification
Backlash at No-load	<=1.6deg
Body Length(mm)	116.65
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	50
Gearbox Type	HG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	34
Single Shaft/Dual Shaft	Single Shaft
