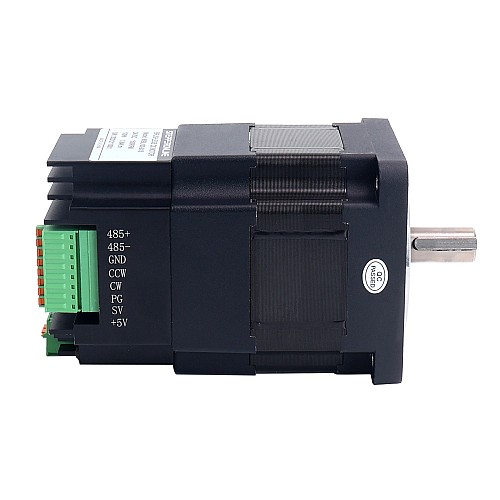

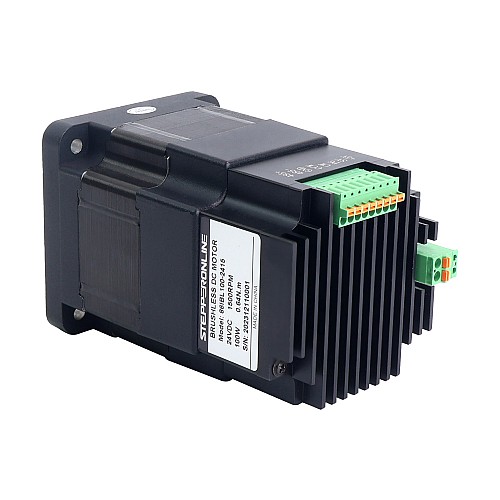

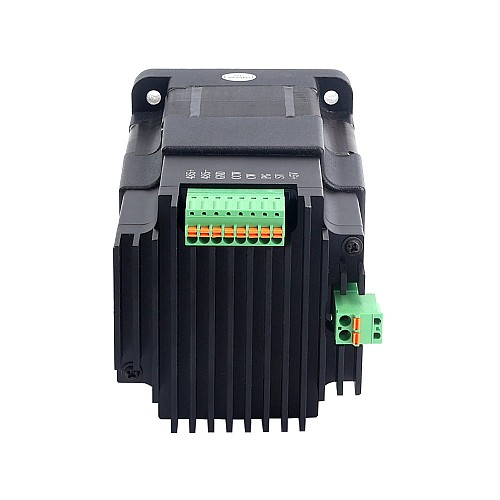

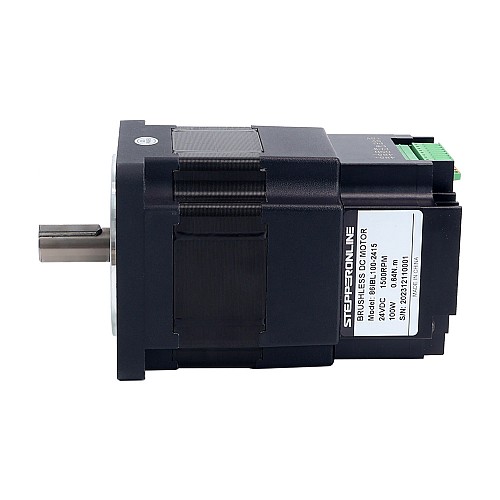

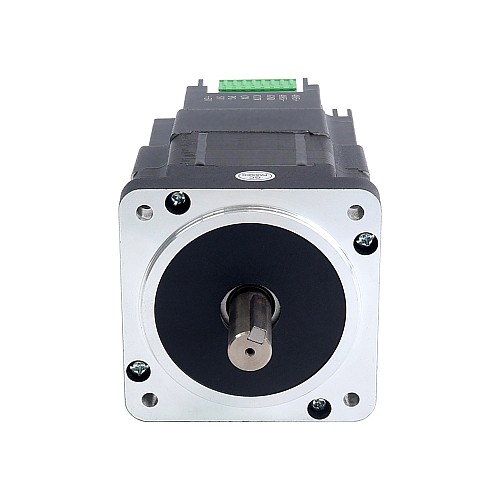

Nema 34 86x86x138mm Integrated Brushless DC Motor 100W 24V 1500RPM 0.64Nm 4.17A w/ Driver

This is Nema 34 86x86x138mm integrated brushless DC motor 100W 24V 1500RPM 0.64Nm 4.17A with driver.The 86IBL series of integrated brushless motors are mechatronics products developed to cooperate with the field of industrial automatic control. This motor is equipped with a high-performance dedicated brushless DC motor driver chip, which has a series of advantages such as high integration, small size, complete protection, simple and clear wiring, and high reliability. This series includes a variety of integrated motors ranging from 100 to 400W. In addition, the built-in driver is equipped with new PWM technology, which enables the brushless motor to run at high speed, with small vibration, low noise, good stability and high reliability.

Key Features

• 20KHZ chopper frequency
• High performance at a low price
• PID speed and current dual-loop regulator
• Integrated, saving space and reducing wiring
• Over-voltage, under-voltage, over-current, current peak value, Hall signal and other fault alarm functions
• The communication mode adopts the standard Modbus protocol, uses a two-wire serial link communication based on RS485, and the transmission mode is RTU.

Electrical Specifications

• Manufacturer Part Number: 86IBL100-2415
• Phase: 3
• Poles: 8
• Rated Power: 100W
• Rated Voltage: 24VDC
• Rated Speed: 1500±10%RPM
• Rated Current: 4.17±10%A
• Rated Torque: 0.64Nm(90.63oz.in)
• Insulation Class: B 130°C[266°F]
• Resistance/phase: 0.21±10%Ohms
• Inductance/phase: 0.51±20%mH
• Sensor: HALL

Physical Specifications

• Frame Size: Nema 34 (86 x 86mm)
• Body Length: 138mm
• Shaft Diameter: 14mm
• Shaft Length: 32mm
• Weight: 2.13kg
