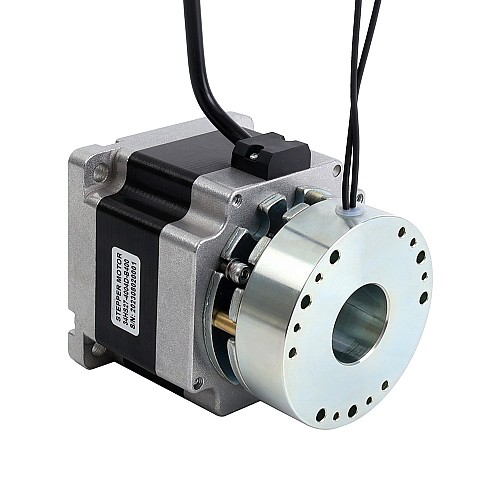

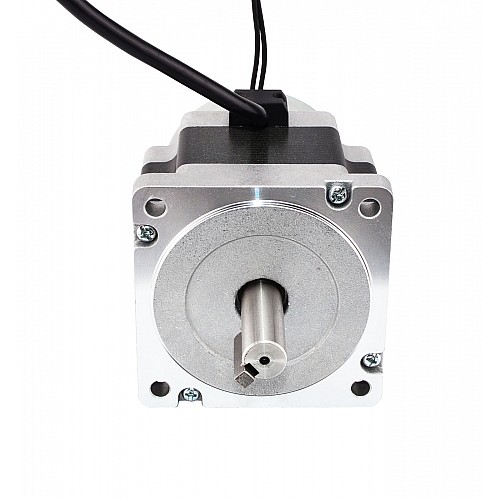

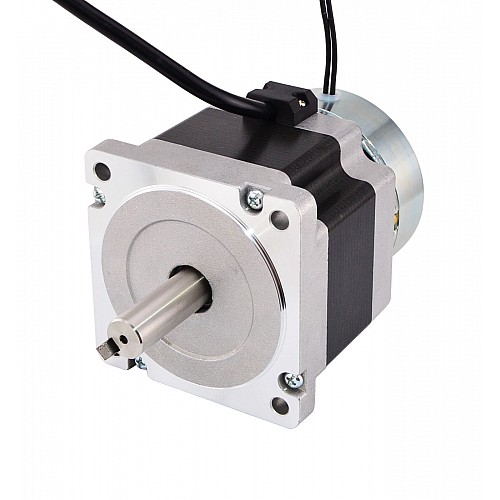

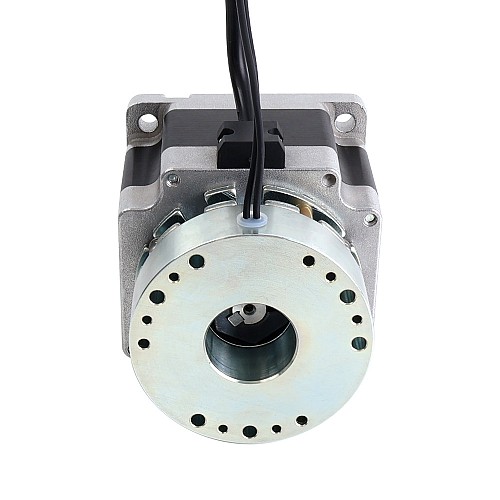

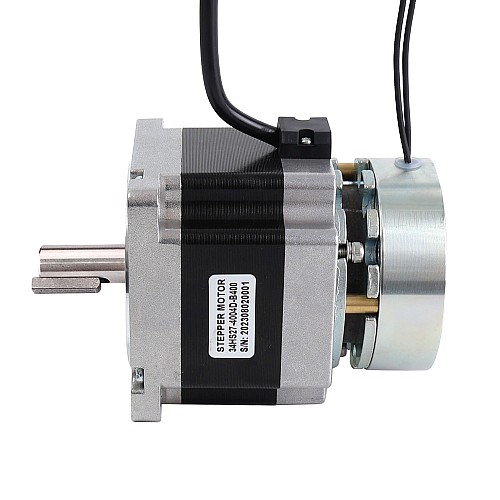

Nema 34 Stepper 3.4Nm(481.5oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)

0 reviews - Write a review

C$113.50

5 + C$108.82

10 + C$104.52

50 + C$100.54

100 + C$96.85

In Stock: Pre-order
Model: 34HS27-4004D-B400
Gross Weight: 3.00kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Motor Specification

Manufacturer Part Number: 34HS27-4004D-B400
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque:3.4Nm(481oz.in)
Rated Current/phase: 4.0A
Voltage: 2.8V
Phase Resistance: 0.7ohms
Inductance: 4.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 68mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.13kg

Brake Specification

Brake Type: Non-excited
Static Friction Torque : 4Nm(566.4oz.in)
Moment of Inertia : 23x10^-6kg.cm²
Voltage: 24V
Power: 13W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.8kg

Connection

A+	A-	B+	B-
Red	Black	Yellow	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	340
Holding Torque(oz.in)	481
Phase Resistance(ohms)	0.7
Rated Current(A)	4.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	13
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	400
Brake Torque(oz.in)	566.4
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
