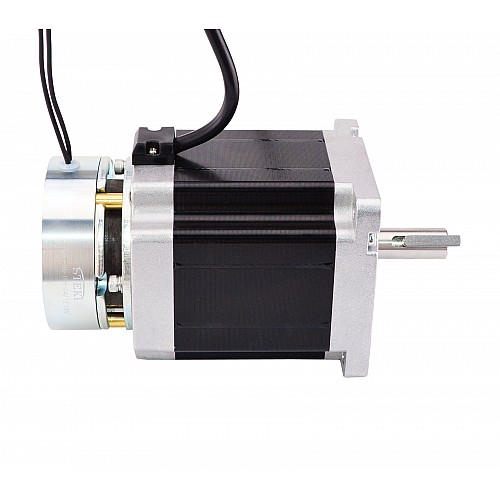

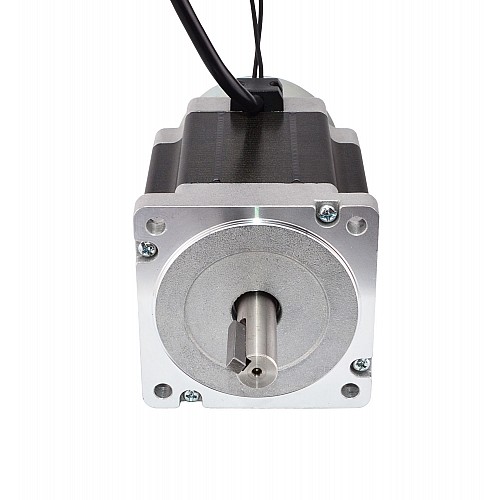

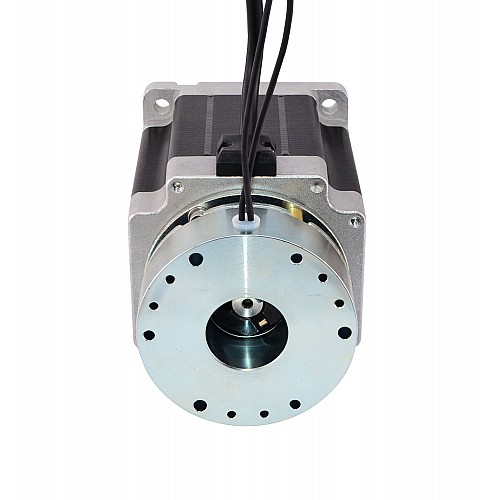

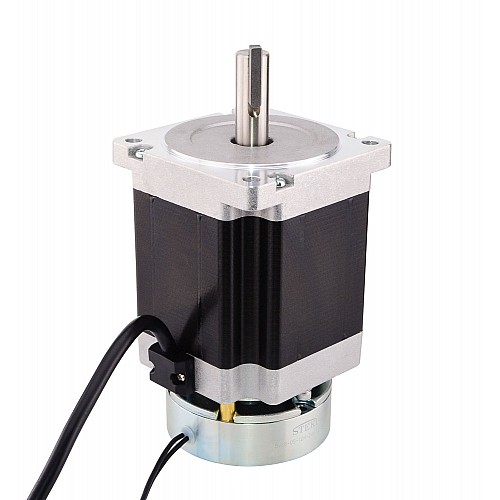

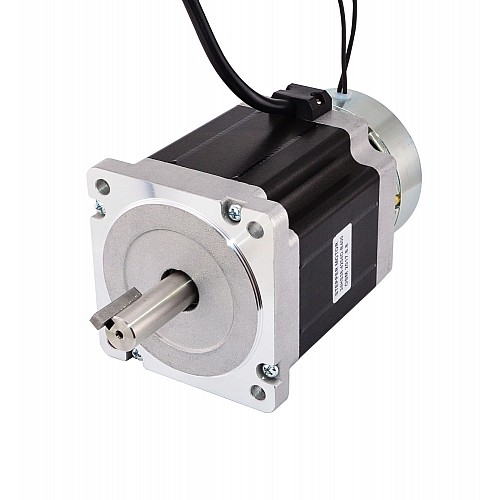

Nema 34 Stepper 7.0Nm(1001oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
€89.08
5 + €85.41
10 + €82.03
50 + €78.90
100 + €76.00
- In Stock: Pre-order
- Model: 34HS38-4204D-B400
- Gross Weight: 4.15kg
- Certificated: ISO, CE, UKCA, RoHS
Sold: 52
Click country for real-time stock
This product has a minimum quantity of 5
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.
Motor Specification
- Manufacturer Part Number: 34HS38-4204D-B400
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 7Nm(1001oz.in)
- Rated Current/phase: 4.24A
- Voltage: 3.39V
- Phase Resistance: 0.8ohms
- Inductance: 8mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
- Frame Size: 86 x 86mm
- Body Length: 98mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Key-way Length: 25mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 3.13kg
Brake Specification
- Brake Type: Non-excited
- Static Friction Torque : 4Nm(566.4oz.in)
- Moment of Inertia : 23x10-6 kg.cm2
- Voltage: 24V
- Power: 13W
- Heat-resistance Class: F
- Max. Speed : 5000rpm
- Weight : 0.8kg
Connection
A+ |
A- |
B+ |
B- |
Black |
Green |
Red |
Blue |
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Product Type | |
Product Type | Motor w/ Encoder & Brake & Gearbox |
Electrical Specification | |
Holding Torque(Ncm) | 700 |
Holding Torque(oz.in) | 1001 |
Phase Resistance(ohms) | 0.8 |
Rated Current(A) | 4.24 |
Stepper Motor with | Brake |
Brake Specification | |
Brake Power(W) | 13 |
Brake Rated Voltage(V) | 24 |
Brake Torque(Ncm) | 400 |
Brake Torque(oz.in) | 566.4 |
Brake Type | Power Off Brake |
Physical Specification | |
Frame Size(mm) | Nema 34 (86 x 86) |
Inventory Method | Dedicated Inventory |
IP Rating | 40 |
Shaft Diameter(mm) | 14 |
Shaft Length(mm) | 37 |
File | Size | |
---|---|---|
SWB-05.pdf | 250.91KB | Download |
