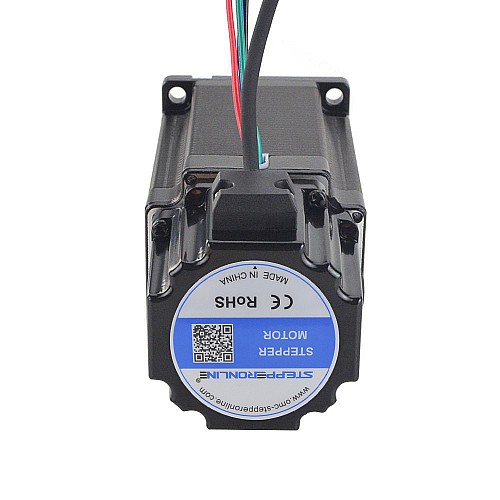

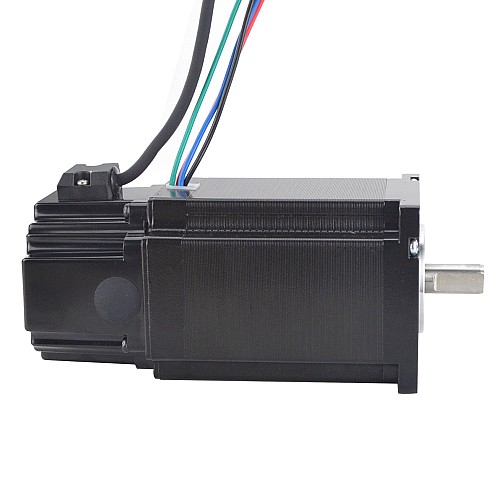

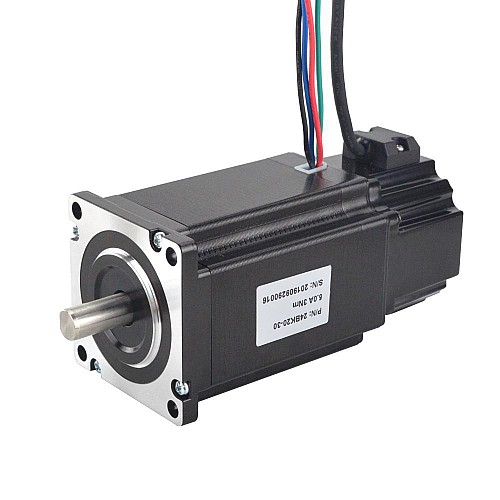

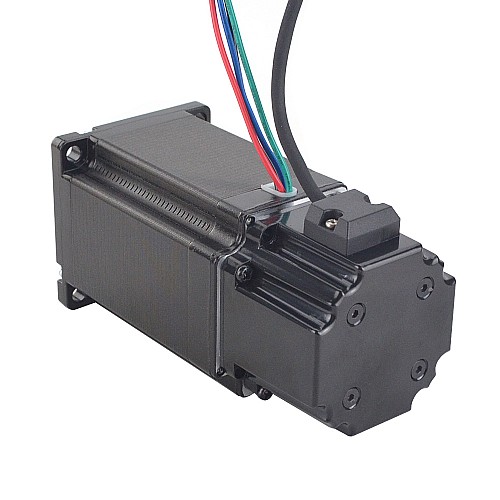

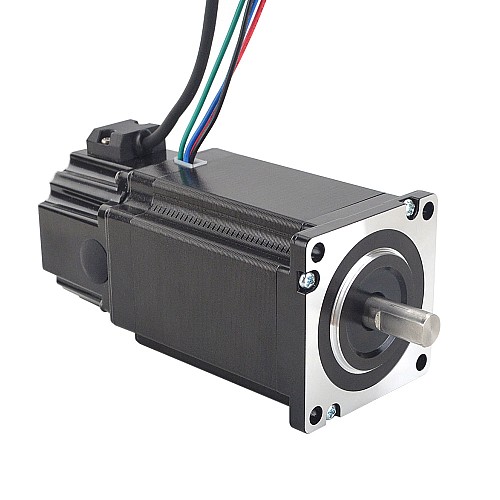

P Series Nema 24 Stepper Motor 3Nm(424.92oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$115.84

5 + C$110.39

10 + C$105.44

50 + C$100.89

100 + C$96.73

In Stock: 10000
Model: 24BK20-30
Gross Weight: 1.90kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 24BK20-30
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 3Nm(424.92oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.43ohms
Inductance: 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 85mm
Shaft Diameter: Φ10mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.3kg

Brake Connections

Red--24V+
Red--24V-
2.0Nm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.92
Phase Resistance(ohms)	0.43
Rated Current(A)	5.0
Stepper Motor with	Brake
Brake Specification
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	200
Brake Torque(oz.in)	283.22
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	10
Shaft Length(mm)	21
