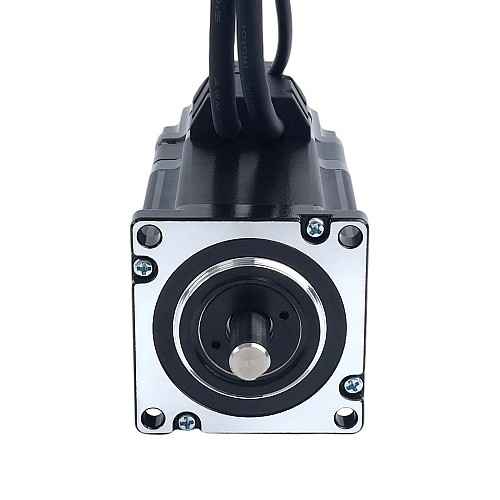

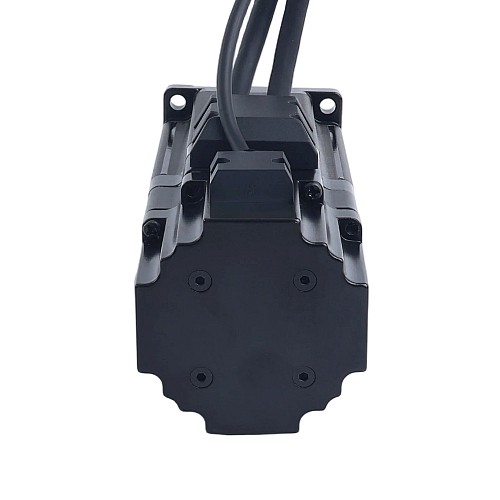

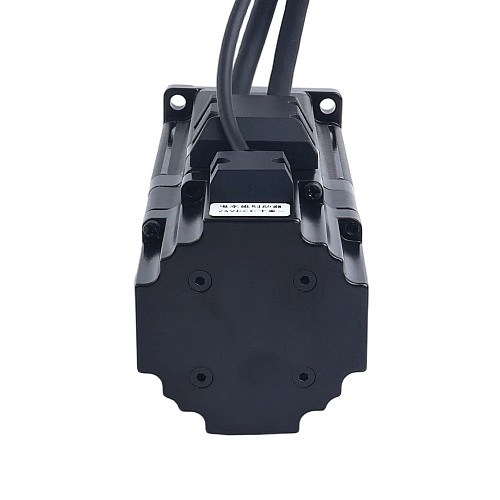

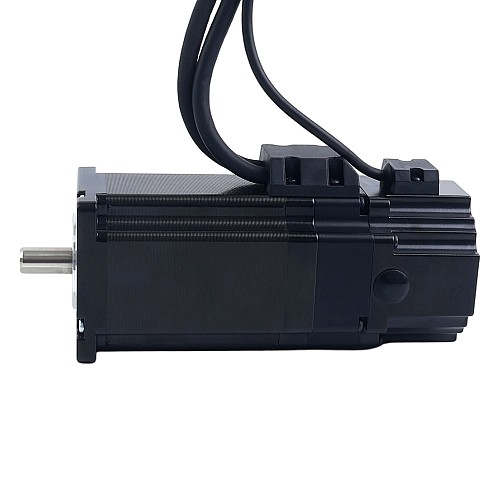

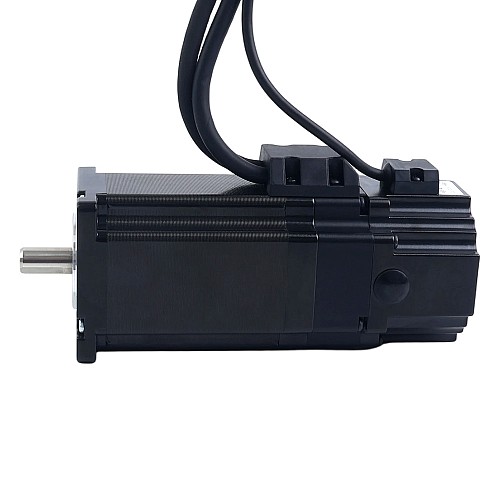

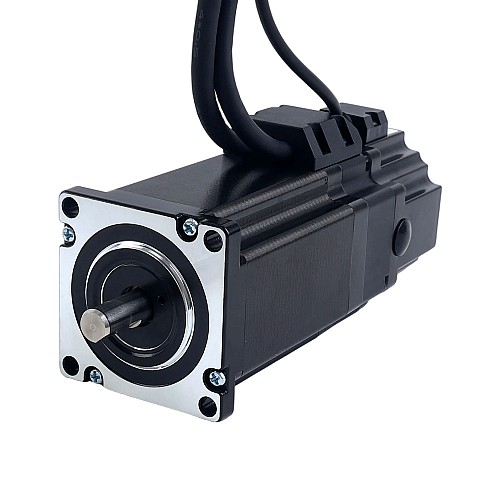

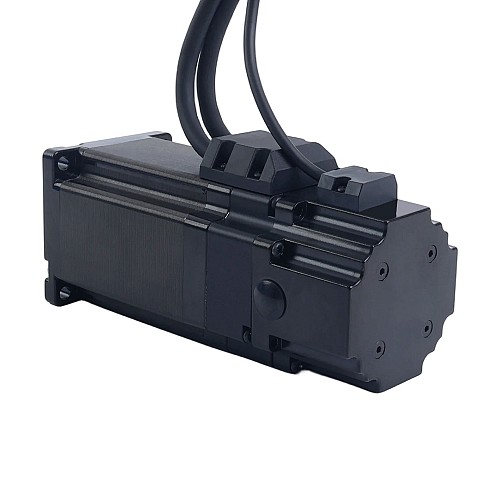

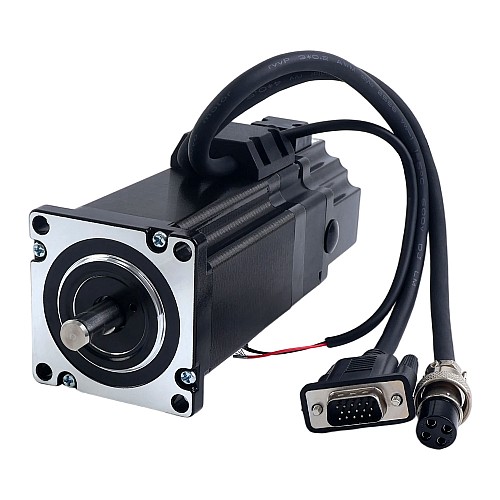

S Series Nema 24 Closed Loop Stepper Motor 3.0Nm(424.92oz.in) with 2.8Nm(396.51oz.in) Electromagnetic Brake

New

S Series Nema 24 Closed Loop Stepper Motor 3.0Nm(424.92oz.in) with 2.8Nm(396.51oz.in) Electromagnetic Brake

0 reviews - Write a review

C$110.94

5 + C$105.46

10 + C$100.51

50 + C$95.98

100 + C$91.85

In Stock: 10000
Model: 24HS34-5004D-E1000-B280
Gross Weight: 2.05kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a S series Nema 24 closed loop stepper motor with a holding torque of 3.0Nm(424.92oz.in) and rated current of 5.0A. Enquipped with a 1000ppr optical incremental encoder and a 24V 2.8Nm(396.51oz.in) electromagnetic brake, it combines the precision and reliability of closed-loop control with the safety and energy efficiency of a power-off brake. It is primarily used in automated equipment such as vertical axes and robots that require power-off locking and precise positioning.

Electrical Specification

Manufacturer Part Number: 24HS34-5004D-E1000-B280
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 3.0Nm(424.92oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.52ohms
Inductance: 2.1mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 146mm
Shaft Diameter: Φ10mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Brake Cable Length: 180mm
Motor Cable Length: 300mm
Encoder Cable Length: 300mm
Weight: 1.95kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Brake Connections

Red--24V+
Black--24V-
2.8Nm(396.51oz.in)

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	GND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	300
Inductance(mH)	2.1
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.52
Rated Current(A)	5
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.155
Brake Power(W)	3.72
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	280
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	146
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	10
Shaft Length(mm)	21
