S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR)

S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
Pre-order
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR) - 23HS30-2504D-E1000-C1 | StepperOnline CA
23HS30-2504D-E1000-C1
Shaft Diameter(mm)8
Shaft Length(mm)21
Output Signal Channels3
Holding Torque(Ncm)200
Question
Ordering & ComplianceFor purchasing
Min. order
5

Downloads

23HS30-2504D-E1000-C1_Full_Datasheet.pdfPDF · 170.27KB23HS30-2504D-E1000-C1.STEPSTEP · 6.59MBLog in to download
Same series
ModelShaft Diameter(mm)Shaft Length(mm)Output Signal ChannelsHolding Torque(Ncm)PriceStock
23HS22-2804-ME1K6.35213120C$33.23In stock
23HS22-4004-ME1K6.35213120C$29.65In stock
23HS22-4004D-E10008212120C$36.16In stock
23HS30-2504D-E1000-C18213200C$56.51Backorder
23HS30-2804-ME1K6.35213185C$40.93In stock
23HS30-5004-ME1K6.35213200C$35.00In stock
23HS30-5004D-E10008212200C$41.51In stock
23HS40-5004-ME1K8213300C$40.77In stock
23HS40-5004D-E10008222300C$50.17In stock
23HS40-5004D-E1K-1M58212300C$44.18In stock
23HS45-4204-ME1K10243300C$50.00In stock
23HS45-4204D-E10008212300C$52.23In stock
S Series Nema 23 Closed Loop Stepper Motor 2.0Nm(283.22oz.in) 3-Channel Encoder 1000PPR(4000CPR)
This is a Nema 23 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder rate... Read More
0 reviews • Write a review
from
C$56.51
5 + C$54.17
10 + C$52.03
50 + C$50.05
100 + C$48.21

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 5
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

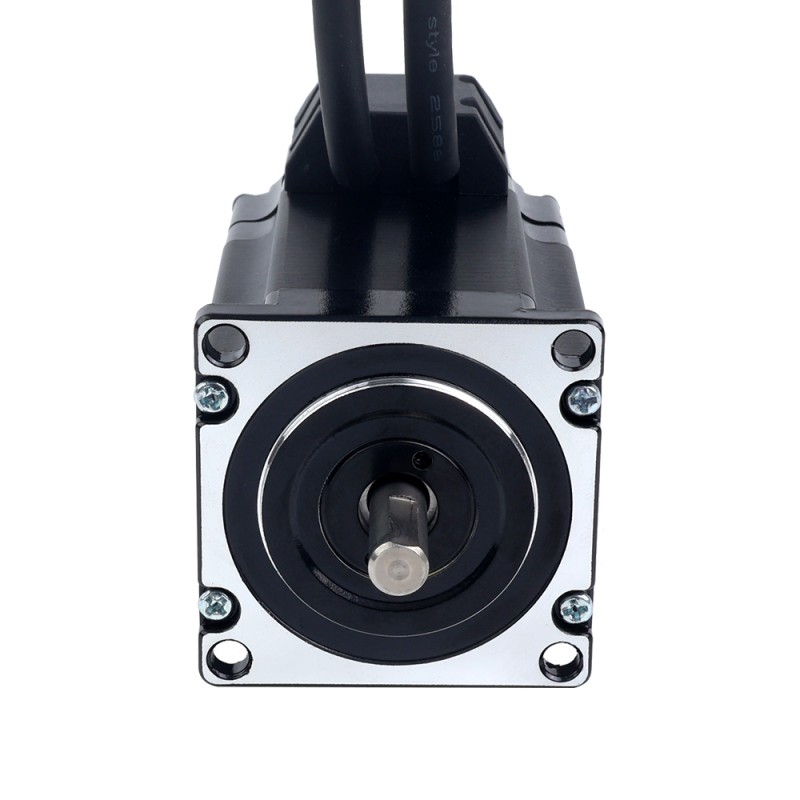

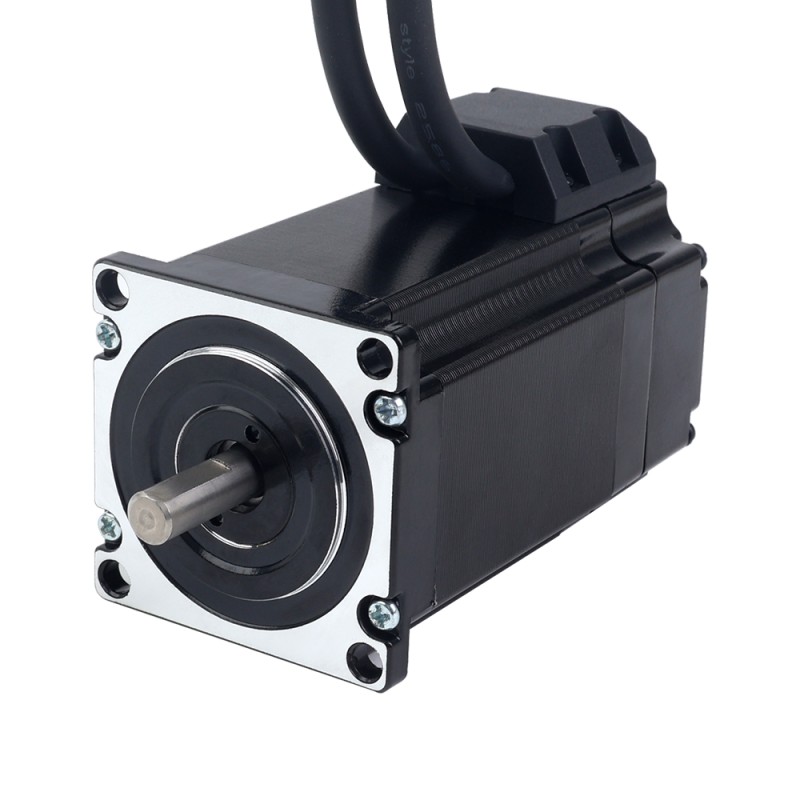

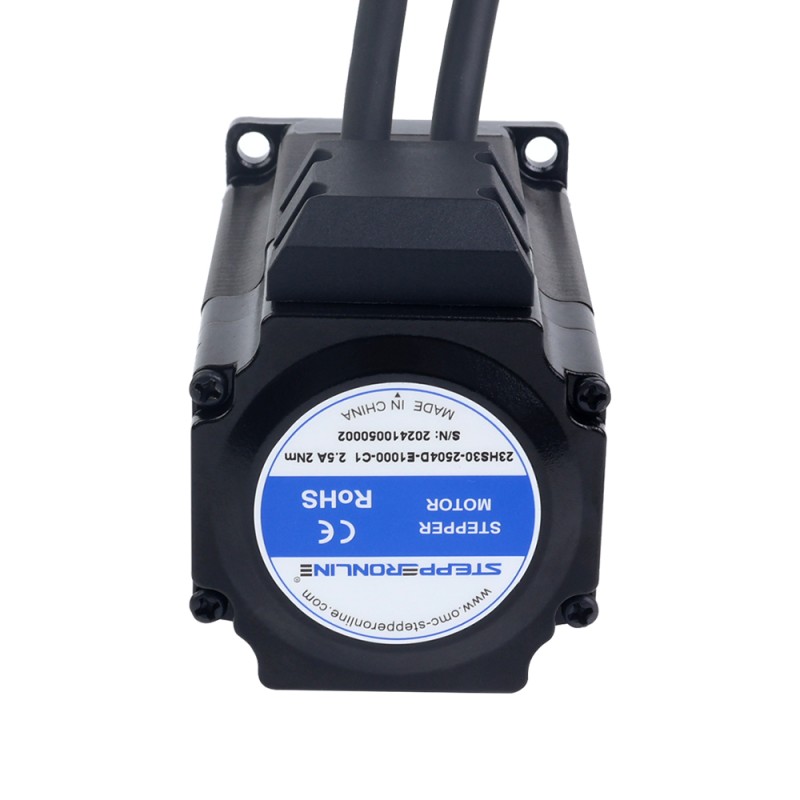

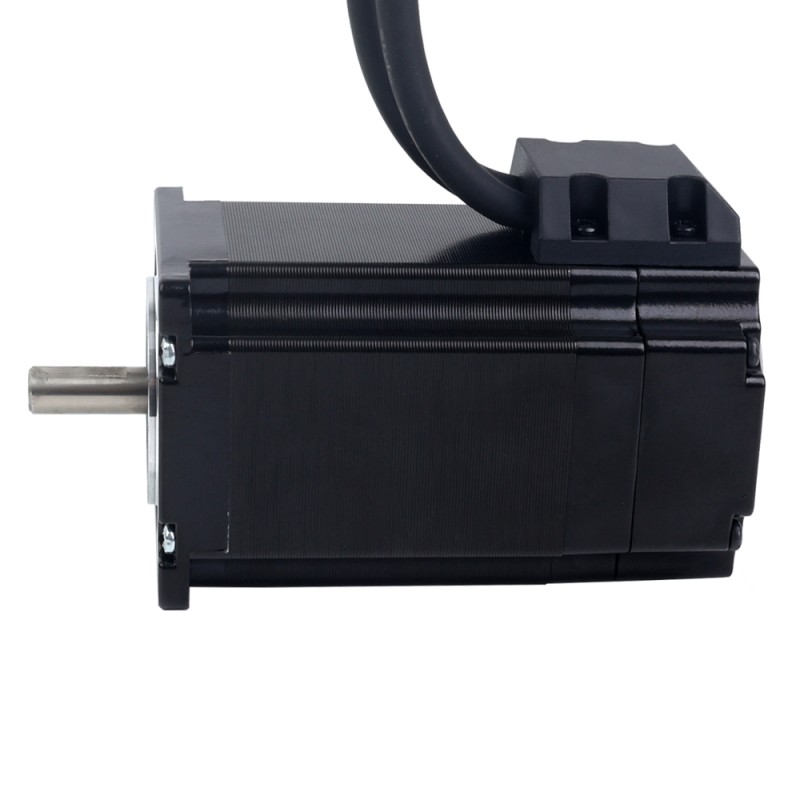

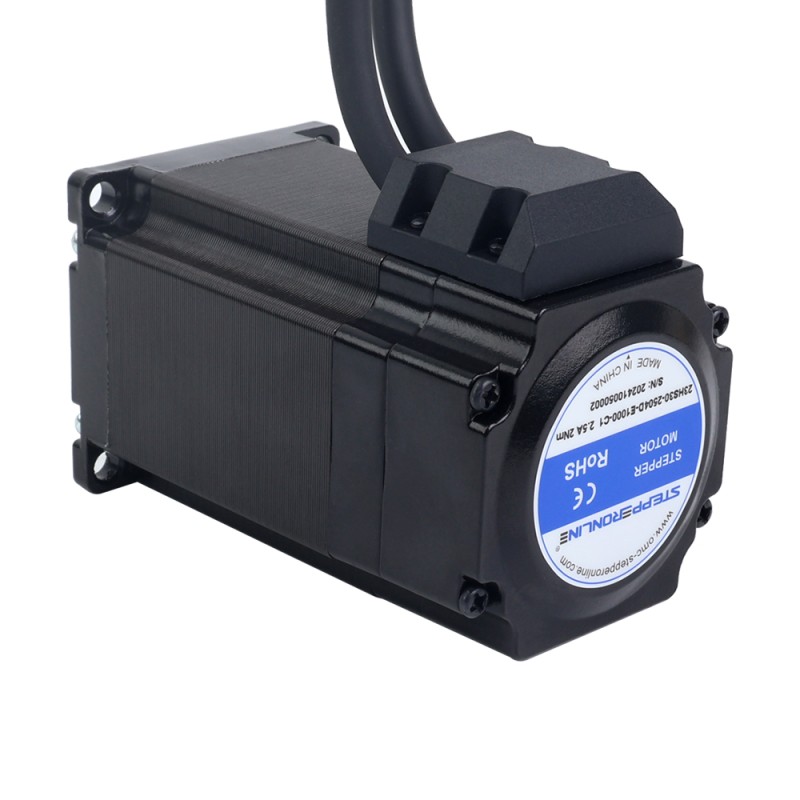

This is a Nema 23 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder rated at 2.5A, a 21mm shaft length, and a holding torque of 2.0Nm(283.22oz.in). Compared to open loop stepper motors, it offers higher precision, higher torque, lower motor heating, lower power consumption and better response to external factors.

Electrical Specification

  • Manufacturer Part Number: 23HS30-2504D-E1000-C1
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 2.0Nm(283.22oz.in)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 2.0ohms ± 10%
  • Inductance: 6.6mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 95mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-CUT Shaft Length: 16mm
  • Lead Length: 500mm
  • Weight: 1.17kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 3 channels
  • Supply Voltage Min: 4V
  • Supply Voltage Max: 5V
  • Output Current: 100mA
  • Output High Voltage: 5V
  • Output Low Voltage: 0.3V
  • Output Frequency Max: 60kHZ

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-
Color
Black
Green
Red
Blue

PIN
1
2
3
11
12
13
14
15
Encoder
EA+
VCC
GND
EB+
EB-
EA-
EZ+-
EZ-
Color
Black
Red
White
Yellow
Green
Blue
Brown
Gray
Product Type
Product Type Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 200
Holding Torque(oz.in) 283.22
Inductance(mH) 6.6
Output Circuit Type Differential
Output Signal Channels 3
Phase Resistance(ohms) 2.0
Rated Current(A) 2.5
Physical Specification
Body Length(mm) 95
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Product Series S Series
Shaft Diameter(mm) 8
Shaft Length(mm) 21

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Nema 23 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Motor Specification Manufacturer Part Number: 23HS45-4204D-E1000 Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 3.0Nm(424.83oz.in) ..
from
C$52.23
Add to Cart
Add to Wish List Compare this Product
Quickview
4.7m(185") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
4.7m(185") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
4.7m(185") Motor Extension Cable and 4.7m(185") Encoder Extension Cable for Nema 23 and 24 Closed Loop Stepper Motors. This Cable Kit included:1 x ..
from
C$34.63
Add to Cart
Add to Wish List Compare this Product
Quickview
Ultra-compact U-shaped Pre-wired Photomicrosensor EE-SX95
Ultra-compact U-shaped Pre-wired Photomicrosensor EE-SX95
This pre-wired, ultra-small size U-shaped EE-SX95 series sensor offers a output type of NPN and reliable sensing slot depth of 6.5mm. It can be mounte..
from
C$13.12
Add to Cart
Add to Wish List Compare this Product
Quickview

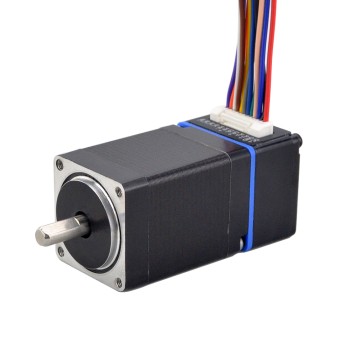

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated Closed Loop Stepper Servo Motor 24VDC 4096CPR
ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated Closed Loop Stepper Servo Motor 24VDC 4096CPR
Electrical Specifications Manufacturer Part Number: ESS11-01 Holding Torque: 7.4Ncm(10.48oz.in) Input Voltage: 24VDCInsulation Class: B 130°C[266..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Closed Loop Stepper Motor 14Ncm(19.83oz.in) with Encoder 1000PPR(4000CPR)
Nema 17 Closed Loop Stepper Motor 14Ncm(19.83oz.in) with Encoder 1000PPR(4000CPR)
This is a Nema 17 closed-loop stepper motor with a 1000PPR(4000CPR) incremental optical encoder, a rated current of 1.0A, and a holding torque of 0.14..
from
C$23.27
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Closed Loop Stepper Motor 42Ncm(59.48oz.in) with Encoder 1000PPR(4000CPR)
Nema 17 Closed Loop Stepper Motor 42Ncm(59.48oz.in) with Encoder 1000PPR(4000CPR)
This is a Nema 17 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder, a rated current of 1.5A, and a holding torque of 42Nc..
from
C$25.74
Add to Cart
Add to Wish List Compare this Product
Quickview

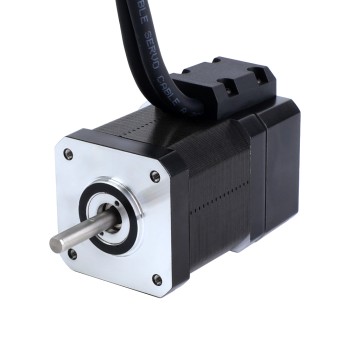

Nema 17 Closed Loop Stepper Motor 52Ncm(73.64oz.in) with Encoder 1000PPR(4000CPR)
