Name: SDR-75-12 | SDR-75-12 MEANWELL 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: SDR-75-12
Price: 37.04 CAD
Availability: InStock

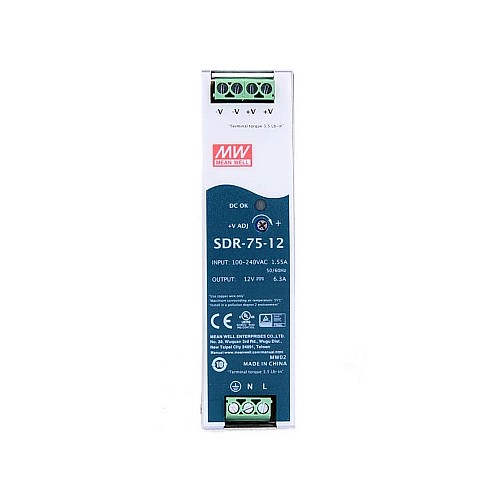

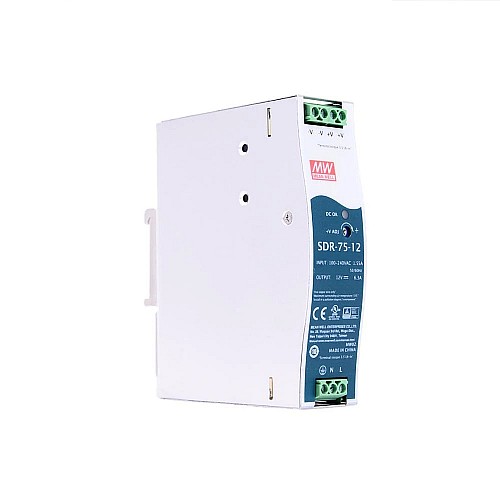

SDR-75-12 MEANWELL 75.6W 12VDC 6.3A 115/230VAC DIN Rail Power Supply

0 reviews - Write a review

C$37.04

5 + C$35.96

10 + C$34.94

50 + C$33.98

100 + C$33.06

In Stock: 10000
Brand: MEANWELL
Model: SDR-75-12
Gross Weight: 0.74kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
12V DC 6.3A output
AC input voltage range: 88 ~ 264VAC
Rated power: 75.6W
High efficiency 90% and low power dissipation
150% peak load capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

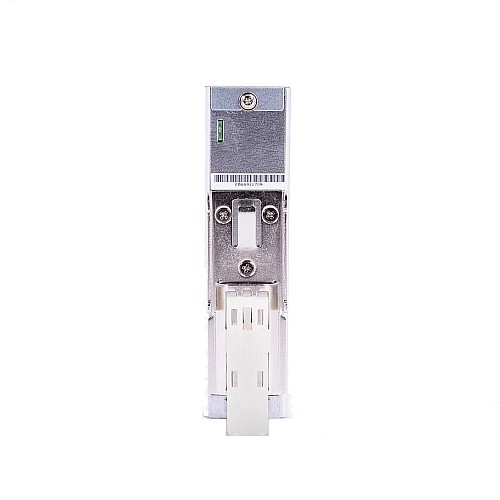

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Product Type
Product Type	DIN Rail Power Supply
Electrical Specification
Efficiency(%)	88.5%
Max. Output Current(A)	6.3
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	32 x 125.2 x 102 / 1.26 x 4.93 x 4.02
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	88 - 264 / 124 - 370
Output Voltage(VDC)	12
PFC Function	No
Power(W)	112.5
Physical Specification
Inventory Method	Dedicated Inventory
