Name: SDR-960-24 | SDR-960-24 MEANWELL 960W 24VDC 40A 230VAC With PFC Function DIN Rail Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: SDR-960-24
Price: 274.85 CAD
Availability: PreOrder

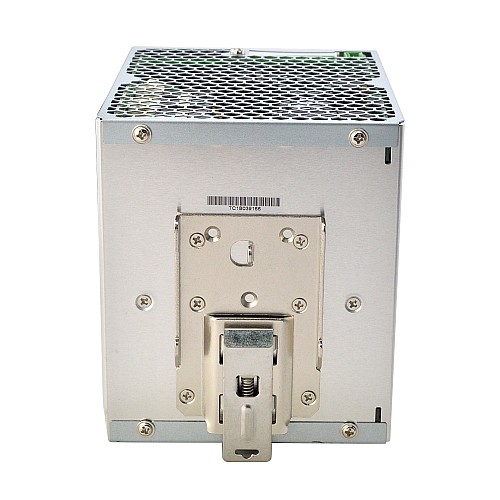

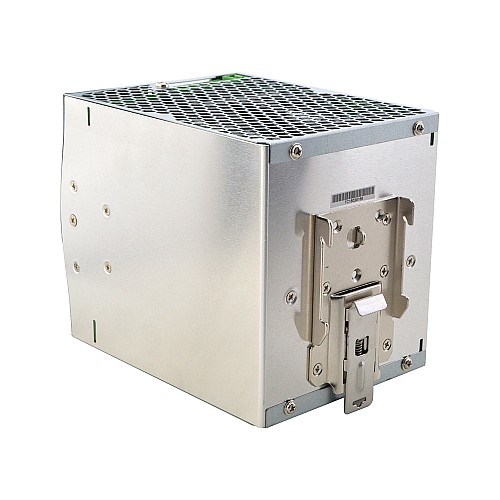

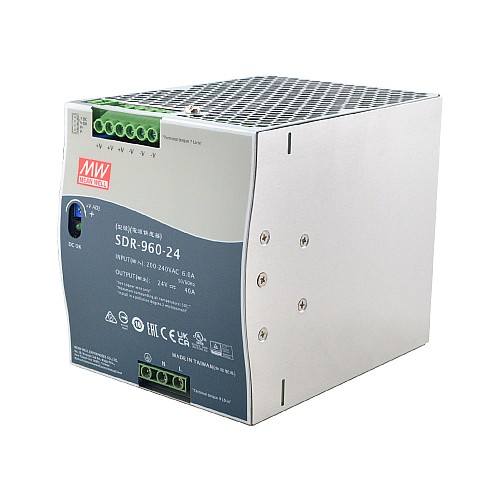

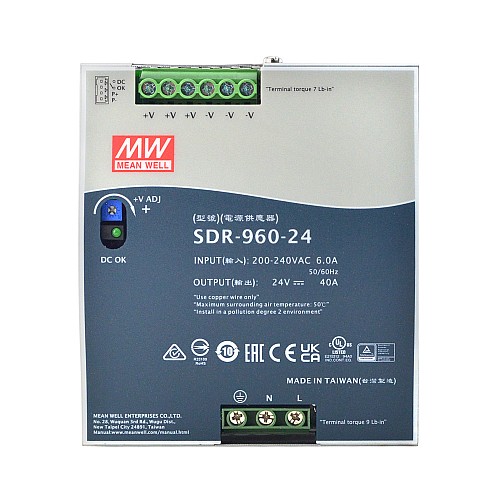

SDR-960-24 MEANWELL 960W 24VDC 40A 230VAC With PFC Function DIN Rail Power Supply

0 reviews - Write a review

C$274.85

5 + C$266.83

10 + C$259.25

50 + C$252.10

100 + C$245.34

In Stock: Pre-order
Brand: MEANWELL
Model: SDR-960-24
Gross Weight: 3.00kg
Certificated: ISO, CE, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 3

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
24V DC 40A output
AC input voltage range: 180 ~ 264VAC
Rated power: 960W
High efficiency 94% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Current sharing up to 3840W(3+1)
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	94%
Max. Output Current(A)	40
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	110 x 125.2 x 150
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	180 - 264 / 254 - 370
Output Voltage(VDC)	24
PFC Function	Yes
Power Type	DIN Rail Power Supply
Power(W)	960
Physical Specification
Inventory Method	Dedicated Inventory
