TP Series 1 Axis Closed Loop Stepper CNC Kit 72Ncm(101.98oz.in) Nema 17 Motor

1 reviews - Write a review

C$117.50

5 + C$110.38

10 + C$104.07

50 + C$98.45

100 + C$93.40

In Stock: 10000
Model: 1-CL42T-P07-V41
Gross Weight: 1.30kg
Certificated: ISO, CE

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

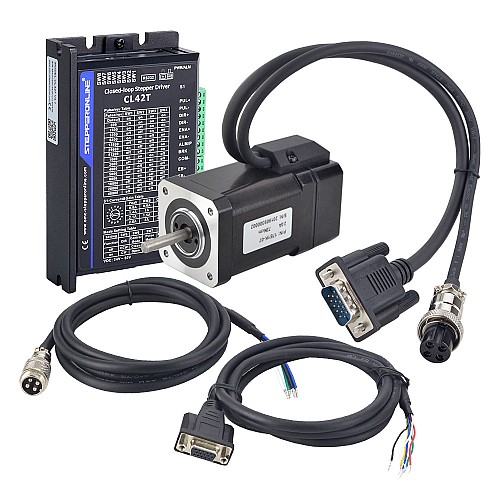

This CNC kit included:

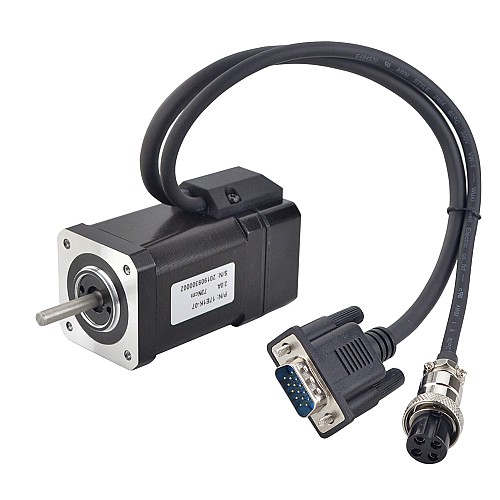

1 x 17E1K-07: P Series Nema 17 Closed Loop Stepper Motor 72Ncm/101.98oz.in with Encoder 1000PPR
1 x CL42T-V41: Closed Loop Stepper DriverV4.1 0-3.0A 24-48VDC for Nema 11, 14, 17 Stepper Motor

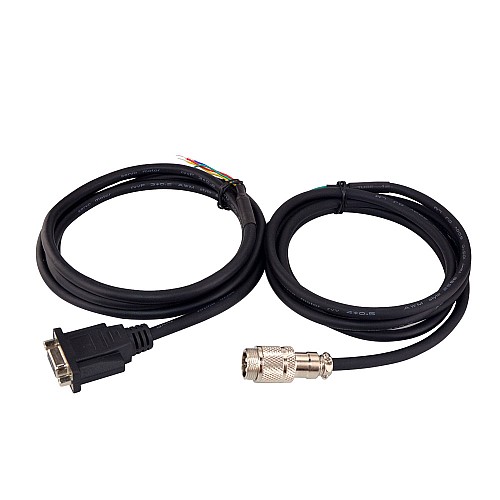

1 x CE2M: 1.7m(67") Long Encoder Extension Cable for Closed Loop Stepper Motor
1 x RV-4 AWG20 1.7m(67") Long Motor Extension Cable with GX16 Aviation Plug
1 x CABLE-PC-1: RS232 Debugging Cable

Motor Specification

Part Number: 17E1K-07
Number of phase: 2
Holding Torque: 72Ncm(101.98oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.75ohms
Inductance: 4.0mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Shaft Length: 15mm
Lead Length: 270mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Output Signal Channels: 2 channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Driver Specification

Output Peak Current: 0~3A
Input Voltage: +24~48VDC(Typical 24VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
RS232 debugging interface available
Low noise and vibration, smooth motion
Protections for over voltage, over current and position following error

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

Motor Extension Cable Connection

PIN	1	2	3	4
Color	Black	Green	Red	Blue

Encoder Extension Cable Connection

PIN	2	3	1	13	11	12
Color	Red	White	Black	Blue	Yellow	Green

PLEASE NOTE: The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	72
Holding Torque(oz.in)	101.98
Input Voltage Reference(V)	24 - 48DC
Number of Axes	1
Output Signal Channels	2
Rated Current(A)	2.0
Physical Specification
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	No
Product Series	TP Series
Shaft Diameter(mm)	5
Shaft Length(mm)	24

File	Size
17E1K-07_Full_Datasheet.pdf	172.38KB	Download
17E1K-07.STEP	7.51MB	Download
CL42T-V41.STEP	3.68MB	Download
MotionStudio_v1.4.10.rar	14.35MB	Download
CL42T-V41_Manual.pdf	937.98KB	Download
17E1K-07_Torque_Curve.pdf	199.71KB	Download
