Used - Dual Shaft Nema 17 Bipolar 0.9deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires w/ 0.085m Cable

New Used – 80% New -51 %

Used - Dual Shaft Nema 17 Bipolar 0.9deg 44Ncm(62.3oz.in) 1.68A 42x42x48mm 4 Wires w/ 0.085m Cable

0 reviews - Write a review

C$17.17

C$8.38

In Stock: 200
Model: 17HM19-1684D-USED
Gross Weight: 0.45kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

This model is dual shaft Nema 17 Bipolar stepper motor,it with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each phase draws 1.68A, with holding torque 44Ncm(62.3oz.in).

Electrical Specification

Manufacturer Part Number: 17HM19-1684D
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Inductance: 4.10mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Rear Shaft Length:13mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 85mm
Weight: 350g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

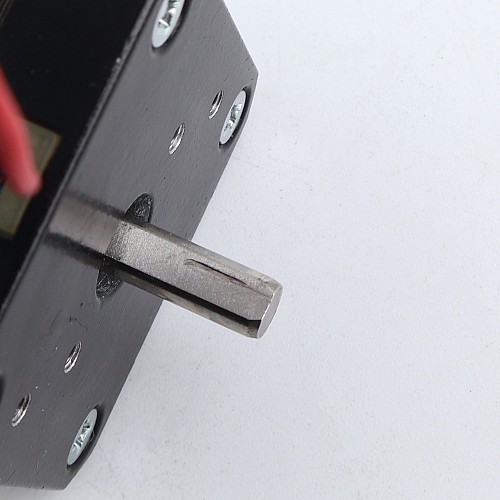

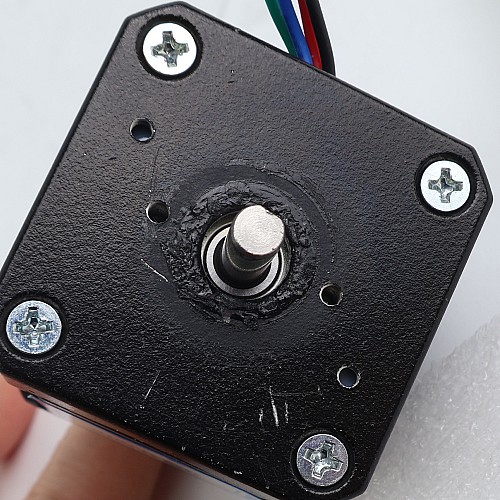

Product status note: the motor has dents, indentations and scratches; the wires have been shortened to 0.085m.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	44
Holding Torque(oz.in)	62.3
Inductance(mH)	4.1
Phase Resistance(ohms)	1.65
Rated Current(A)	1.68
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	350

Motor Shaft
Cable
Connector
Encoder
Brake
Gearbox

File	Size
17HM19-1684D.STEP	818.8KB	Download
17HM19-1684D_Torque_Curve.pdf	140.78KB	Download
17HM19-1684D_Full_Datasheet.pdf	125.82KB	Download

Tags: Output Shaft Type: D, Shaft Diameter(mm): 5, Shaft Length(mm): 24, No. of Lead: 4, Lead Length(mm): 500, Weight(g): 350, Single Shaft/Dual Shaft: Dual Shaft, Holding Torque(Ncm): 44, Rated Current(A): 1.68, Holding Torque(oz.in): 62.3, Bipolar/Unipolar: Bipolar, Step Angle(deg.): 0.9, Phase Resistance(ohms): 1.65, Inductance(mH): 4.1, Body Length(mm): 48, Frame Size(mm): Nema 17 (42 x 42), Product Type: Hybrid Stepper Motor, Product Series: S, Has Torque/Thrust Curve?: Yes, Inventory Method: Dedicated Inventory
